What horsepower is the Quincy QT-10 Duplex (200 gal, QT2 pump) air compressor?

The Quincy QT-10 Duplex (200 gal, QT2 pump) is rated at 20 HP.

How much air does the Quincy QT-10 Duplex (200 gal, QT2 pump) produce?

The Quincy QT-10 Duplex (200 gal, QT2 pump) delivers 72 SCFM at 175 PSI.

What size tank does the Quincy QT-10 Duplex (200 gal, QT2 pump) have?

The Quincy QT-10 Duplex (200 gal, QT2 pump) has a 200-gallon horizontal tank.

Is the Quincy QT-10 Duplex (200 gal, QT2 pump) single-stage or two-stage?

The Quincy QT-10 Duplex (200 gal, QT2 pump) is a two-stage compressor.

What voltage does the Quincy QT-10 Duplex (200 gal, QT2 pump) require?

The Quincy QT-10 Duplex (200 gal, QT2 pump) runs on 208/230/460.

What is the duty cycle of the Quincy QT-10 Duplex (200 gal, QT2 pump)?

The Quincy QT-10 Duplex (200 gal, QT2 pump) has a 100% duty cycle.

What is the Quincy QT-10 Duplex (200 gal, QT2 pump) best for?

The Quincy QT-10 Duplex (200 gal, QT2 pump) is best suited for Production paint, mid-size manufacturing, redundant industrial duty.

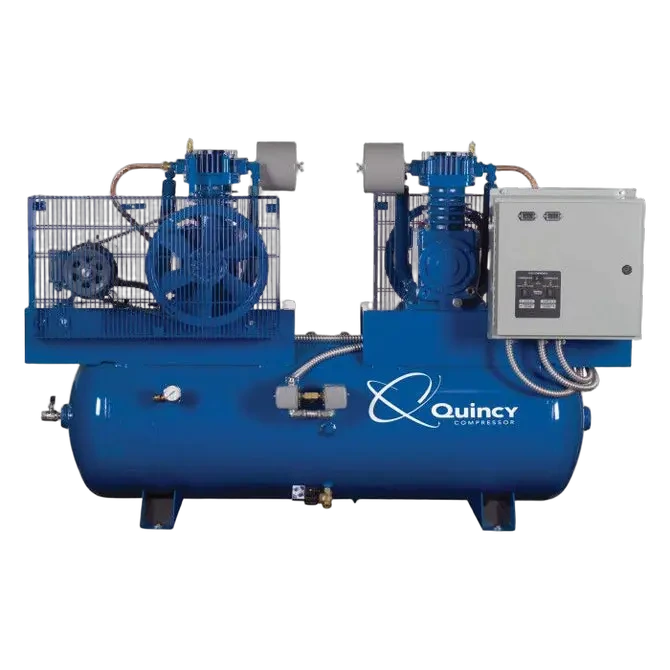

Quincy QT-10 Duplex (200 gal, QT2 pump) – Air Compressor

The Quincy QT-10 Duplex couples two QT2 splash-lubricated two-stage pumps and two 10 HP motors on a 200-gallon ASME horizontal tank for 72 ACFM combined at 175 PSI (36 ACFM per pump). Pump RPM is 682, weight roughly 2,090 lbs. The duplex panel auto-alternates between pumps for even wear and brings the lag pump online for peak demand. Aimed at production paint lines, larger automotive shops, and operations that justify USA-made cast-iron iron Quincy build quality plus redundancy. Footprint is 76 in L by 56 in W by 64 in H.

CFM

72 @ 175 PSI

Duty

100% continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

3.60CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$201$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderQT2 cast iron pump x 2

Pump RPM682 rpm

Lubricationsplash

OilISO 100 non-detergent compressor oil

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM72 @ 175 PSI

CFM / HP3.60

Cut-in / out—

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

Savings with Compressor Controller · yearlyEst. $1,450–$2,647

ELECTRICAL & FORM

Serviceelectric

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlduplex panel with NEMA 1 enclosure, lead/lag

Startermagnetic with alternator

Weight2090 lb

FormHorizontal · 200 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight2090 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 40 · 20 HP

Sizing & pricevs. 40 in class

SCFM @ 20 HP72cfm
58median 7092
+2.9% vs. median
Average price$14,483
$7,848median $15,562$39k
-6.9% vs. median

Efficiency vs. peersvs. 40 in class

CFM per HP3.6cfm/hp
2.92median 3.54.61
+2.9% vs. median
Price per CFM$201$/scfm
$98median $202$589
-0.5% vs. median
