What horsepower is the Quincy 453DS80VCB46 air compressor?

The Quincy 453DS80VCB46 is rated at 5 HP.

How much air does the Quincy 453DS80VCB46 produce?

The Quincy 453DS80VCB46 delivers 17 SCFM at 175 PSI.

What size tank does the Quincy 453DS80VCB46 have?

The Quincy 453DS80VCB46 has a 80-gallon vertical tank.

Is the Quincy 453DS80VCB46 single-stage or two-stage?

The Quincy 453DS80VCB46 is a two-stage compressor.

What voltage does the Quincy 453DS80VCB46 require?

The Quincy 453DS80VCB46 runs on 460V 3-Phase.

What is the duty cycle of the Quincy 453DS80VCB46?

The Quincy 453DS80VCB46 has a 100% duty cycle.

What is the Quincy 453DS80VCB46 best for?

The Quincy 453DS80VCB46 is best suited for commercial.

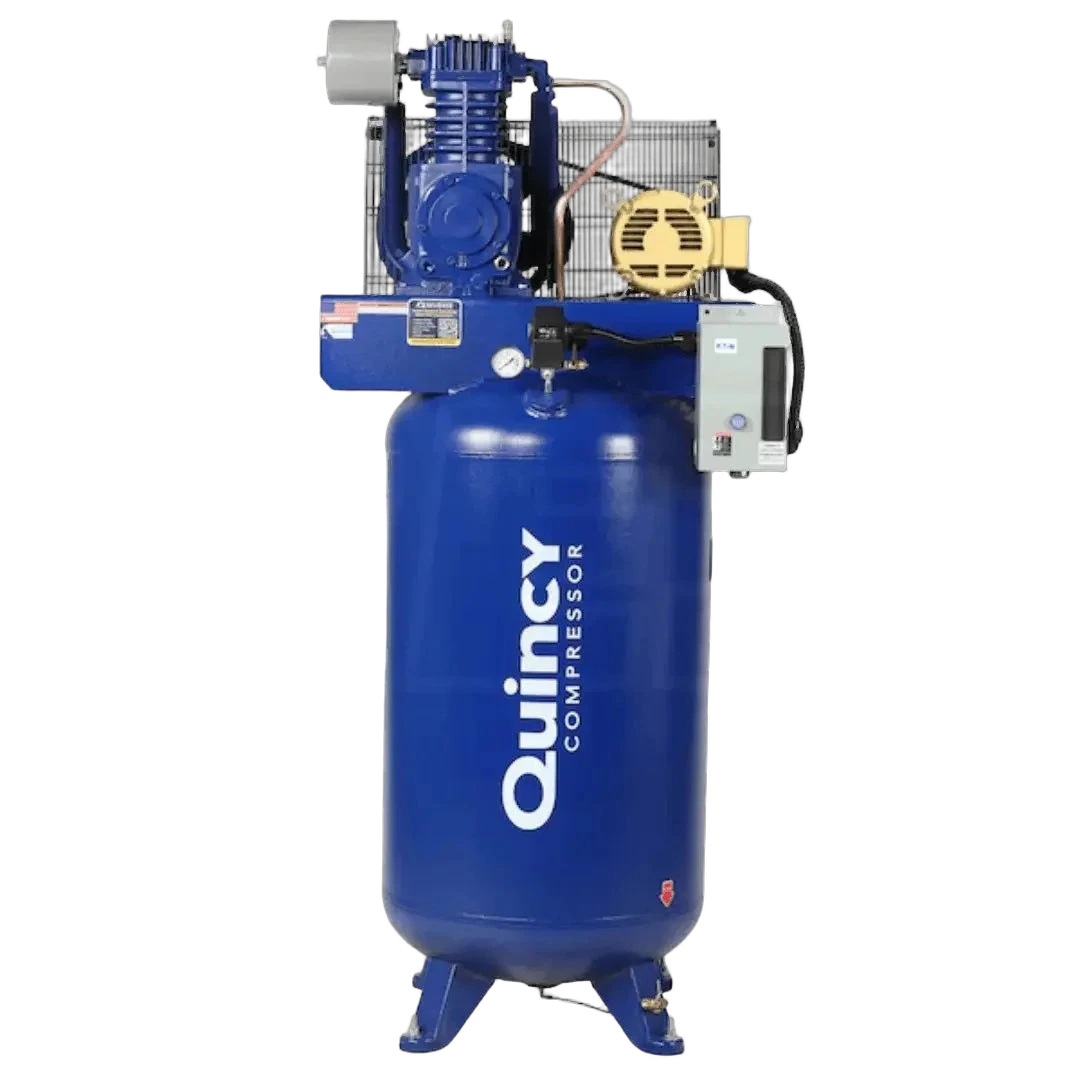

Quincy 453DS80VCB46 – 5 HP 80-Gal Vertical Air Compressor

Quincy 453DS80VCB46 is a 5 HP two-stage QT Pro reciprocating air compressor on an 80-gallon vertical ASME tank, delivering 17.2 CFM at 175 PSI, wired 460V three-phase. The QT-1 splash-lubricated pump runs at 942 RPM; cast-iron cylinders, stainless-steel valves, magnetic starter included. Shipping weight 680 lb, dimensions 37″ W x 74″ H x 24″ D. 1-year standard warranty, extendable to 3 years on pump.

CFM

17 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.40CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$201$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM942 rpm

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM17 @ 175 PSI

CFM / HP3.40

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage460V 3-Phase

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight680 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet1/2 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 157 · 5 HP

Sizing & pricevs. 157 in class

SCFM @ 5 HP17cfm
10median 17.238
-1.2% vs. median
Average price$3,565
$962median $4,178$17k
-14.7% vs. median

Efficiency vs. peersvs. 157 in class

CFM per HP3.4cfm/hp
2.08median 3.447.64
-1.2% vs. median
Price per CFM$210$/scfm
$77median $228$864
-7.8% vs. median
