What horsepower is the Quincy 2153DS12HCA20 air compressor?

The Quincy 2153DS12HCA20 is rated at 15 HP.

How much air does the Quincy 2153DS12HCA20 produce?

The Quincy 2153DS12HCA20 delivers 51 SCFM at 175 PSI.

What size tank does the Quincy 2153DS12HCA20 have?

The Quincy 2153DS12HCA20 has a 120-gallon horizontal tank.

Is the Quincy 2153DS12HCA20 single-stage or two-stage?

The Quincy 2153DS12HCA20 is a two-stage compressor.

What voltage does the Quincy 2153DS12HCA20 require?

The Quincy 2153DS12HCA20 runs on 208V.

Is the Quincy 2153DS12HCA20 oil-free or oil-lubricated?

The Quincy 2153DS12HCA20 is oil-lubricated.

What is the duty cycle of the Quincy 2153DS12HCA20?

The Quincy 2153DS12HCA20 has a 100% duty cycle.

What is the Quincy 2153DS12HCA20 best for?

The Quincy 2153DS12HCA20 is best suited for Three-phase continuous shop air for production auto/fleet facilities and light manufacturing on 208V power..

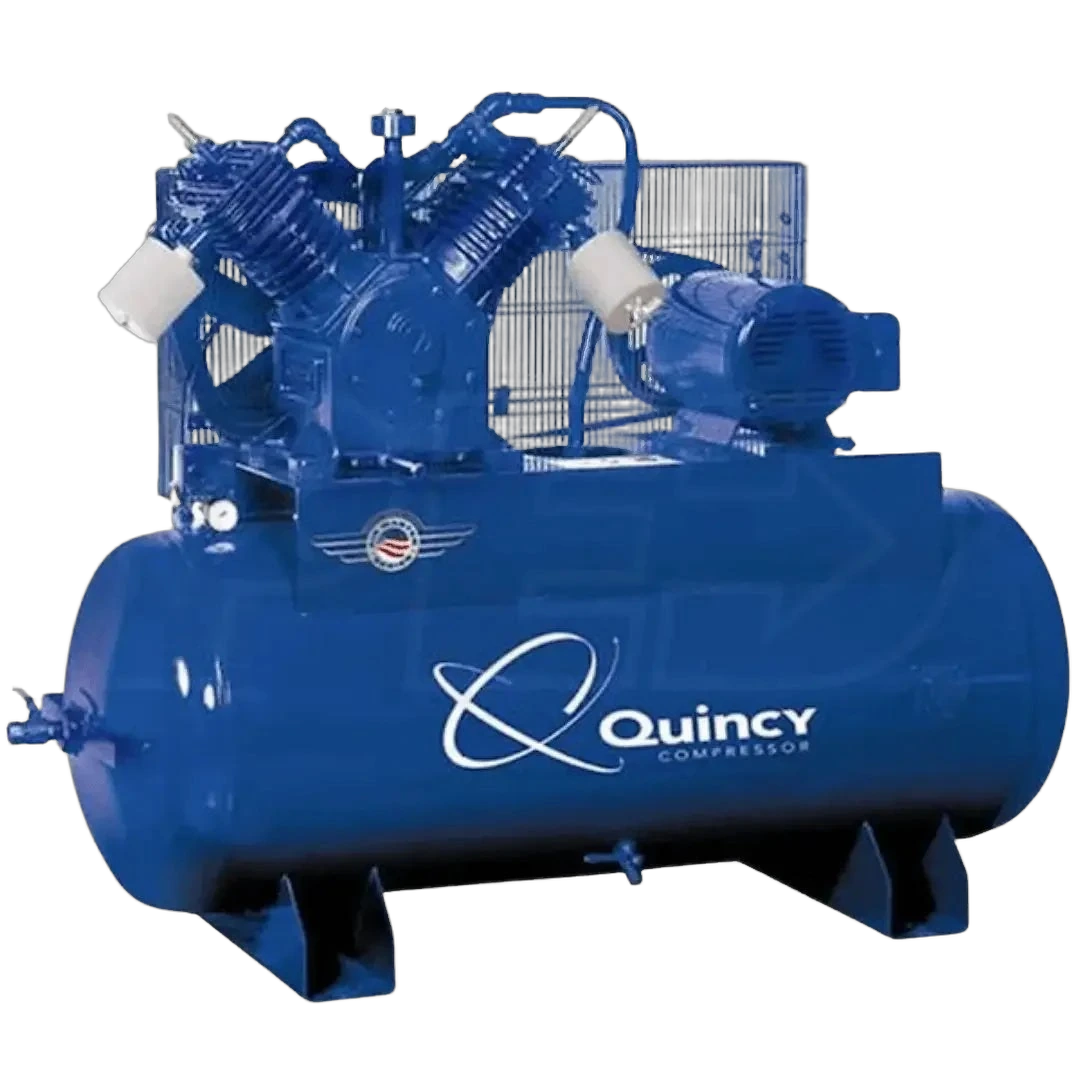

Quincy 2020040886 – 15 HP 120-Gallon 2-Stage Air Compressor

Quincy QT-15: 15HP two-stage splash-lube, 120-gal horizontal tank, 51 SCFM @ 175 PSI, 208V 3-phase, cast-iron pump with magnetic starter.

CFM

51 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.40CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$157$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderTwo-stage 4-cylinder

Pump RPM923 rpm

Lubricationoil-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM51 @ 175 PSI

CFM / HP3.40

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

Savings with Compressor Controller · yearlyEst. $1,087–$1,985

ELECTRICAL & FORM

Serviceelectric

Voltage208V

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight995 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 83 · 15 HP

Sizing & pricevs. 83 in class

SCFM @ 15 HP51cfm
17median 51111
0% vs. median
Average price$8,147
$4,621median $9,585$25k
-15% vs. median

Efficiency vs. peersvs. 83 in class

CFM per HP3.4cfm/hp
1.15median 3.47.44
0% vs. median
Price per CFM$163$/scfm
$96median $188$443
-13.8% vs. median
