What horsepower is the Quincy 3103D12VCA23M air compressor?

The Quincy 3103D12VCA23M is rated at 10 HP.

How much air does the Quincy 3103D12VCA23M produce?

The Quincy 3103D12VCA23M delivers 35 SCFM at 175 PSI.

What size tank does the Quincy 3103D12VCA23M have?

The Quincy 3103D12VCA23M has a 120-gallon vertical tank.

Is the Quincy 3103D12VCA23M single-stage or two-stage?

The Quincy 3103D12VCA23M is a two-stage compressor.

What voltage does the Quincy 3103D12VCA23M require?

The Quincy 3103D12VCA23M runs on 230.

Is the Quincy 3103D12VCA23M oil-free or oil-lubricated?

The Quincy 3103D12VCA23M is oil-lubricated.

What is the duty cycle of the Quincy 3103D12VCA23M?

The Quincy 3103D12VCA23M has a 100% duty cycle.

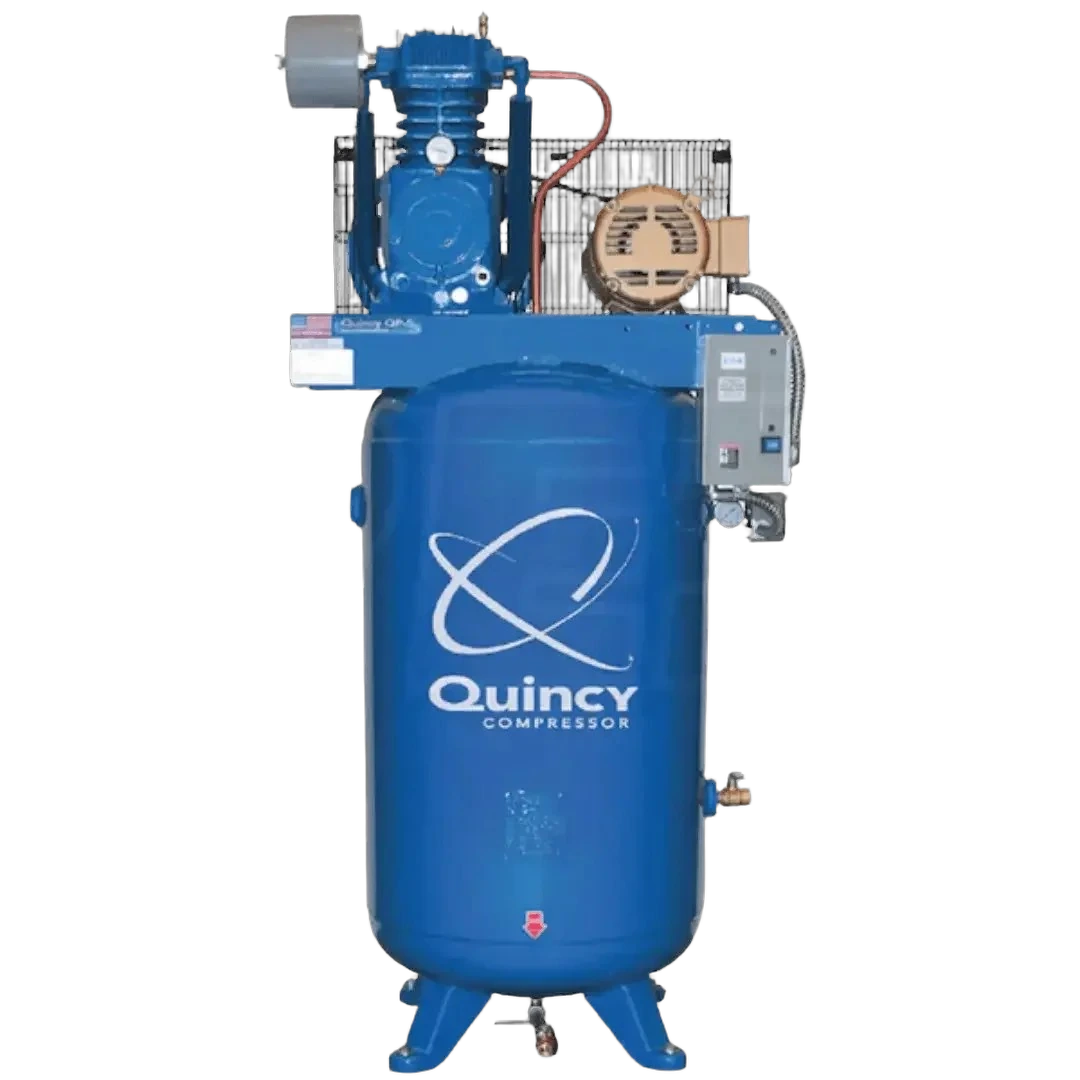

Quincy 2020040796 – 10 HP 120-Gallon 2-Stage Air Compressor

Quincy 3103D12VCA23M is a 10.00-HP two-stage oil-lubricated reciprocating compressor (3000-Series series) delivering 35.00 SCFM at 175 PSI on a 120.0-gallon vertical simplex tank, wired for 230. Shipping weight: 850 lb. Rated at 100% duty cycle. List price approximately $10,308.00. Mid-range simplex unit well suited for production shops, automotive service bays, and general industrial air supply requiring steady output. MPN: 2020040796.

CFM

35 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.50CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$284$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM968 rpm

Lubricationoil-lubricated

Oil—

Sump—

Pump life60,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM35 @ 175 PSI

CFM / HP3.50

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight850 lb

FormVertical · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP35cfm
17median 34.279
+2.3% vs. median
Average price$9,927
$3,555median $7,494$27k
+32.5% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.5cfm/hp
1.72median 3.427.96
+2.3% vs. median
Price per CFM$284$/scfm
$103median $210$517
+34.5% vs. median
