What horsepower is the Quincy 2020040784 air compressor?

The Quincy 2020040784 is rated at 10 HP.

How much air does the Quincy 2020040784 produce?

The Quincy 2020040784 delivers 35 SCFM at 175 PSI.

What size tank does the Quincy 2020040784 have?

The Quincy 2020040784 has a 120-gallon tank.

Is the Quincy 2020040784 single-stage or two-stage?

The Quincy 2020040784 is a two-stage compressor.

What voltage does the Quincy 2020040784 require?

The Quincy 2020040784 runs on 230.

What is the duty cycle of the Quincy 2020040784?

The Quincy 2020040784 has a 100% duty cycle.

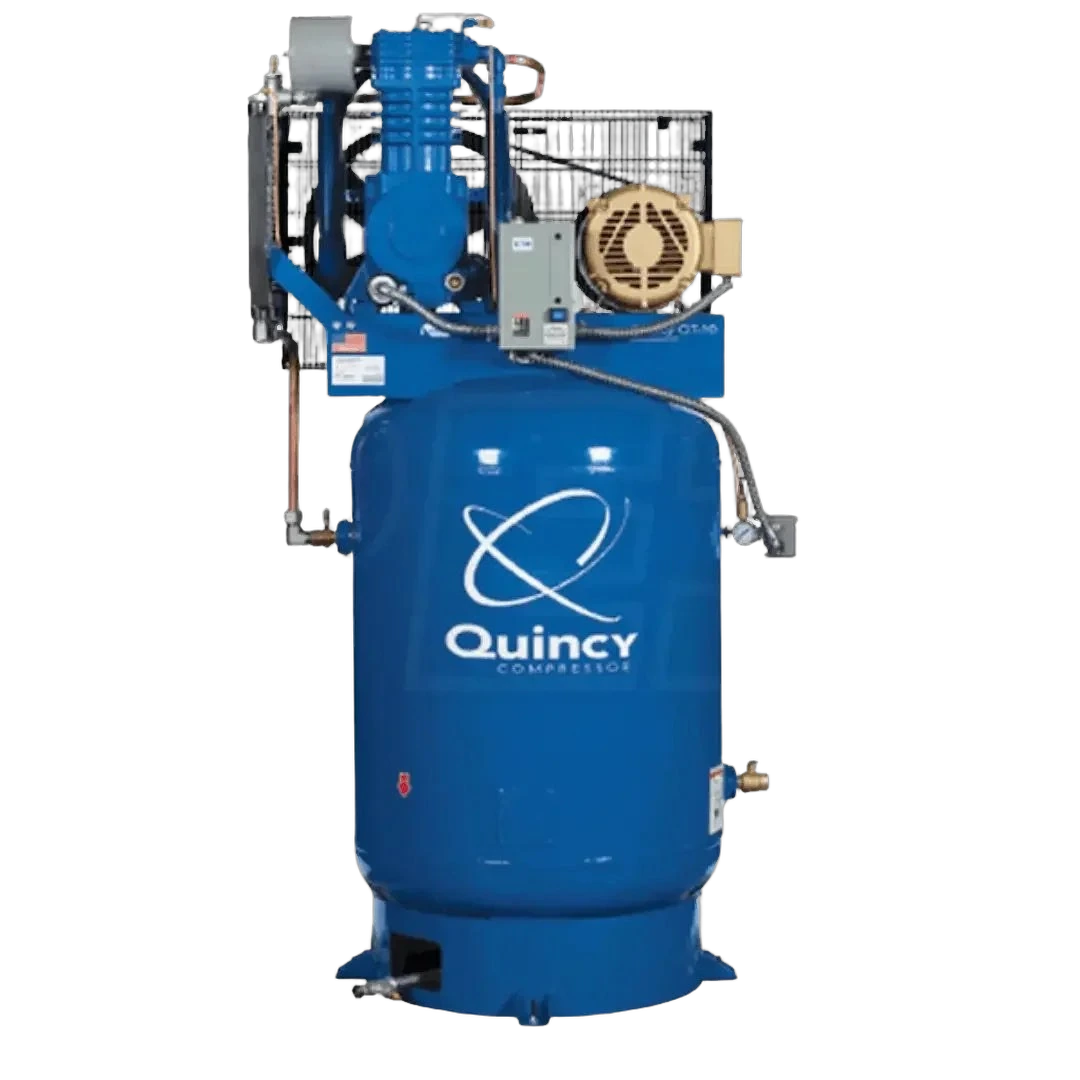

Quincy 2020040784 – 10 HP 120-Gallon 2-Stage Air Compressor

Quincy 2020040784 is a 10 HP two-stage splash-lubricated reciprocating air compressor delivering 35 SCFM at 175 PSI on a 120-gallon simplex tank, driven by an electric motor wired for 230V three-phase. Shipping weight: 1000 lb. Rated at 100% duty cycle. List price approximately $8,102.00. This electric Quincy QT MAX 10 is a mid-range simplex unit well suited for production shops, automotive service bays, and general industrial air supply requiring steady output.

CFM

35 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.50CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$223$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM968 rpm

Lubricationsplash-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM35 @ 175 PSI

CFM / HP3.50

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1000 lb

Form— · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP35cfm
17median 34.279
+2.3% vs. median
Average price$7,952
$3,555median $7,494$27k
+6.1% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.5cfm/hp
1.72median 3.427.96
+2.3% vs. median
Price per CFM$223$/scfm
$103median $210$517
+5.7% vs. median
