What horsepower is the Quincy 2020040725 air compressor?

The Quincy 2020040725 is rated at 7.5 HP.

How much air does the Quincy 2020040725 produce?

The Quincy 2020040725 delivers 22.6 SCFM at 175 PSI.

What size tank does the Quincy 2020040725 have?

The Quincy 2020040725 has a 80-gallon tank.

Is the Quincy 2020040725 single-stage or two-stage?

The Quincy 2020040725 is a two-stage compressor.

What voltage does the Quincy 2020040725 require?

The Quincy 2020040725 runs on 208/3ph.

What is the duty cycle of the Quincy 2020040725?

The Quincy 2020040725 has a 100% duty cycle.

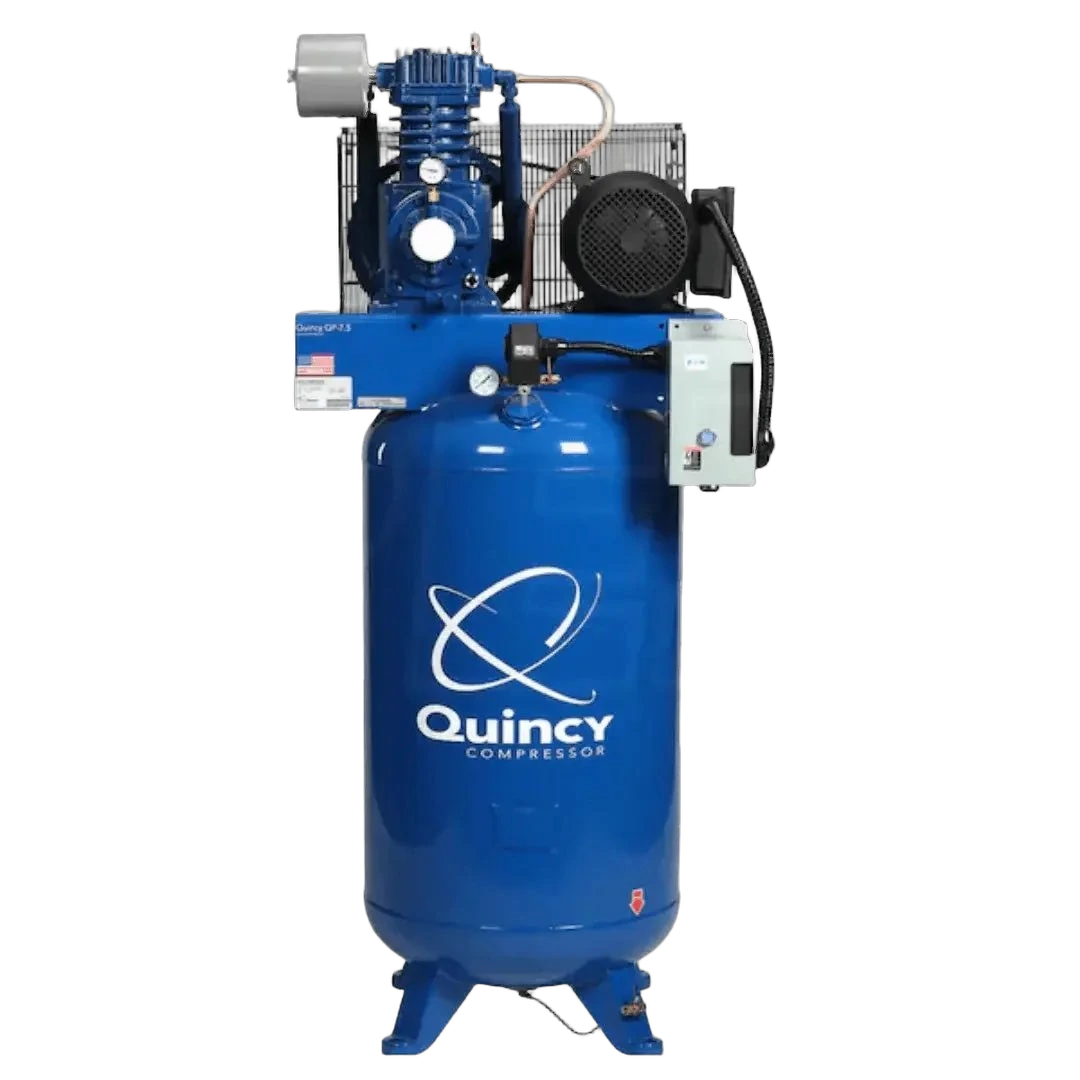

Quincy 2020040725 – 7.5 HP 80-Gallon 2-Stage Air Compressor

Quincy 2020040725 is a 7.50-HP two-stage splash-lubricated reciprocating compressor delivering 22.60 SCFM at 175 PSI on a 80.0-gallon simplex tank, wired for 208/3ph (gas-powered). Shipping weight: 720 lb. Rated at 100% duty cycle. List price approximately $4,971.00. Compact simplex unit for light-to-medium shop air, maintenance bays, and intermittent industrial or contractor applications.

7.50

CFM

22.6 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.01CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$212$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM1026 rpm

Lubricationsplash-lubricated

Oil—

Sump—

Pump life50,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM22.6 @ 175 PSI

CFM / HP3.01

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage208/3ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight720 lb

Form— · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP22.6cfm
20median 2457
-5.8% vs. median
Average price$4,788
$1,698median $5,117$19k
-6.4% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP3.01cfm/hp
2.67median 3.27.65
-5.8% vs. median
Price per CFM$212$/scfm
$73median $208$632
+1.4% vs. median
