What horsepower is the Quincy 471CS80VCB air compressor?

The Quincy 471CS80VCB is rated at 7.5 HP.

How much air does the Quincy 471CS80VCB produce?

The Quincy 471CS80VCB delivers 22.6 SCFM at 175 PSI.

What size tank does the Quincy 471CS80VCB have?

The Quincy 471CS80VCB has a 80-gallon vertical tank.

Is the Quincy 471CS80VCB single-stage or two-stage?

The Quincy 471CS80VCB is a two-stage compressor.

What voltage does the Quincy 471CS80VCB require?

The Quincy 471CS80VCB runs on 230V.

Is the Quincy 471CS80VCB oil-free or oil-lubricated?

The Quincy 471CS80VCB is oil-flooded.

What is the duty cycle of the Quincy 471CS80VCB?

The Quincy 471CS80VCB has a 100% duty cycle.

What is the Quincy 471CS80VCB best for?

The Quincy 471CS80VCB is best suited for Single-phase continuous shop air for small auto/fleet shops and serious garages running impact tools and air sanders..

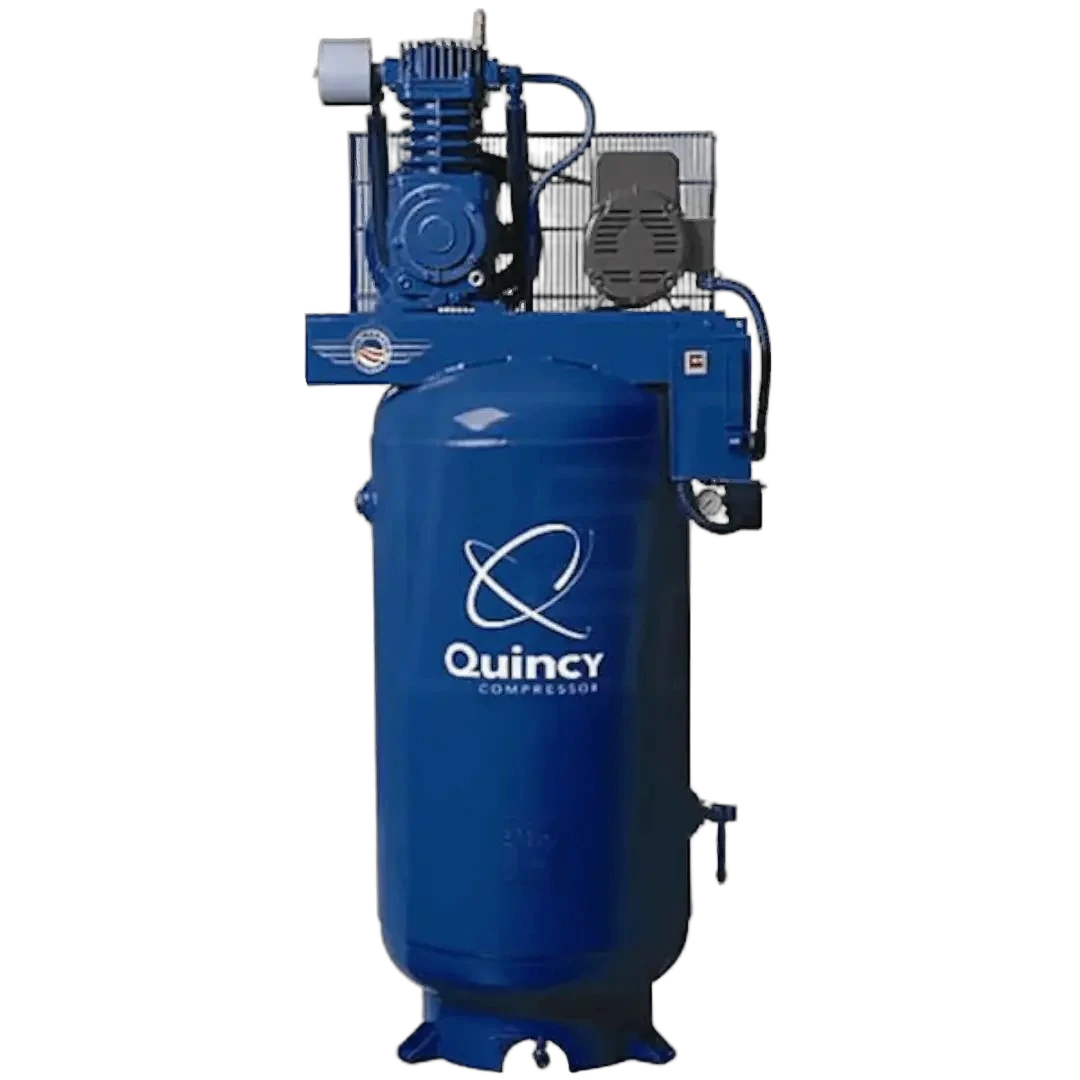

Quincy 2020040716 – 7.5 HP 80-Gallon 2-Stage Air Compressor

Quincy 471CS80VCB is a 7.50 HP two-stage simplex air compressor delivering 22.60 CFM @ 175 PSI, 80.0-gallon tank, 230V. Part of the 400-Series series. oil-flooded-lubricated pump. 100% duty cycle. shipping weight 720 lb. Saylor-Beall suspended retail distribution in 2022; pricing available through authorized dealers only. Designed for industrial and commercial shop applications requiring continuous-duty compressed air. The cast-iron construction and two-stage pump design provide extended service life in demanding environments. Manufacturer part number: 2020040716.

7.50

CFM

22.6 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.01CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$155$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderTwo-stage

Pump RPM1026 rpm

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM22.6 @ 175 PSI

CFM / HP3.01

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage230V

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight720 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 182 · 7.5 HP

Sizing & pricevs. 182 in class

SCFM @ 7.5 HP22.6cfm
20median 2457
-5.8% vs. median
Average price$3,551
$1,698median $5,117$19k
-30.6% vs. median

Efficiency vs. peersvs. 182 in class

CFM per HP3.01cfm/hp
2.67median 3.27.65
-5.8% vs. median
Price per CFM$155$/scfm
$69median $211$632
-26.9% vs. median
