What horsepower is the Powerex STD0754 air compressor?

The Powerex STD0754 is rated at 15 HP.

How much air does the Powerex STD0754 produce?

The Powerex STD0754 delivers 46.2 SCFM at 116 PSI.

What is the maximum pressure of the Powerex STD0754?

The Powerex STD0754 has a maximum operating pressure of 145 PSI.

What size tank does the Powerex STD0754 have?

The Powerex STD0754 has a 120-gallon tank.

Is the Powerex STD0754 single-stage or two-stage?

The Powerex STD0754 is a single-stage compressor.

What voltage does the Powerex STD0754 require?

The Powerex STD0754 runs on 208/230/460.

Is the Powerex STD0754 oil-free or oil-lubricated?

The Powerex STD0754 is oil-free.

What is the duty cycle of the Powerex STD0754?

The Powerex STD0754 has a 100% duty cycle.

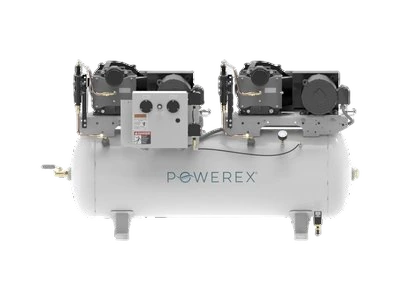

Powerex STD0754 – 15 HP 120-Gallon Scroll Air Compressor

Powerex STD0754 is a 7.5 HP × 2 oilless scroll duplex tank-mounted compressor delivering 46.2 SCFM at 116 PSI on a 120-gal ASME receiver.

CFM

46.2 @ 116 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.08CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$543$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM1750 rpm

Lubricationoilless

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life30,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM46.2 @ 116 PSI

CFM / HP3.08

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Service—

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight1100 lb

Form— · 120 gal · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise77 dBA

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 5 · 15 HP

Sizing & pricevs. 5 in class

SCFM @ 15 HP46.2cfm
37median 45.752
+1.1% vs. median
Average price$31,014
$24,842median $25,460$29k
+21.8% vs. median

Efficiency vs. peersvs. 5 in class

CFM per HP3.08cfm/hp
2.5median 3.053.48
+1.1% vs. median
Price per CFM$543$/scfm
$543median $565$773
-3.9% vs. median
