What horsepower is the Powerex SET15074HP air compressor?

The Powerex SET15074HP is rated at 15 HP.

How much air does the Powerex SET15074HP produce?

The Powerex SET15074HP delivers 37.5 SCFM at 145 PSI.

What size tank does the Powerex SET15074HP have?

The Powerex SET15074HP has a 13-gallon tank.

Is the Powerex SET15074HP single-stage or two-stage?

The Powerex SET15074HP is a single-stage compressor.

What voltage does the Powerex SET15074HP require?

The Powerex SET15074HP runs on 460/3.

Is the Powerex SET15074HP oil-free or oil-lubricated?

The Powerex SET15074HP is oil-free.

What is the duty cycle of the Powerex SET15074HP?

The Powerex SET15074HP has a 100% duty cycle.

What is the Powerex SET15074HP best for?

The Powerex SET15074HP is best suited for High-pressure (145 PSIG) clean, dry oil-free scroll air for laboratory and clean-process applications..

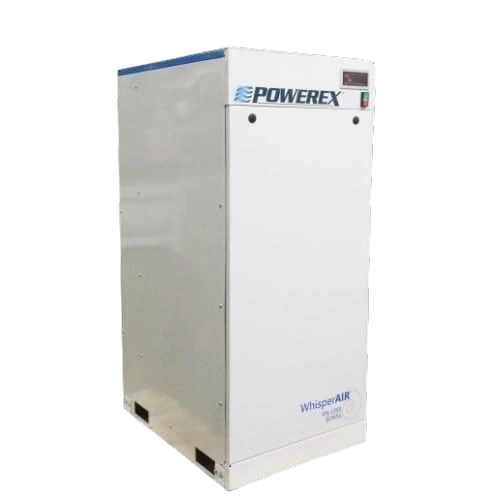

Powerex SET15074HP – 15 HP 13-Gallon Scroll Air Compressor

Powerex SET15074HP is a 15 HP (5 HP per pump) oilless scroll triplex tankless system delivering 37.5 SCFM at 145 PSI in a sound-attenuated enclosure at 56 dB(A). Three-pump configuration provides N+1 redundancy for critical high-pressure clean-air applications. Voltage: 460V three-phase. Dimensions 34 x 21 x 32 inches; weight 965 lbs. Lubrication-free design for medical, laboratory, and industrial clean-air use. Higher-pressure variant of SET1507 series; max pressure 145 PSI versus 116 PSI standard. Continuous 100% duty cycle. Direct drive, air cooled.

CFM

37.5 @ 145 PSI

Duty

100% continuous

Tank size

13 gal

Air output per horsepowerAirflow per motor HP

2.50CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$752$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM3500 rpm

Lubricationoilless

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life30,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM37.5 @ 145 PSI

CFM / HP2.50

Cut-in / out95 / 145 PSI

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Service—

Voltage460/3

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight965 lb

Form— · 13 gal · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USAYes

Noise56 dBA

Op. temp40–104 °F

Dimensions34 x 21 x 32 in

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 5 · 15 HP

Sizing & pricevs. 5 in class

SCFM @ 15 HP37.5cfm
37median 45.752
-17.9% vs. median
Average price$28,598
$24,842median $25,460$28k
+12.3% vs. median

Efficiency vs. peersvs. 5 in class

CFM per HP2.5cfm/hp
2.5median 3.053.48
-17.9% vs. median
Price per CFM$752$/scfm
$543median $565$751
+33% vs. median
