What horsepower is the Powerex SET1507 air compressor?

The Powerex SET1507 is rated at 15 HP.

How much air does the Powerex SET1507 produce?

The Powerex SET1507 delivers 45.7 SCFM at 116 PSI.

What is the maximum pressure of the Powerex SET1507?

The Powerex SET1507 has a maximum operating pressure of 145 PSI.

What size tank does the Powerex SET1507 have?

The Powerex SET1507 has a 60-gallon tank.

Is the Powerex SET1507 single-stage or two-stage?

The Powerex SET1507 is a single-stage compressor.

What voltage does the Powerex SET1507 require?

The Powerex SET1507 runs on 208/230/460.

Is the Powerex SET1507 oil-free or oil-lubricated?

The Powerex SET1507 is oil-free.

What is the duty cycle of the Powerex SET1507?

The Powerex SET1507 has a 100% duty cycle.

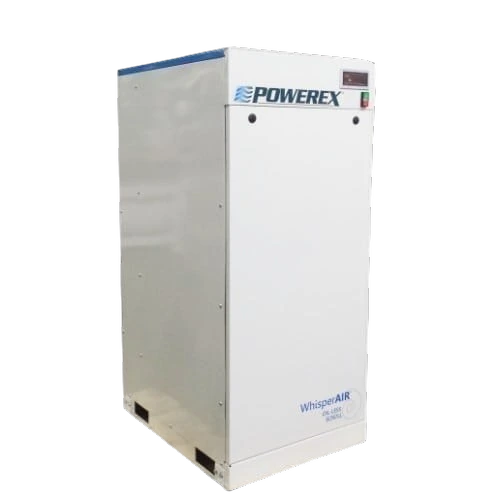

Powerex SET1507 – 15 HP 60-Gallon Scroll Air Compressor

Powerex SET1507 is a 15 HP (5 HP per pump) oilless scroll triplex tankless enclosed system producing 45.7 SCFM at 116 PSI (45.6 SCFM at 100 PSIG rated) at 56 dB(A) with N+1 redundancy. Three scroll pumps ensure no single point of failure for critical applications. Voltage: 208/230/460V three-phase. 60-gallon receiver tank. Heat rejection is 38,175 BTU/hr. System weight is 965 lbs. Continuous 100% duty rated. Lubrication-free design for NFPA 99 medical gas and cleanroom applications. Direct drive, air cooled. 5-year warranty on scroll elements.

CFM

45.7 @ 116 PSI

Duty

100% continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

3.05CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$565$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM3500 rpm

Lubricationoilless

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life30,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM45.7 @ 116 PSI

CFM / HP3.05

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Serviceelectric

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight965 lb

Form— · 60 gal · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in

Drain—

Drain outlet—

ASME tank—

Made in USAYes

Noise56 dBA

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 5 · 15 HP

Sizing & pricevs. 5 in class

SCFM @ 15 HP45.7cfm
37median 45.752
0% vs. median
Average price$31,690
$24,842median $25,460$29k
+24.5% vs. median

Efficiency vs. peersvs. 5 in class

CFM per HP3.05cfm/hp
2.5median 3.053.48
-0% vs. median
Price per CFM$565$/scfm
$543median $565$773
0% vs. median
