What horsepower is the Powerex SES0508 air compressor?

The Powerex SES0508 is rated at 5 HP.

How much air does the Powerex SES0508 produce?

The Powerex SES0508 delivers 15.2 SCFM at 100 PSI.

What is the maximum pressure of the Powerex SES0508?

The Powerex SES0508 has a maximum operating pressure of 145 PSI.

What size tank does the Powerex SES0508 have?

The Powerex SES0508 has a 13-gallon tank.

Is the Powerex SES0508 single-stage or two-stage?

The Powerex SES0508 is a single-stage compressor.

What voltage does the Powerex SES0508 require?

The Powerex SES0508 runs on 208/230/460.

What is the duty cycle of the Powerex SES0508?

The Powerex SES0508 has a 100% duty cycle.

What is the Powerex SES0508 best for?

The Powerex SES0508 is best suited for Medical, dental, lab, food and beverage processing, electronics manufacturing, and any ISO Class Zero clean-air-required application..

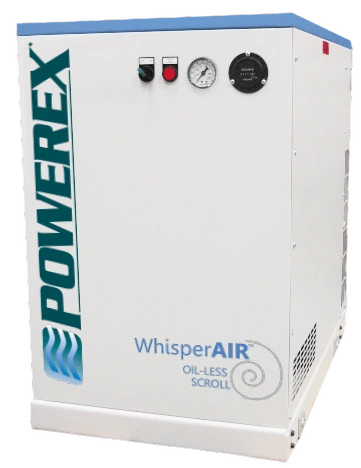

Powerex SES0508 – 5 HP 13-Gallon Scroll Air Compressor

Powerex SES0508 is a 5.00 HP 15.20 CFM at 100 PSI scroll compressor with a 13.0-gallon receiver tank, operating at 208/230/460. Shipping weight is 335 lb. This unit belongs to the Powerex SES series. Suitable for dental, laboratory, or clean-air applications.

CFM

15.2 @ 100 PSI

Duty

100% continuous

Tank size

13 gal

Air output per horsepowerAirflow per motor HP

3.04CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$749$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM3500 rpm

Lubricationoil-free scroll

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM15.2 @ 100 PSI

CFM / HP3.04

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Serviceelectric

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight335 lb

Form— · 13 gal · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet3/8 in

Drain—

Drain outlet—

ASME tank—

Made in USAYes

Noise51 dBA

Op. temp40–104 °F

Dimensions34 x 21 x 33 in

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 12 · 5 HP

Sizing & pricevs. 12 in class

SCFM @ 5 HP15.2cfm
12median 14.515
+4.8% vs. median
Average price$14,109
$5,557median $11,484$13k
+22.9% vs. median

Efficiency vs. peersvs. 12 in class

CFM per HP3.04cfm/hp
2.44median 2.93.04
+4.8% vs. median
Price per CFM$749$/scfm
$365median $792$1,043
-5.4% vs. median
