What horsepower is the Powerex SED1007 air compressor?

The Powerex SED1007 is rated at 10 HP.

How much air does the Powerex SED1007 produce?

The Powerex SED1007 delivers 30.4 SCFM at 116 PSI.

What is the maximum pressure of the Powerex SED1007?

The Powerex SED1007 has a maximum operating pressure of 145 PSI.

What size tank does the Powerex SED1007 have?

The Powerex SED1007 has a 13-gallon tank.

Is the Powerex SED1007 single-stage or two-stage?

The Powerex SED1007 is a single-stage compressor.

What voltage does the Powerex SED1007 require?

The Powerex SED1007 runs on 208/230/460.

Is the Powerex SED1007 oil-free or oil-lubricated?

The Powerex SED1007 is oil-free.

What is the duty cycle of the Powerex SED1007?

The Powerex SED1007 has a 100% duty cycle.

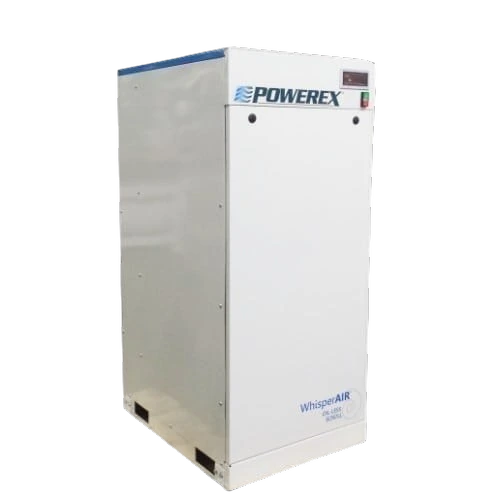

Powerex SED1007 – 10 HP 13-Gallon Scroll Air Compressor

Powerex SED1007 is a 10 HP (5 HP per pump) oilless scroll duplex tankless system producing 30.4 SCFM at 116 PSI (100 PSIG rated) at 53 dB(A) for medical, laboratory, and clean-air applications. Two scroll pumps provide N+1 redundancy. Voltage: 208/230/460V three-phase. Direct drive with air cooling. Heat rejection is 25,450 BTU/hr. System weight is 825 lbs. Continuous 100% duty rated. Lubrication-free scroll design eliminates oil contamination risk. Suitable for NFPA 99 medical gas environments where oil-free air is required. 5-year warranty on scroll elements.

CFM

30.4 @ 116 PSI

Duty

100% continuous

Tank size

13 gal

Air output per horsepowerAirflow per motor HP

3.04CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$621$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage scroll

Cylinder—

Pump RPM3500 rpm

Lubricationoilless

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life30,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM30.4 @ 116 PSI

CFM / HP3.04

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

ELECTRICAL & FORM

Serviceelectric

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight825 lb

Form— · 13 gal · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in

Drain—

Drain outlet—

ASME tank—

Made in USAYes

Noise53 dBA

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 4 · 10 HP

Sizing & pricevs. 4 in class

SCFM @ 10 HP30.4cfm
30median 30.437
0% vs. median
Average price$23,344
$5,120median $17,864$21k
+30.7% vs. median

Efficiency vs. peersvs. 4 in class

CFM per HP3.04cfm/hp
3median 3.043.77
0% vs. median
Price per CFM$621$/scfm
$135median $621$680
0% vs. median
