What horsepower is the Powerex MPT0758 air compressor?

The Powerex MPT0758 is rated at 22.5 HP.

How much air does the Powerex MPT0758 produce?

The Powerex MPT0758 delivers 78.3 SCFM at 100 PSI.

What size tank does the Powerex MPT0758 have?

The Powerex MPT0758 has a 200-gallon tank.

Is the Powerex MPT0758 single-stage or two-stage?

The Powerex MPT0758 is a two-stage compressor.

What voltage does the Powerex MPT0758 require?

The Powerex MPT0758 runs on 208/230/460.

Is the Powerex MPT0758 oil-free or oil-lubricated?

The Powerex MPT0758 is oil-free.

What is the duty cycle of the Powerex MPT0758?

The Powerex MPT0758 has a 100% duty cycle.

What is the Powerex MPT0758 best for?

The Powerex MPT0758 is best suited for Hospital and medical-institute breathing air per NFPA 99 Level 1 (triplex redundancy), supplied as the compressor/receiver of a medical air system..

Powerex MPT0758 – 22.5 HP 200-Gallon 2-Stage Air Compressor

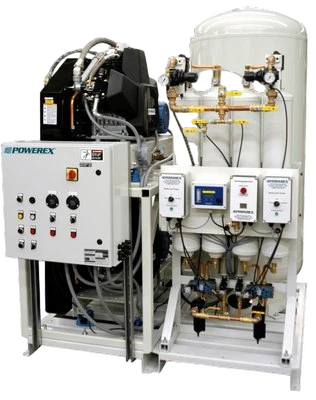

Powerex MPT0758 is a 7.5 HP × 3 oilless triplex medical-air reciprocating system delivering 78.3 SCFM at 100 PSI on a 200-gal ASME tank.

22.50

CFM

78.3 @ 100 PSI

Duty

100% continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

3.48CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteNo price source on file

—$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM855 rpm

Lubricationoilless

OilN/A – oil-free design (no oil contacts air)

Sump—

Pump life30,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM78.3 @ 100 PSI

CFM / HP3.48

Cut-in / out—

Tank fill—

Est. draw19.7 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $7,090

Maintenance · yearlyEst. $563

Savings with Compressor Controller · yearlyEst. $1,631–$2,978

ELECTRICAL & FORM

Service—

Voltage208/230/460

Amps—

Motor—

Motor RPM1750 rpm

Control—

Starter—

Weight1980 lb

Form— · 200 gal · 125 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions96 x 90 x 83 in

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 22.5 HP

Sizing & pricevs. 1 in class

SCFM @ 22.5 HP78.3cfm
78median 78.379
0% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP3.48cfm/hp
3.48median 3.484.48
0% vs. median
