AVERAGE PRICE
$15,600
1 retailer

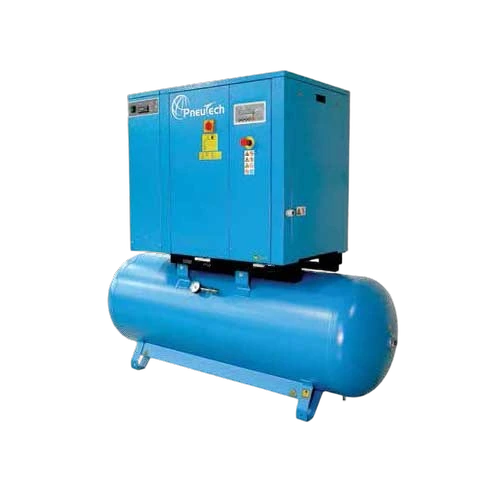

PneuTech 15 HP fixed-speed rotary screw on 132-gal tank; 54.9 CFM at 125 PSI, 68 dBA, belt drive, 3-phase electric.
HP
15
CFM
55 @ 125 PSI
Duty
— continuous
Tank size
132 gal
Air output per horsepowerAirflow per motor HP
3.67CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage rotary screw
75%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$284$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage screw
Cylinder—
Pump RPM—
Lubricationoil_flooded
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM55 @ 125 PSI
CFM / HP3.67
Cut-in / out—
Tank fill—
Est. draw13.2 kW
COST & MAINTENANCE
Electric · yearlyEst. $4,727
Maintenance · yearlyEst. $375
ELECTRICAL & FORM
Serviceelectric
Voltage208-230/460V/3ph
Amps—
Motor—
Motor RPM—
Controlelectronic controller
StarterWye-Delta
Weight815 lb
FormHorizontal_tank · 132 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 44 · 15 HP
Sizing & pricevs. 44 in class
- SCFM @ 15 HP55cfm20median 55.571-0.8% vs. median
- Average price$15,600$9,196median $14,432$25k+8.1% vs. median
Efficiency vs. peersvs. 44 in class
- CFM per HP3.67cfm/hp1.33median 3.734.73-1.6% vs. median
- Price per CFM$284$/scfm$153median $251$905+12.9% vs. median
Where this is sold1 verified retailer · USD
Find an installer / dealer near youAuthorized PneuTech dealers · search by ZIPPrice history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
compressorsnow.com
