What horsepower is the PneuTech RK-10F-125T air compressor?

The PneuTech RK-10F-125T is rated at 10 HP.

How much air does the PneuTech RK-10F-125T produce?

The PneuTech RK-10F-125T delivers 29.8 SCFM.

What is the maximum pressure of the PneuTech RK-10F-125T?

The PneuTech RK-10F-125T has a maximum operating pressure of 125 PSI.

What size tank does the PneuTech RK-10F-125T have?

The PneuTech RK-10F-125T has a 80-gallon tank.

Is the PneuTech RK-10F-125T single-stage or two-stage?

The PneuTech RK-10F-125T is a 3-stage compressor.

What voltage does the PneuTech RK-10F-125T require?

The PneuTech RK-10F-125T runs on 208/3/60, 230/3/60, 460/3/60.

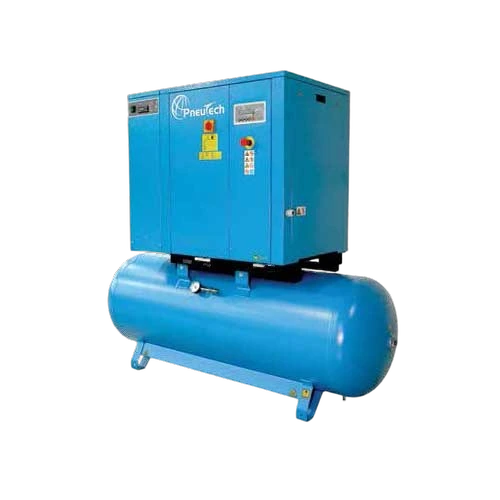

PneuTech RK-10F-125T – 10 HP 80-Gallon Screw Air Compressor

The PneuTech RK-10F-125T is a 10.00 HP rotary screw air compressor delivering 29.80 SCFM on a 80.0-gallon tank, wired for 208/3/60, 230/3/60, 460/3/60. The unit is in a simplex configuration, weighs 681 lb. Continuous-duty rotary screw design suits sustained plant air, manufacturing cells, and high-utilization shop environments. Listed at approximately $13,000. OEM datasheet needed for duty cycle rating.

CFM

29.8 @ 125 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

2.98CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 3-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$436$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages3-stage screw

Cylinder—

Pump RPM—

Lubrication—

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM29.8 @ 125 PSI

CFM / HP2.98

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

ELECTRICAL & FORM

Service—

Voltage208/3/60, 230/3/60, 460/3/60

Amps—

Motor—

Motor RPM—

Controlelectronic controller

StarterWye-Delta

Weight681 lb

Form— · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 59 · 10 HP

Sizing & pricevs. 59 in class

SCFM @ 10 HP29.8cfm
20median 39.845
-25% vs. median
Average price$13,000
$4,547median $11,392$26k
+14.1% vs. median

Efficiency vs. peersvs. 59 in class

CFM per HP2.98cfm/hp
2median 44.5
-25.5% vs. median
Price per CFM$436$/scfm
$185median $282$903
+54.4% vs. median

Where this is sold

Compressors Now
Verified 2 months ago
$13,000
Lowest

Find an installer / dealer near youAuthorized PneuTech dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Compressors Now
