What horsepower is the Pneumofore UV 50 air compressor?

The Pneumofore UV 50 is rated at 50 HP.

How much air does the Pneumofore UV 50 produce?

The Pneumofore UV 50 delivers 197 SCFM at 100 PSI.

What is the maximum pressure of the Pneumofore UV 50?

The Pneumofore UV 50 has a maximum operating pressure of 145 PSI.

What size tank does the Pneumofore UV 50 have?

The Pneumofore UV 50 has a 0-gallon tank.

Is the Pneumofore UV 50 single-stage or two-stage?

The Pneumofore UV 50 is a single-stage compressor.

What voltage does the Pneumofore UV 50 require?

The Pneumofore UV 50 runs on 400/460.

What is the duty cycle of the Pneumofore UV 50?

The Pneumofore UV 50 has a 100% duty cycle.

What is the Pneumofore UV 50 best for?

The Pneumofore UV 50 is best suited for Heavy-duty 24/7 industrial rotary vane compressor for large process plants prioritizing decades of continuous service life..

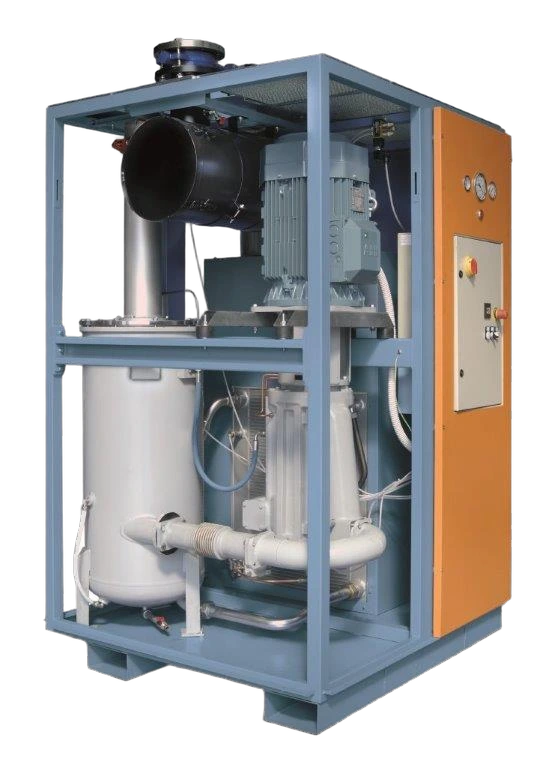

Pneumofore UV 50

Pneumofore UV 50 is a 50.00 HP 197.00 CFM at 100 PSI rotary vane compressor with a 0.0-gallon receiver tank, operating at 400/460. Shipping weight is 2200 lb. This unit belongs to the Pneumofore UV series. Suitable for continuous-duty industrial and vacuum applications.

CFM

197 @ 100 PSI

Duty

100% continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

3.94CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary vane

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteNo price source on file

—$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage vane

Cylinder—

Pump RPM1000 rpm

Lubricationoil-flooded sliding vane

OilISO 46 synthetic rotary screw fluid

Sump—

Pump life100,000 hrs

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM197 @ 100 PSI

CFM / HP3.94

Cut-in / out—

Tank fill—

Est. draw43.9 kW

COST & MAINTENANCE

Electric · yearlyEst. $15,756

Maintenance · yearlyEst. $1,250

ELECTRICAL & FORM

Service—

Voltage400/460

Amps—

Motor—

Motor RPM1750 rpm

ControlPneumofore PLC

Starterwye-delta

Weight2200 lb

Form— · 200 PSI tank rating

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp40–104 °F

Dimensions105 x 59 x 89 in

Ship weight2200 lb

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 50 HP

Sizing & pricevs. 1 in class

SCFM @ 50 HP197cfm
197median 197198
0% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP3.94cfm/hp
3.94median 3.944.94
0% vs. median
