What horsepower is the Jenny T20B-240 air compressor?

The Jenny T20B-240 is rated at 20 HP.

How much air does the Jenny T20B-240 produce?

The Jenny T20B-240 delivers 92.1 SCFM.

What is the maximum pressure of the Jenny T20B-240?

The Jenny T20B-240 has a maximum operating pressure of 175 PSI.

What size tank does the Jenny T20B-240 have?

The Jenny T20B-240 has a 240-gallon tank.

Is the Jenny T20B-240 single-stage or two-stage?

The Jenny T20B-240 is a two-stage compressor.

What voltage does the Jenny T20B-240 require?

The Jenny T20B-240 runs on 230/1ph.

Is the Jenny T20B-240 oil-free or oil-lubricated?

The Jenny T20B-240 is oil-lubricated.

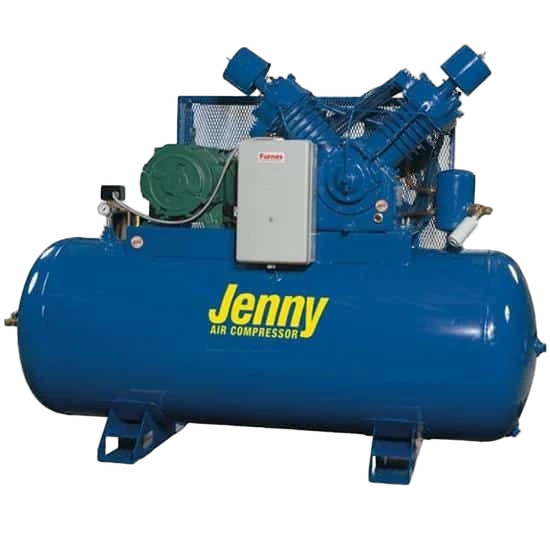

Jenny T20B-240 – 20 HP 240-Gallon 2-Stage Air Compressor

Jenny T20B-240 is a 20 HP two-stage oil-lubricated reciprocating-industrial air compressor delivering 92.1 CFM at 175 PSI maximum on a 240-gallon tank at 230V single-phase. The unit weighs 2,100 lbs. The T series is Jenny heavy-duty large-format line suited for fleet maintenance, heavy fabrication, and large-shop industrial air. CFM at rated PSI point not confirmed; 175 PSI is maximum rated pressure. MPN T20B-240. Pricing is quote-only.

CFM

92.1 @ 175 PSI

Duty

— continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

4.60CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$160$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM670 rpm

Lubricationoil-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM92.1 @ 175 PSI

CFM / HP4.60

Cut-in / out—

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

Savings with Compressor Controller · yearlyEst. $1,450–$2,647

ELECTRICAL & FORM

Serviceelectric

Voltage230/1ph

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight2100 lb

Form— · 240 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 40 · 20 HP

Sizing & pricevs. 40 in class

SCFM @ 20 HP92.1cfm
58median 7092
+31.6% vs. median
Average price$14,693
$8,083median $15,183$39k
-3.2% vs. median

Efficiency vs. peersvs. 40 in class

CFM per HP4.6cfm/hp
2.92median 3.54.61
+31.6% vs. median
Price per CFM$160$/scfm
$101median $203$589
-21.8% vs. median
