What horsepower is the Jenny C6HGA-B air compressor?

The Jenny C6HGA-B is rated at 6.5 HP.

How much air does the Jenny C6HGA-B produce?

The Jenny C6HGA-B delivers 10.3 SCFM.

What is the maximum pressure of the Jenny C6HGA-B?

The Jenny C6HGA-B has a maximum operating pressure of 125 PSI.

What size tank does the Jenny C6HGA-B have?

The Jenny C6HGA-B has a 0-gallon tank.

Is the Jenny C6HGA-B single-stage or two-stage?

The Jenny C6HGA-B is a two-stage compressor.

What voltage does the Jenny C6HGA-B require?

The Jenny C6HGA-B runs on Honda Gas.

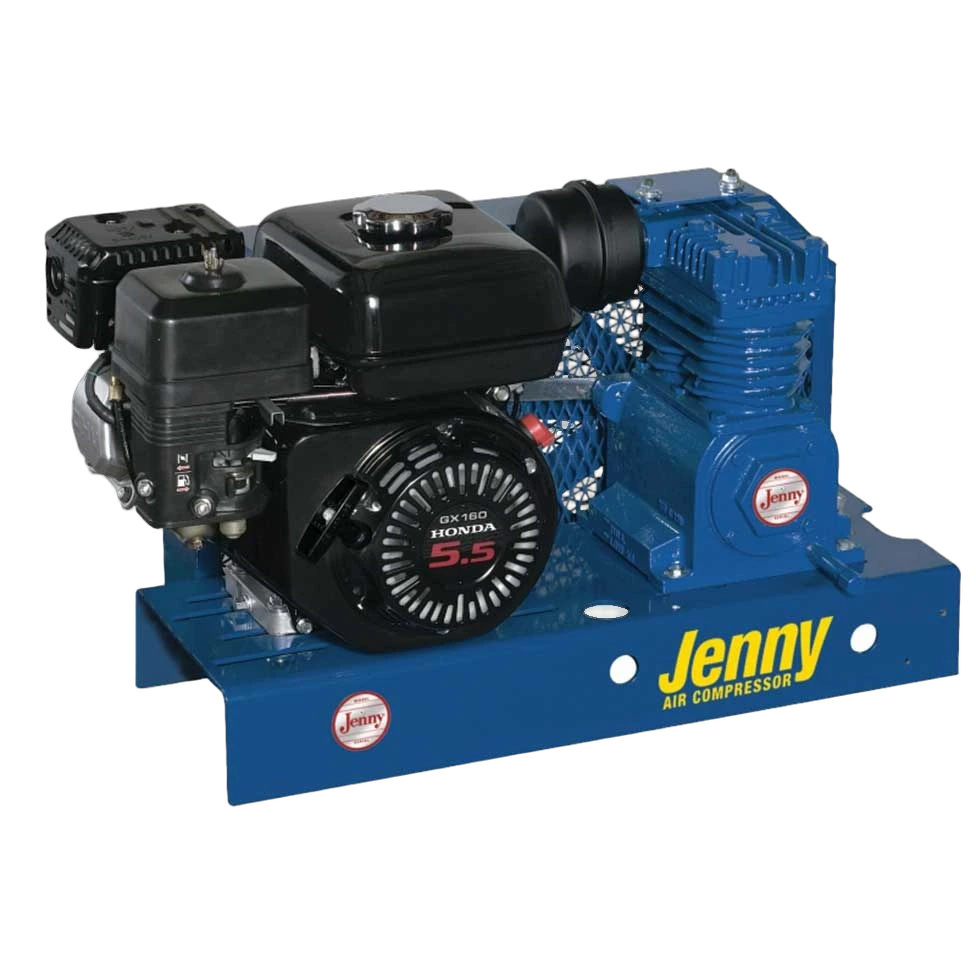

Jenny C6HGA-B

Jenny C6HGA-B is a 6.5 HP two-stage pressure-lubricated reciprocating piston compressor delivering 10.3 SCFM at 125 PSI, powered by a Honda gasoline engine. Base-mount configuration (no integral tank) makes it fully portable for remote jobsites without electrical infrastructure. The two-stage pump delivers higher pressure efficiency than single-stage designs. Unit weighs 177 lbs. Maximum working pressure is 125 PSI. Retail pricing through authorized Jenny distributors is approximately $1,600. The Honda gas drive targets construction sites, remote agriculture, and field service applications where three-phase or single-phase electricity is unavailable. Buyers should confirm engine model, starter type, and oil-service requirements with an authorized Jenny Products distributor before purchase. No factory datasheet was confirmed on jennyproductsinc.com.

6.50

CFM

10.3 @ 125 PSI

Duty

— continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

1.58CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$155$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationpressure-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM10.3 @ 125 PSI

CFM / HP1.58

Cut-in / out—

Tank fill—

Est. draw5.7 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,048

Maintenance · yearlyEst. $163

Savings with Compressor Controller · yearlyEst. $471–$860

ELECTRICAL & FORM

Servicediesel

VoltageHonda Gas

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight177 lb

Form—

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 2 · 6.5 HP

Sizing & pricevs. 2 in class

SCFM @ 6.5 HP10.3cfm
10median 12.113
-14.5% vs. median
Average price$1,600
$1,479median $1,539$2k
+3.9% vs. median

Efficiency vs. peersvs. 2 in class

CFM per HP1.58cfm/hp
1.58median 2.122.12
-25.4% vs. median
Price per CFM$155$/scfm
$107median $155$155
-0% vs. median
