Jenny · SINGLE-STAGE PISTON

2(W5B)-120

10 HP · electric · oil-lubricated · 1-stage
AVERAGE PRICE
$8,699
1 retailer

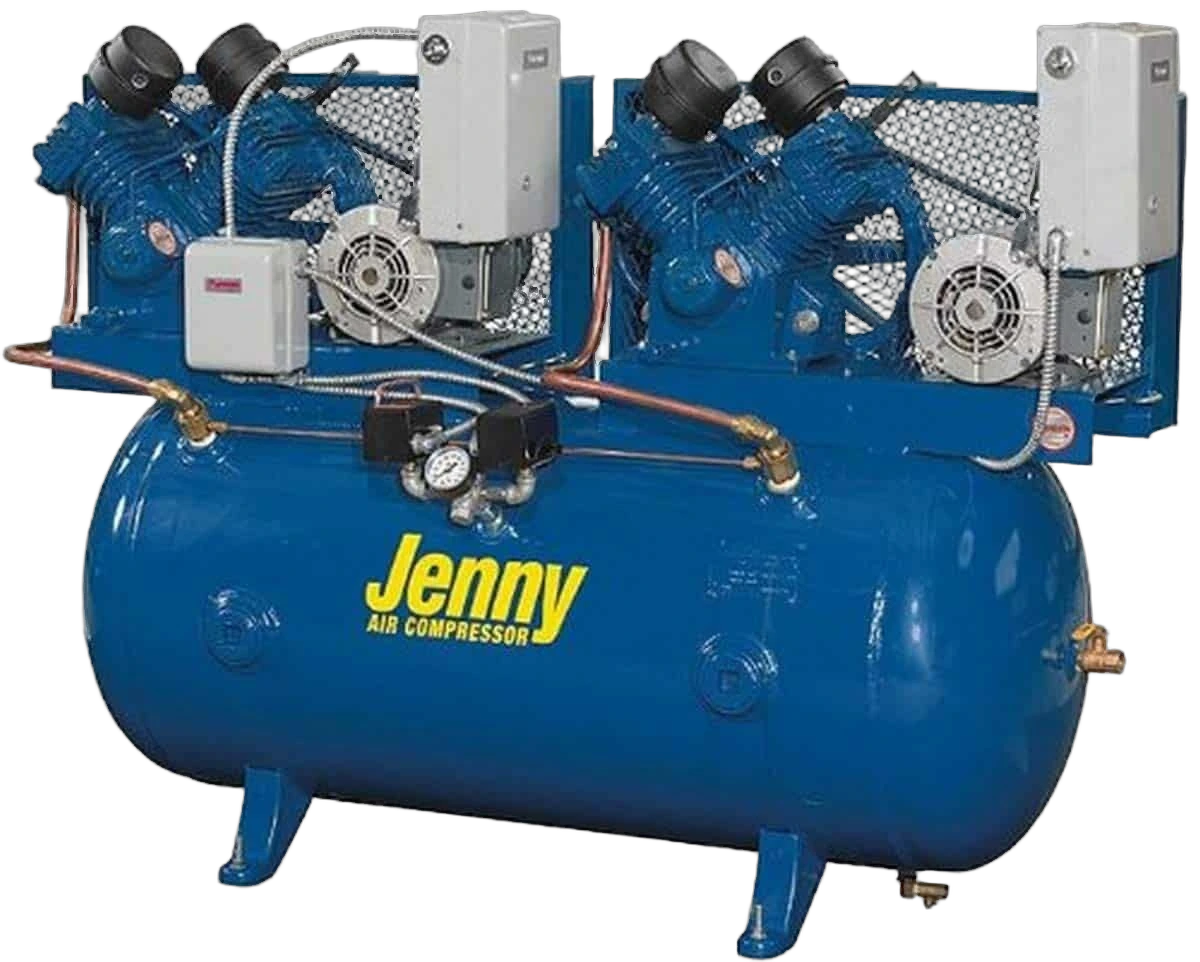

Jenny 2(W5B)-120

Jenny 2(W5B)-120 is a 10 HP single-stage oil-lubricated reciprocating air compressor delivering 42 SCFM at 100 PSI maximum on a 120-gallon tank. Wired for 120 V single-phase, this industrial unit weighs 1,130 lbs and is priced at approximately $8,699. The Jenny 2W series is a long-established workhorse in industrial and contractor markets, valued for robust cast-iron construction and serviceability. The 120-gallon receiver provides substantial storage for intermittent high-demand applications. Note: single-stage design at 100 PSI max makes it suitable for general shop tools but not for high-pressure applications requiring 150+ PSI. Key gaps: duty-cycle rating, amperage draw, and OEM primary-source datasheet not yet located.

HP
10
CFM
42 @ 100 PSI
Duty
— continuous
Tank size
120 gal
Air output per horsepowerAirflow per motor HP
4.20CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage piston
58%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$207$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage recip
Cylinder—
Pump RPM—
Lubricationoil-lubricated
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM42 @ 100 PSI
CFM / HP4.20
Cut-in / out—
Tank fill—
Est. draw8.8 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $3,151
Maintenance · yearlyEst. $250
Savings with Compressor Controller · yearlyEst. $725–$1,323
ELECTRICAL & FORM
Serviceelectric
Voltage120/1ph
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight1130 lb
Form— · 120 gal
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
128 · 10 HP
Sizing & pricevs. 128 in class
  • SCFM @ 10 HP42cfm
    17median 34.279
    +22.8% vs. median
  • Average price$8,699
    $3,400median $7,517$27k
    +15.7% vs. median
Efficiency vs. peersvs. 128 in class
  • CFM per HP4.2cfm/hp
    1.72median 3.427.96
    +22.8% vs. median
  • Price per CFM$207$/scfm
    $99median $212$474
    -2.5% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$8,264$8,554$8,844$9,134avg $8,699today-10d-20d-30d
