2475N7.5-V

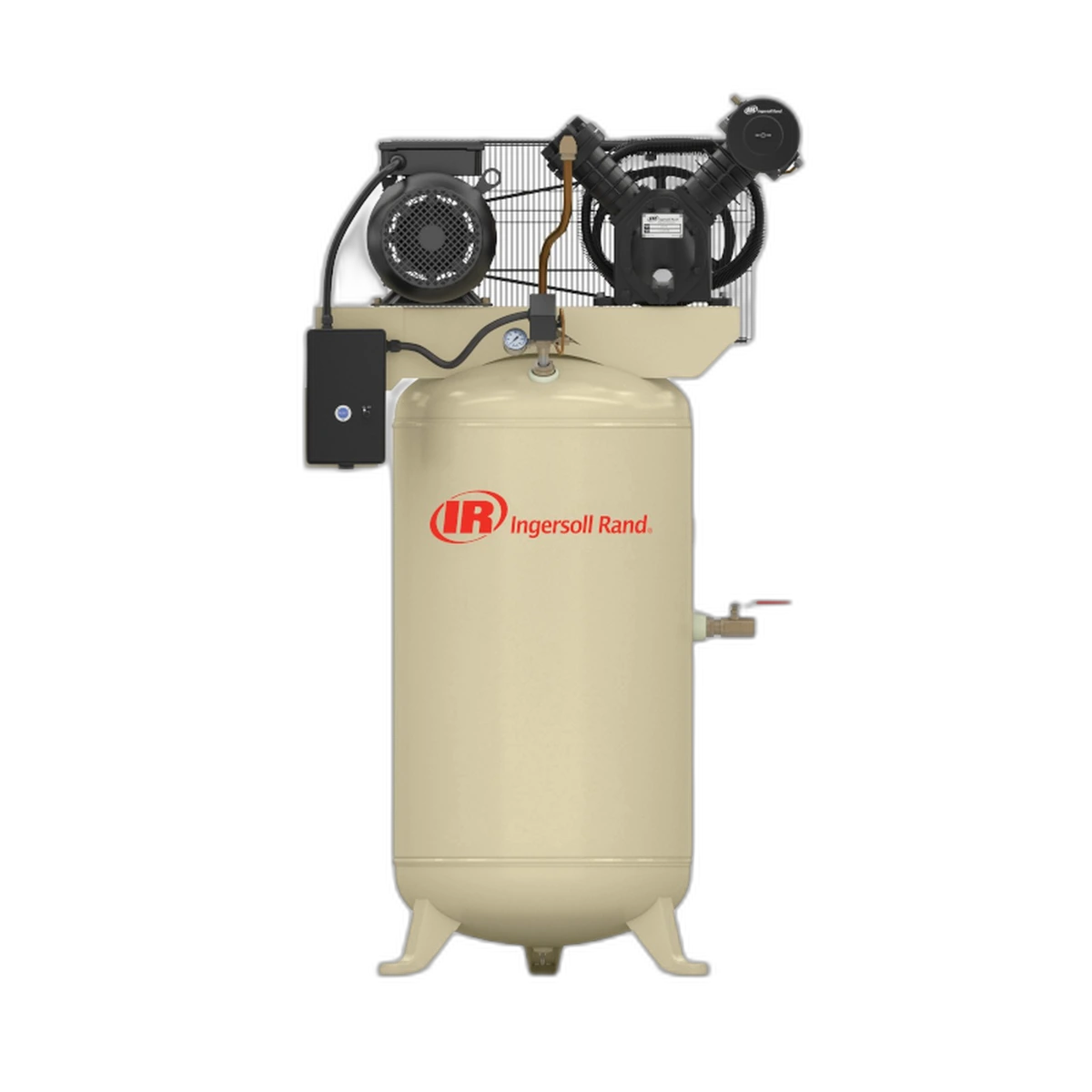

Ingersoll Rand 2475N7.5-V is the Type 30 7.5 HP two-stage cast-iron piston compressor on an 80-gallon vertical ASME tank, primarily sold three-phase (200, 230, 460, or 575V) with a single-phase 230V option also available. Output is 24 CFM at 175 PSI (24.3 CFM at 90 PSI). Dimensions 28 by 38 by 69 inches, net weight 611 lbs, 0.75 inch NPT outlet. The Type 30 pump is IR’s heavy-duty workhorse with cast-iron construction, splash lubrication, finger-style valves, and a designed pump life of more than 15,000 hours of trouble-free operation. The Premium Package (2475N7.5-P) adds enclosed control panel, magnetic starter, low-oil switch, and aftercooler; the Value Plus is the magnetic-starter-only trim. Best fit is a 2-3 bay commercial shop, a small fab shop with three-phase service, or a paint shop running continuous HVLP. Made in the USA. The Type 30 nomenclature dates back to IR’s 1934 type-30 pump; current production keeps the same cast-iron architecture with modern valves and bearings.
