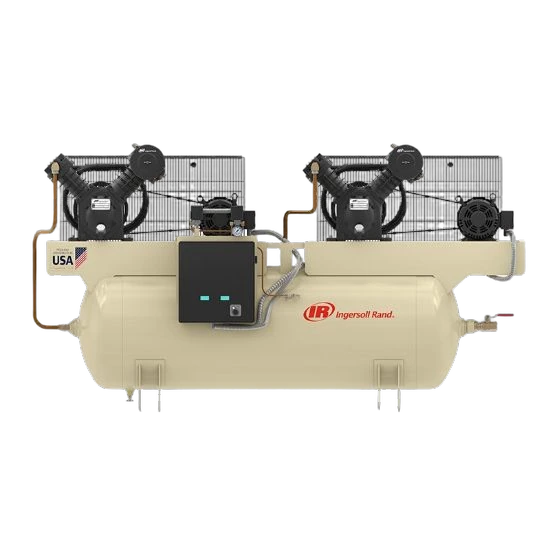

The Ingersoll Rand 2-2475E5-V Duplex is the smallest in IR’s 2475 Type 30 duplex line: two 5 HP cast-iron two-stage pumps and motors on a 120-gallon horizontal ASME tank for 33 ACFM combined at 175 PSI. Value package ships pre-wired with an alternator panel for automatic lead/lag operation. The legendary IR Type 30 pump architecture (overhung crankshaft, individually-cast cylinders) is rated 100% continuous duty. Premium variant 2-2475E5-P adds aftercooler, low-oil shutdown, and electronic auto-drain. Targets dental, light commercial, and small manufacturing redundant air.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 127 · 10 HP
- SCFM @ 10 HP33cfm17median 34.279-3.5% vs. median
- Average price$7,540$3,400median $7,494$27k+0.6% vs. median
- CFM per HP3.3cfm/hp1.72median 3.427.96-3.5% vs. median
- Price per CFM$223$/scfm$99median $210$517+5.6% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
