What horsepower is the Industrial Gold R101H80 air compressor?

The Industrial Gold R101H80 is rated at 10 HP.

How much air does the Industrial Gold R101H80 produce?

The Industrial Gold R101H80 delivers 29 SCFM at 125 PSI.

What size tank does the Industrial Gold R101H80 have?

The Industrial Gold R101H80 has a 80-gallon tank.

Is the Industrial Gold R101H80 single-stage or two-stage?

The Industrial Gold R101H80 is a single-stage compressor.

What voltage does the Industrial Gold R101H80 require?

The Industrial Gold R101H80 runs on 208-230.

Is the Industrial Gold R101H80 oil-free or oil-lubricated?

The Industrial Gold R101H80 is oil-flooded.

What is the duty cycle of the Industrial Gold R101H80?

The Industrial Gold R101H80 has a 100% duty cycle.

What is the Industrial Gold R101H80 best for?

The Industrial Gold R101H80 is best suited for Continuous-duty plant air for production cells and heavy-demand shops requiring 10 HP rotary screw at 100% duty cycle.

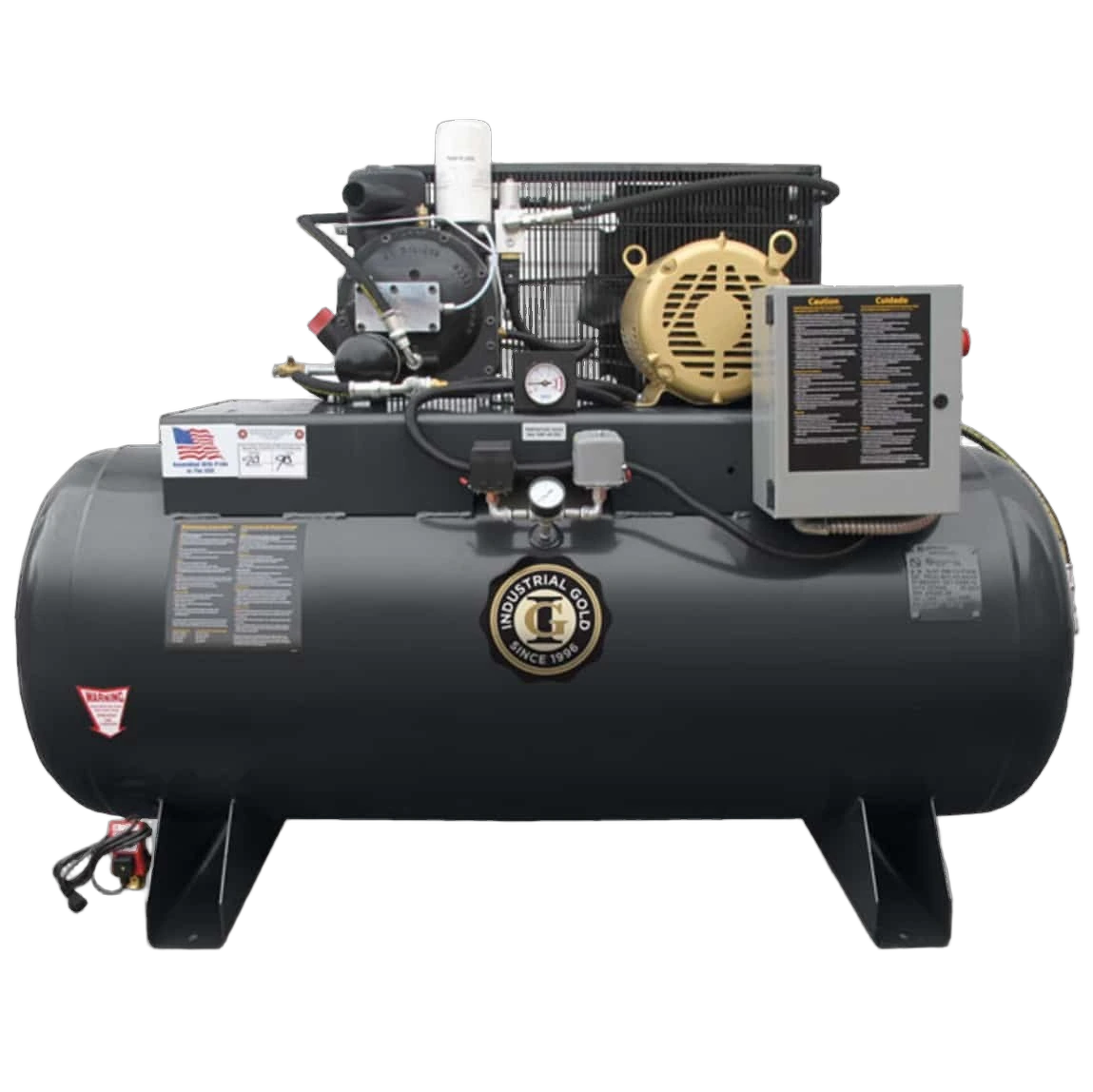

Industrial Gold R101H80 – 10 HP 80-Gallon Screw Compressor

Industrial Gold R101H80 is a 10.00 HP single-stage simplex air compressor delivering 80.0-gallon tank, 208-230. Part of the R-Series series. oil-flooded-lubricated pump. maximum working pressure 125 PSI. 100% duty cycle. Saylor-Beall suspended retail distribution in 2022; pricing available through authorized dealers only.

CFM

29 @ 125 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

2.90CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$515$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM29 @ 125 PSI

CFM / HP2.90

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

ELECTRICAL & FORM

Serviceelectric

Voltage208-230

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight675 lb

Form— · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 59 · 10 HP

Sizing & pricevs. 59 in class

SCFM @ 10 HP29cfm
20median 39.845
-27% vs. median
Average price$14,928
$4,547median $11,020$23k
+35.5% vs. median

Efficiency vs. peersvs. 59 in class

CFM per HP2.9cfm/hp
2median 44.5
-27.5% vs. median
Price per CFM$515$/scfm
$185median $265$903
+94.2% vs. median
