Industrial Gold · DCI · SINGLE-STAGE PISTON

DCI1021E240H

10 HP · splash-lubricated · 1-stage
AVERAGE PRICE
$21,706
1 retailer

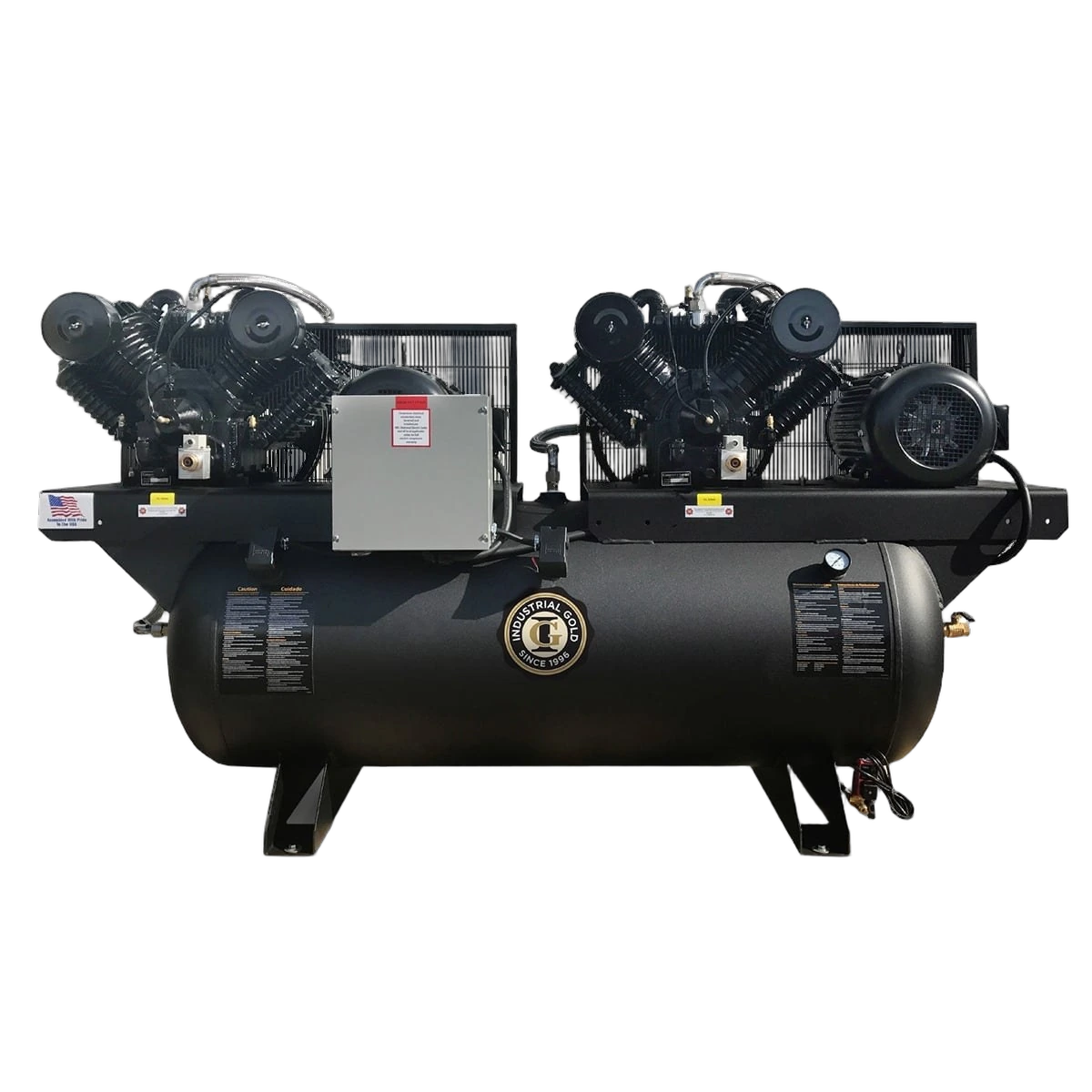

Industrial Gold DCI1021E240H

Industrial Gold DCI1021E240H is a 10 HP two-stage cast-iron reciprocating air compressor with a 200-gallon horizontal tank, rated to deliver 68 SCFM, wired for 208-230 V. List price is approximately $21,706 through industrial distributors. The DCI series targets heavy industrial duty with cast-iron cylinders, industrial-grade pump components, and a large 200-gallon receiver for sustained airflow. Note: 68 SCFM at 10 HP is notably high for a reciprocating unit and may reflect a duplex configuration or peak/intermittent rating; pressure rating (PSI) not confirmed in available source data. Key gaps: operating PSI not confirmed; lubrication type and stages not verified from primary source; OEM datasheet from industrialgoldair.com not located; noise level (dB), weight, and voltage variants not published.

HP
10
CFM
68 @ 175 PSI
Duty
continuous
Tank size
200 gal
Air output per horsepowerAirflow per motor HP
6.80CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage piston
58%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$319$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage recip
Cylinderduplex two-stage cast iron (2 pumps)
Pump RPM
Lubricationsplash-lubricated
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM68 @ 175 PSI
CFM / HP6.80
Cut-in / out
Tank fill
Est. draw8.8 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $3,151
Maintenance · yearlyEst. $250
Savings with Compressor Controller · yearlyEst. $725–$1,323
ELECTRICAL & FORM
Service
Voltage208-230
Amps
Motor
Motor RPM
Control
Startercentrifugal unloader
Weight
Form— · 200 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
127 · 10 HP
Sizing & pricevs. 127 in class
  • SCFM @ 10 HP68cfm
    17median 34.279
    +98.8% vs. median
  • Average price$21,706
    $3,400median $7,494$27k
    +189.6% vs. median
Efficiency vs. peersvs. 127 in class
  • CFM per HP6.8cfm/hp
    1.72median 3.427.96
    +98.8% vs. median
  • Price per CFM$319$/scfm
    $99median $210$517
    +51.4% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$20,621$21,344$22,068$22,791avg $21,706today-10d-20d-30d
