Industrial Gold · CI · TWO-STAGE PISTON

CI13GEH33

13 HP · gasoline · oil-lubricated · 2-stage
AVERAGE PRICE
$4,490
2 retailers · across retailers

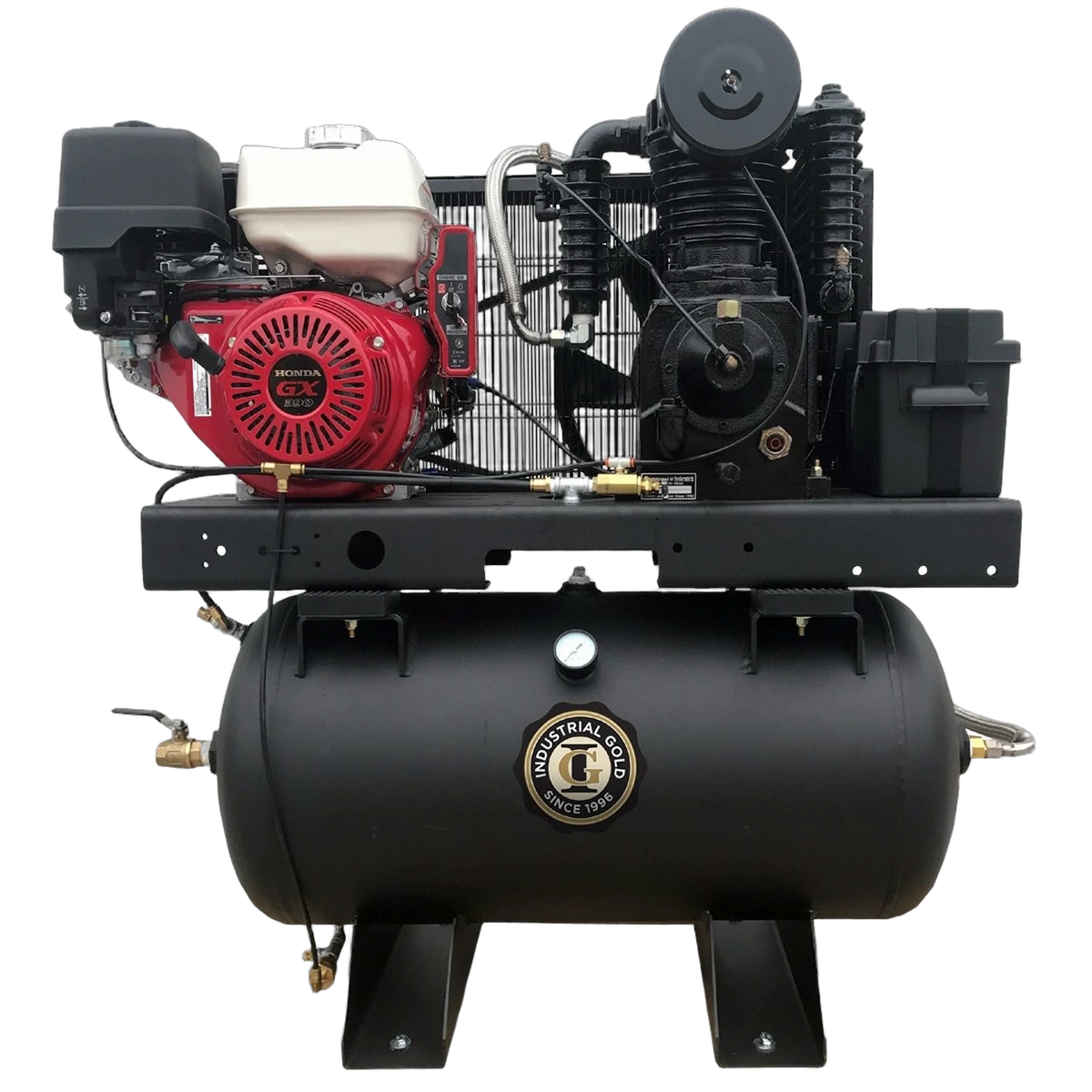

Industrial Gold CI13GEH33

The Industrial Gold CI13GEH33 is a 13 HP two-stage oil-lubricated reciprocating air compressor on a 30-gallon tank, delivering 18 CFM at 190 PSI maximum, wired for 220 V single-phase at $4,680. Two-stage compression reaches 190 PSI maximum — higher than most single-stage units — suited for tire service, industrial tools, and spray finishing where sustained high-pressure output is needed. Cast-iron two-stage pump construction is standard on the CI Series. Key gaps: CFM at PSI rating not confirmed; weight, noise level (dB), and OEM datasheet URL are not confirmed in current records.

HP
13
CFM
18 @ 175 PSI
Duty
continuous
Tank size
30 gal
Air output per horsepowerAirflow per motor HP
1.38CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 2-stage piston
67%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$239$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages2-stage recip
Cylinder
Pump RPM
Lubricationoil-lubricated
Oil
Sump
Pump life
Pump material
Head material
Intercooler
PERFORMANCE
Catalog CFM18 @ 175 PSI
CFM / HP1.38
Cut-in / out
Tank fill
Est. draw11.4 kW
COST & MAINTENANCE
Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric
Electric · yearlyEst. $4,096
Maintenance · yearlyEst. $325
Savings with Compressor Controller · yearlyEst. $942–$1,721
ELECTRICAL & FORM
Servicegasoline
Voltage
Amps
Motor
Motor RPM
Control
Starter
Weight600 lb
Form— · 30 gal
BUILD & ENVIRONMENT
Air outlet
Drain
Drain outlet
ASME tank
Made in USA
Noise
Op. temp
Dimensions
Ship weight
Warranty

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1655 units
Peer class
18 · 13 HP
Sizing & pricevs. 18 in class
  • SCFM @ 13 HP18cfm
    18median 23.232
    -22.4% vs. median
  • Average price$4,490
    $2,949median $4,257$6k
    +5.5% vs. median
Efficiency vs. peersvs. 18 in class
  • CFM per HP1.38cfm/hp
    1.38median 1.782.46
    -22.4% vs. median
  • Price per CFM$239$/scfm
    $124median $198$259
    +20.1% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$4,269$4,416$4,563$4,710avg $4,490today-10d-20d-30d
