What horsepower is the Husky C603H air compressor?

The Husky C603H is rated at 3.7 HP.

How much air does the Husky C603H produce?

The Husky C603H delivers 11.5 SCFM at 90 PSI.

What is the maximum pressure of the Husky C603H?

The Husky C603H has a maximum operating pressure of 175 PSI.

What size tank does the Husky C603H have?

The Husky C603H has a 60-gallon vertical tank.

Is the Husky C603H single-stage or two-stage?

The Husky C603H is a single-stage compressor.

What is the Husky C603H best for?

The Husky C603H is best suited for Stationary shop compressor for auto body, general fabrication, and heavy pneumatic tool use..

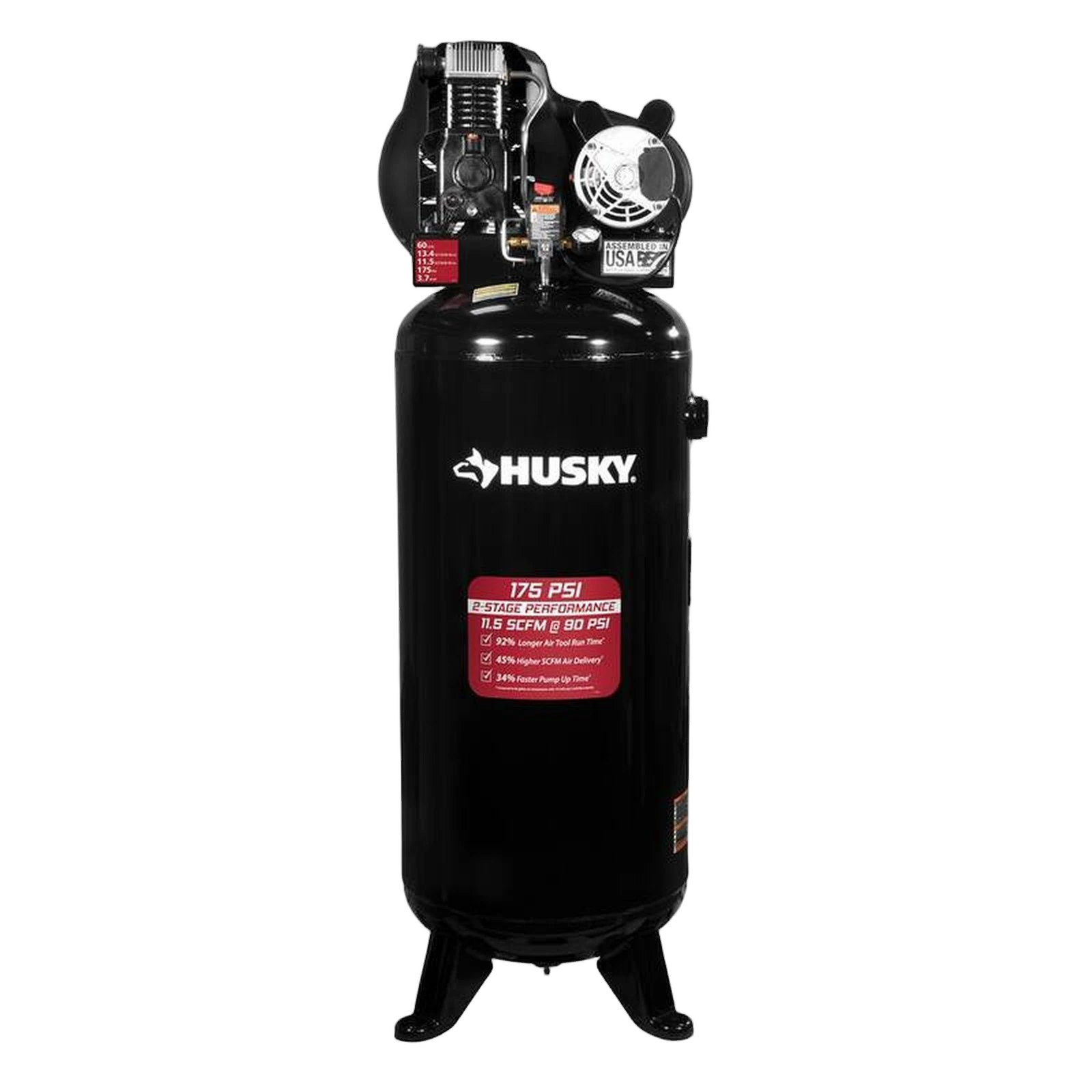

Husky C603H – 3.7 HP 60-Gallon Vertical Air Compressor

Husky C603H is a 3.7 HP industrial reciprocating piston compressor delivering 11.5 SCFM at 90 PSI on a 60-gallon vertical tank, running 230V single-phase. Rated for 100% continuous duty.

3.70

CFM

11.5 @ 90 PSI

Duty

— continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

3.11CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage piston

58%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$78$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage recip

Cylinder—

Pump RPM3450 rpm

Lubrication—

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM11.5 @ 90 PSI

CFM / HP3.11

Cut-in / out—

Tank fill—

Est. draw3.2 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,166

Maintenance · yearlyEst. $93

Savings with Compressor Controller · yearlyEst. $268–$490

ELECTRICAL & FORM

Service230V 1-Ph

Voltage230V

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight208 lb

FormVertical · 60 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1/2 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USA—

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 3.7 HP

Sizing & pricevs. 1 in class

SCFM @ 3.7 HP11.5cfm
11median 11.512
0% vs. median
Average price$899
$899median $899$900
0% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP3.11cfm/hp
3.11median 3.114.11
0% vs. median
Price per CFM$78$/scfm
$78median $78$79
0% vs. median
