What horsepower is the Hertz HVD22 Base-230-175 air compressor?

The Hertz HVD22 Base-230-175 is rated at 30 HP.

How much air does the Hertz HVD22 Base-230-175 produce?

The Hertz HVD22 Base-230-175 delivers 112 SCFM at 175 PSI.

What size tank does the Hertz HVD22 Base-230-175 have?

The Hertz HVD22 Base-230-175 has a 0-gallon tank.

Is the Hertz HVD22 Base-230-175 single-stage or two-stage?

The Hertz HVD22 Base-230-175 is a single-stage compressor.

What voltage does the Hertz HVD22 Base-230-175 require?

The Hertz HVD22 Base-230-175 runs on 230/3.

Is the Hertz HVD22 Base-230-175 oil-free or oil-lubricated?

The Hertz HVD22 Base-230-175 is oil-flooded.

What is the Hertz HVD22 Base-230-175 best for?

The Hertz HVD22 Base-230-175 is best suited for Variable-speed compressed air for mid-to-large industrial facilities; VSD matches output to demand and cuts energy cost.

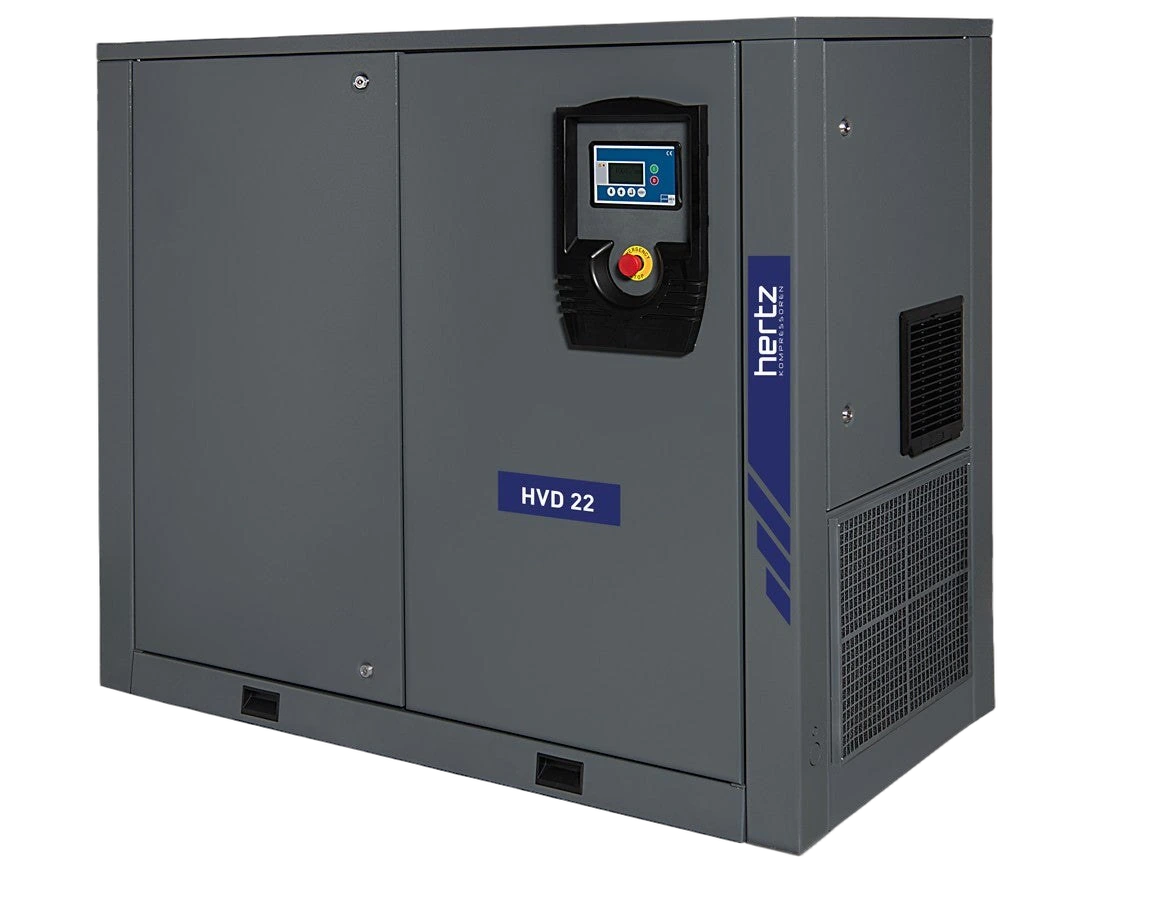

Hertz HVD22 Base-230-175

The Hertz HVD22 Base-230-175 is a 30 HP variable-speed drive (VFD) oil-flooded rotary screw air compressor base-mounted, delivering 137 SCFM at 100 PSI on 230V three-phase. Single-stage screw element. Weighs 1,429 lb. The HVD Series designation indicates variable-frequency drive control for energy savings by matching motor output to actual demand — reducing power consumption during low-demand periods versus fixed-speed screw units. Suited for manufacturing and process applications with variable compressed air demand profiles. Priced at $25,505 (Compressed Air Advisors, verified 2026-05-19); dealer quote typical. No OEM product page located on hertz-kompressoren.com at time of cataloging; specifications sourced from authorized distributor. Gaps: full-load amperage, sound level (dBA), and turndown ratio not confirmed. Shipping weight is 1429 lb. Motor: 30 HP, 230V 3-phase, VFD-controlled.

CFM

112 @ 175 PSI

Duty

— continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

3.73CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$228$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM112 @ 175 PSI

CFM / HP3.73

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

ELECTRICAL & FORM

Serviceelectric

Voltage230/3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1429 lb

Form—

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 35 · 30 HP

Sizing & pricevs. 35 in class

SCFM @ 30 HP112cfm
94median 120141
-6.7% vs. median
Average price$25,505
$15,452median $24,529$35k
+4% vs. median

Efficiency vs. peersvs. 35 in class

CFM per HP3.73cfm/hp
3.13median 44.7
-6.7% vs. median
Price per CFM$228$/scfm
$120median $195$298
+16.2% vs. median
