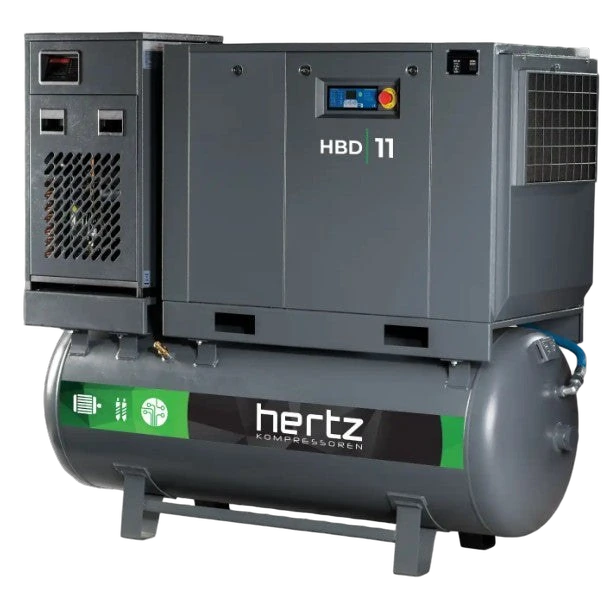

Hertz HVD11-TMD-230V-100 is a 15 HP variable-speed drive (VSD) oil-flooded rotary screw compressor with integrated refrigerated dryer delivering 66 SCFM at 100 PSI (19–66 CFM variable range) from a 120-gallon horizontal tank on 230V three-phase power. The VSD trims motor speed to match actual air demand, cutting energy consumption versus fixed-speed screws running unloaded. The factory-integrated TMD refrigerant dryer eliminates a separate dryer purchase. Key specs: 15 HP, 66 SCFM at 100 PSI, VSD range 19–66 CFM, 120-gal tank, 230V/3ph. Suited for shops and light manufacturing with variable demand profiles where energy efficiency and clean dry air are priorities. Available from Hertz Kompressoren authorized distributors.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 44 · 15 HP
- SCFM @ 15 HP66cfm20median 55.571+19% vs. median
- Average price$21,192$9,196median $14,432$25k+46.8% vs. median
- CFM per HP4.4cfm/hp1.33median 3.734.73+18.1% vs. median
- Price per CFM$321$/scfm$153median $251$905+27.8% vs. median
