Hertz · SINGLE-STAGE ROTARY SCREW

HVD11 Base- 230-150

15 HP · electric · oil-flooded · 1-stage
AVERAGE PRICE
$11,483
2 retailers · in stock

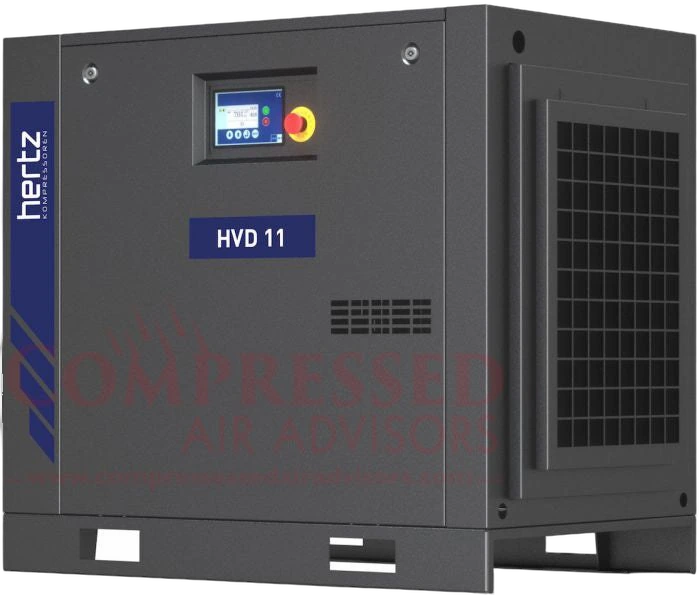

Hertz HVD11 Base- 230-150

Hertz HVD11 Base- 230-150 is a 15 HP oil-flooded rotary screw air compressor delivering 66 SCFM at 100 PSI, rated to 150 PSI maximum, wired for 230V three-phase. Base-mount configuration (no integral tank), 683 lbs. Verified list price $14,291. The HVD11 base-mount suits installations where a separate receiver tank is already in place or where flexible placement requires a decoupled compressor-tank arrangement. Remaining gaps: duty cycle (likely 100% for screw type), noise level (dB), and tank size recommendation not published; OEM datasheet URL not confirmed.

HP
15
CFM
56 @ 150 PSI
Duty
— continuous
Tank size
— gal
Air output per horsepowerAirflow per motor HP
3.73CFM/HP
Poor 2.8Typical 3.15Good 3.5
Isentropic efficiencyClass median · 1-stage rotary screw
75%
Poor <50Good 70Best 92
Price per cubic foot · minuteVerified retailer price
$155$/SCFM
Good $180Typical $211High $260
PUMP & DRIVE
Stages1-stage screw
Cylinder—
Pump RPM—
Lubricationoil-flooded
Oil—
Sump—
Pump life—
Pump material—
Head material—
Intercooler—
PERFORMANCE
Catalog CFM56 @ 150 PSI
CFM / HP3.73
Cut-in / out—
Tank fill—
Est. draw13.2 kW
COST & MAINTENANCE
Electric · yearlyEst. $4,727
Maintenance · yearlyEst. $375
ELECTRICAL & FORM
Serviceelectric
Voltage230/3
Amps—
Motor—
Motor RPM—
Control—
Starter—
Weight683 lb
Form—
BUILD & ENVIRONMENT
Air outlet—
Drain—
Drain outlet—
ASME tank—
Made in USA—
Noise—
Op. temp—
Dimensions—
Ship weight—
Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog
1708 units
Peer class
45 · 15 HP
Sizing & pricevs. 45 in class
  • SCFM @ 15 HP56cfm
    20median 55.971
    +0.2% vs. median
  • Average price$11,483
    $9,196median $14,291$22k
    -19.7% vs. median
Efficiency vs. peersvs. 45 in class
  • CFM per HP3.73cfm/hp
    1.33median 3.734.73
    +0.2% vs. median
  • Price per CFM$255$/scfm
    $153median $251$905
    +1.6% vs. median

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

$8,225$10,397$12,568$14,740avg $11,483today-10d-20d-30d
