What horsepower is the Hertz HBD 15 TMD -230-150 air compressor?

The Hertz HBD 15 TMD -230-150 is rated at 20 HP.

How much air does the Hertz HBD 15 TMD -230-150 produce?

The Hertz HBD 15 TMD -230-150 delivers 75 SCFM at 125 PSI.

What is the maximum pressure of the Hertz HBD 15 TMD -230-150?

The Hertz HBD 15 TMD -230-150 has a maximum operating pressure of 150 PSI.

What size tank does the Hertz HBD 15 TMD -230-150 have?

The Hertz HBD 15 TMD -230-150 has a 120-gallon tank.

Is the Hertz HBD 15 TMD -230-150 single-stage or two-stage?

The Hertz HBD 15 TMD -230-150 is a single-stage compressor.

What voltage does the Hertz HBD 15 TMD -230-150 require?

The Hertz HBD 15 TMD -230-150 runs on 230V/3ph.

Is the Hertz HBD 15 TMD -230-150 oil-free or oil-lubricated?

The Hertz HBD 15 TMD -230-150 is oil-flooded.

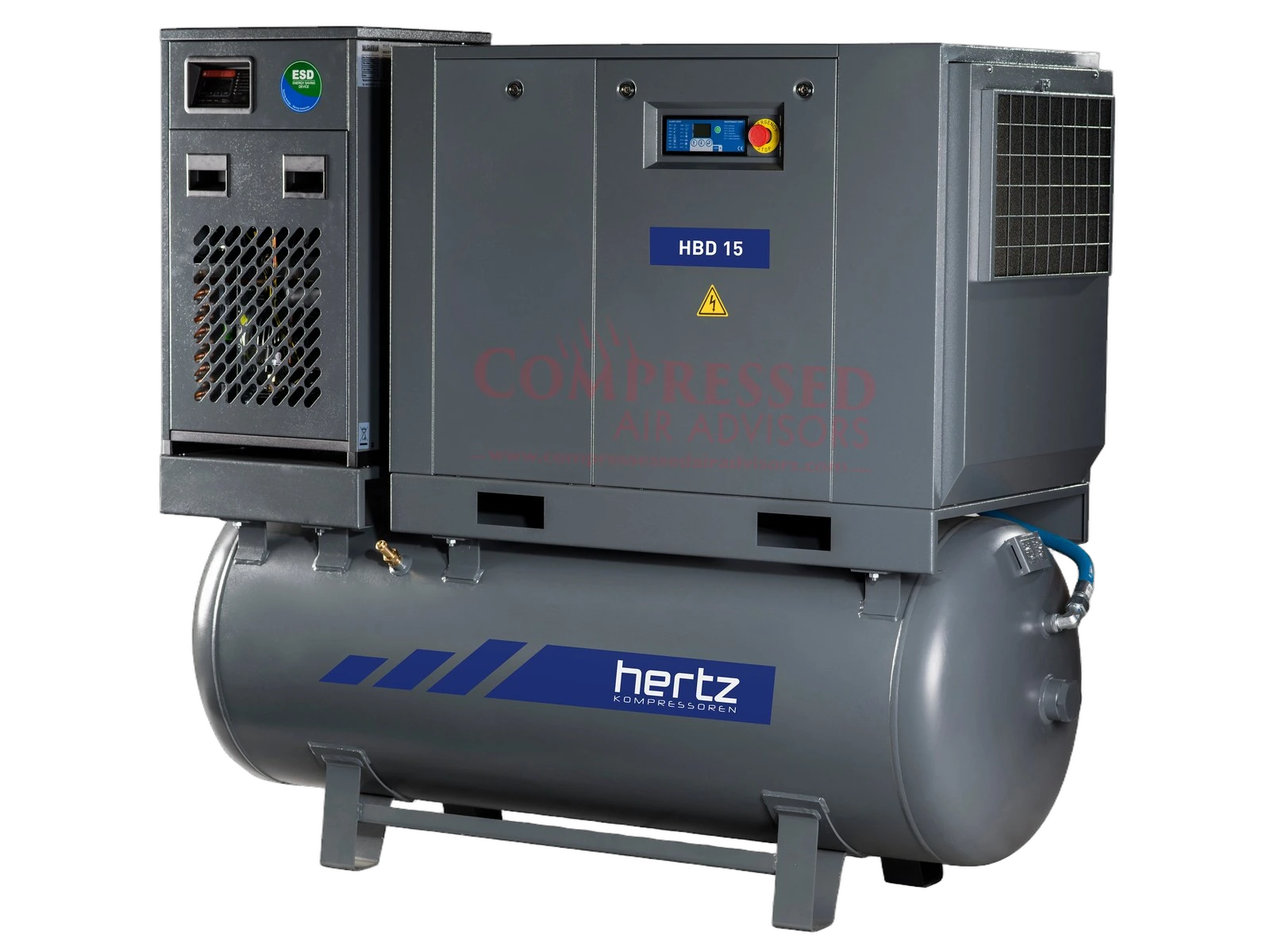

Hertz HBD 15 TMD -230-150 – 20 HP 120-Gal Screw Compressor

Hertz HBD 15 TMD -230-150 is a 20 HP oil-flooded rotary screw air compressor delivering 75 SCFM @ 125 PSI on a 120-gallon tank at 230V three-phase. Weighs 1,239 lbs. Designed for continuous-duty plant air and manufacturing cells where sustained high-volume supply is required. Maximum pressure is 125 PSI. MPN HBD 15 TMD -230-150. Pricing is quote-only. Duty cycle data not confirmed in current sources.

CFM

75 @ 125 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.75CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$213$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM75 @ 125 PSI

CFM / HP3.75

Cut-in / out—

Tank fill—

Est. draw17.6 kW

COST & MAINTENANCE

Electric · yearlyEst. $6,302

Maintenance · yearlyEst. $500

ELECTRICAL & FORM

Serviceelectric

Voltage230V/3ph

Amps—

Motor—

Motor RPM—

Controlmicroprocessor

Starter—

Weight1239 lb

Form— · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise72 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 42 · 20 HP

Sizing & pricevs. 42 in class

SCFM @ 20 HP75cfm
20median 7892
-3.8% vs. median
Average price$15,961
$10,318median $17,526$25k
-8.9% vs. median

Efficiency vs. peersvs. 42 in class

CFM per HP3.75cfm/hp
1median 3.94.6
-3.8% vs. median
Price per CFM$213$/scfm
$170median $226$1,262
-6% vs. median

Where this is sold

Compressed Air Advisors
Verified 2 months ago
$15,961
Lowest

Find an installer / dealer near youAuthorized Hertz dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Compressed Air Advisors
