What horsepower is the Champion LV04PDRHS-12 air compressor?

The Champion LV04PDRHS-12 is rated at 5 HP.

How much air does the Champion LV04PDRHS-12 produce?

The Champion LV04PDRHS-12 delivers 39 SCFM at 100 PSI.

What is the maximum pressure of the Champion LV04PDRHS-12?

The Champion LV04PDRHS-12 has a maximum operating pressure of 150 PSI.

What size tank does the Champion LV04PDRHS-12 have?

The Champion LV04PDRHS-12 has a 120-gallon horizontal tank.

Is the Champion LV04PDRHS-12 single-stage or two-stage?

The Champion LV04PDRHS-12 is a single-stage compressor.

What voltage does the Champion LV04PDRHS-12 require?

The Champion LV04PDRHS-12 runs on 208-230V, 1-phase.

Is the Champion LV04PDRHS-12 oil-free or oil-lubricated?

The Champion LV04PDRHS-12 is oil-flooded.

What is the duty cycle of the Champion LV04PDRHS-12?

The Champion LV04PDRHS-12 has a 100% duty cycle.

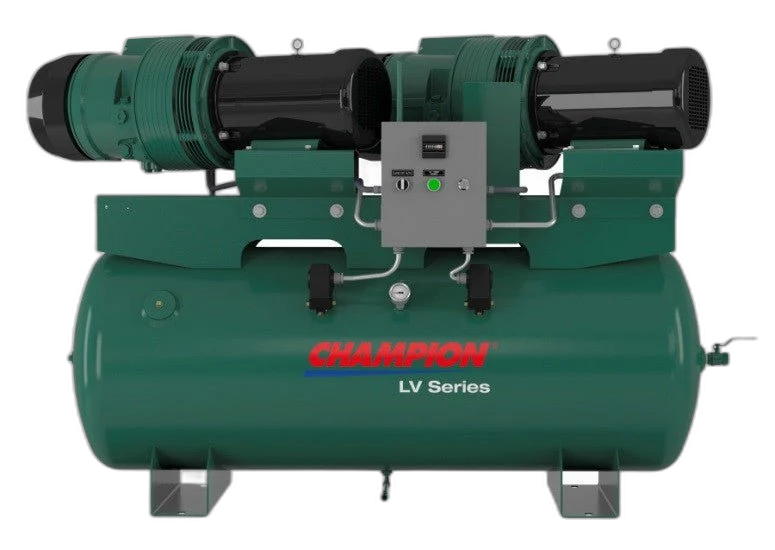

Champion LV04PDRHS-12 – 5 HP 120-Gal Rotary Vane Compressor

Champion LV04PDRHS-12 is a duplex rotary-vane (Champion/Hydrovane) air compressor rated 5 HP per airend (10 HP duplex) delivering 39 CFM at 100 PSI on a 120-gallon tank. It is direct-drive with a cast-iron TEFC motor turning 1760 RPM, oil-flooded with CS300 vane lubricant, and rated for continuous 100% duty — quiet, slow-speed running suited to automotive service and light commercial shops.

CFM

39 @ 100 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

7.80CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary vane

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$354$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage vane

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM39 @ 100 PSI

CFM / HP7.80

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Serviceelectric

Voltage208-230V, 1-phase

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight845 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 1 · 5 HP

Sizing & pricevs. 1 in class

SCFM @ 5 HP39cfm
39median 3940
0% vs. median
Average price$14,071
$13,807median $13,807$14k
+1.9% vs. median

Efficiency vs. peersvs. 1 in class

CFM per HP7.8cfm/hp
7.8median 7.88.8
0% vs. median
Price per CFM$354$/scfm
$354median $354$355
-0% vs. median
