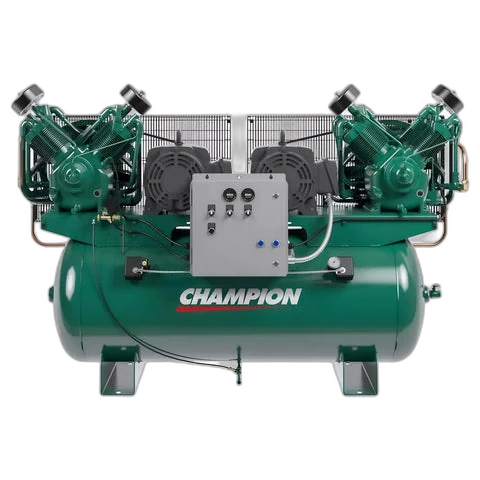

Champion HR7D-12 is a 7.5 HP duplex two-stage reciprocating air compressor on a 120-gallon horizontal ASME tank, delivering 51.2 SCFM at 175 PSI, wired for 208/230/460V single- or three-phase. The duplex configuration pairs two R30 cast-iron splash-lubricated pumps on a shared tank, providing lead-lag operation for continuous production environments. At 1,305 lbs. Suited for automotive shops, body shops, and manufacturing cells requiring continuous two-pump air supply. Note: may also appear under Gardner Denver branding. Confirm final output and electrical specs against Champion HR7D-12 duplex datasheet.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1708 units
- Peer class
- 182 · 7.5 HP
- SCFM @ 7.5 HP51.2cfm20median 2457+113.3% vs. median
- Average price$13,075$1,698median $5,117$19k+155.5% vs. median
- CFM per HP6.83cfm/hp2.67median 3.27.65+113.3% vs. median
- Price per CFM$248$/scfm$69median $211$632+17.1% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
