What horsepower is the Champion HR25-12ADV air compressor?

The Champion HR25-12ADV is rated at 25 HP.

How much air does the Champion HR25-12ADV produce?

The Champion HR25-12ADV delivers 90.7 SCFM at 175 PSI.

What size tank does the Champion HR25-12ADV have?

The Champion HR25-12ADV has a 120-gallon horizontal tank.

Is the Champion HR25-12ADV single-stage or two-stage?

The Champion HR25-12ADV is a two-stage compressor.

What voltage does the Champion HR25-12ADV require?

The Champion HR25-12ADV runs on 208V/230V 3-phase.

Is the Champion HR25-12ADV oil-free or oil-lubricated?

The Champion HR25-12ADV is oil-lubricated.

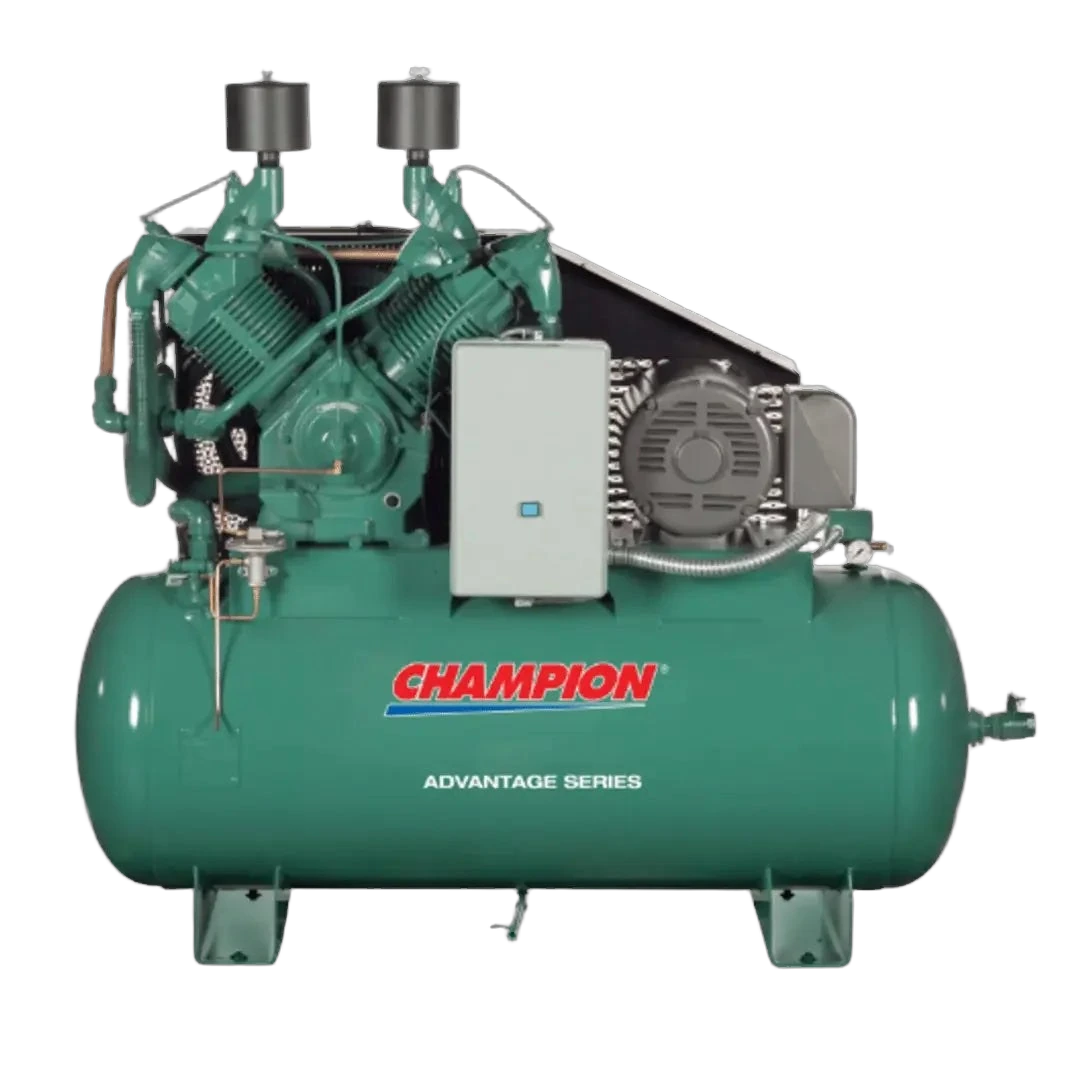

Champion HR25-12ADV – 25 HP 120-Gallon Air Compressor

Champion HR25-12ADV is a 25 HP two-stage reciprocating air compressor on a 120-gallon horizontal ASME tank, delivering 90.7 SCFM at 175 PSI, wired for 208V/230V three-phase. At 1,450 lbs, this Advantage Series simplex unit uses a splash-lubricated cast-iron pump and is built for large fabrication shops, industrial production cells, and multi-bay automotive service. The HR Series is Champion’s heavy-duty horizontal reciprocating line. Note: this unit may also appear in Gardner Denver product listings as the HR25-12ADV — Champion and Gardner Denver share manufacturing lineage. Confirm final specs against the Champion HR25 datasheet.

CFM

90.7 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.63CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$159$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationoil-lubricated

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercoolerfinned-tube between-stage

PERFORMANCE

Catalog CFM90.7 @ 175 PSI

CFM / HP3.63

Cut-in / out—

Tank fill—

Est. draw21.9 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $7,878

Maintenance · yearlyEst. $625

Savings with Compressor Controller · yearlyEst. $1,812–$3,309

ELECTRICAL & FORM

Serviceelectric

Voltage208V/230V 3-phase

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1450 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 23 · 25 HP

Sizing & pricevs. 23 in class

SCFM @ 25 HP90.7cfm
82median 88192
+3.1% vs. median
Average price$14,902
$8,889median $17,207$50k
-13.4% vs. median

Efficiency vs. peersvs. 23 in class

CFM per HP3.63cfm/hp
3.3median 3.567.68
+1.9% vs. median
Price per CFM$159$/scfm
$99median $208$474
-23.7% vs. median

Where this is sold

Find an installer / dealer near youAuthorized Champion dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

mechanicsuperstore.com

Nuvair

Mile-X Equipment
