What horsepower is the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) air compressor?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) is rated at 30 HP.

How much air does the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) produce?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) delivers 111.6 SCFM at 175 PSI.

What size tank does the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) have?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) has a 200-gallon tank.

Is the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) single-stage or two-stage?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) is a two-stage compressor.

What voltage does the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) require?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) runs on 200/230/460.

What is the duty cycle of the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2)?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) has a 100% duty cycle.

What is the FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) best for?

The FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2) is best suited for Heavy-duty industrial, machine shops, large dealership/body shops.

FS-Curtis ML15 Duplex – 30 HP 200-Gallon Air Compressor

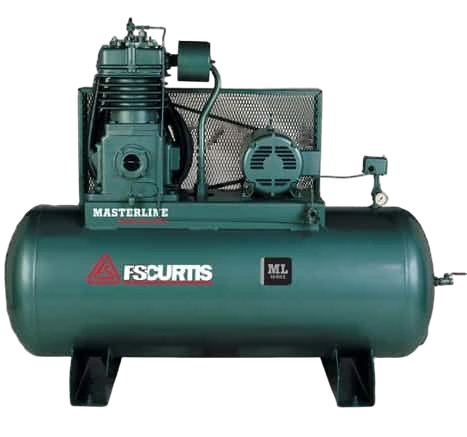

FS-Curtis ML15 Masterline Duplex (200 gal, FML15C89D2)

The FS-Curtis ML15 Masterline Duplex UltraPack tops the FS-Curtis pressure-lubricated duplex range: two 15 HP motors and two Masterline pressure-lubricated two-stage pumps on a 200-gallon ASME horizontal tank. Configuration codes FML15C89D2S (standard) and FML15C89D2U (UltraPack with aftercooler) ship in 200V, 230V, or 460V three-phase. The Centro-Ring lubrication system delivers oil through rifle-drilled crankshafts for extended pump life under heavy duty. Aimed at machine shops, industrial paint, and large auto dealerships. Combined CFM rated approximately 100+ ACFM at 175 PSI but specific value not confirmed.

CFM

111.6 @ 175 PSI

Duty

100% continuous

Tank size

200 gal

Air output per horsepowerAirflow per motor HP

3.72CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$241$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

CylinderMasterline pressure-lubricated cast iron x 2

Pump RPM—

Lubricationpressure

OilISO 100 non-detergent compressor oil

Sump—

Pump life40,000 hrs

Pump material—

Head material—

Intercoolerpremium finned intercooler

PERFORMANCE

Catalog CFM111.6 @ 175 PSI

CFM / HP3.72

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

Savings with Compressor Controller · yearlyEst. $2,174–$3,970

ELECTRICAL & FORM

Service—

Voltage200/230/460

Amps—

Motor—

Motor RPM1750 rpm

Controlautomatic alternator panel, lead/lag

Startermagnetic with alternator

Weight2000 lb

Form— · 200 gal · 225 PSI tank rating

BUILD & ENVIRONMENT

Air outlet1 in NPT

DrainManual ball valve standard

Drain outlet—

ASME tankYes

Made in USAYes

Noise—

Op. temp40–104 °F

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 24 · 30 HP

Sizing & pricevs. 24 in class

SCFM @ 30 HP111.6cfm
77median 99.1203
+12.7% vs. median
Average price$26,888
$11,317median $20,778$45k
+29.4% vs. median

Efficiency vs. peersvs. 24 in class

CFM per HP3.72cfm/hp
2.58median 3.376.79
+10.4% vs. median
Price per CFM$200$/scfm
$116median $187$460
+6.5% vs. median
