What horsepower is the FS-Curtis FRB30SU1 air compressor?

The FS-Curtis FRB30SU1 is rated at 30 HP.

How much air does the FS-Curtis FRB30SU1 produce?

The FS-Curtis FRB30SU1 delivers 94 SCFM at 175 PSI.

What size tank does the FS-Curtis FRB30SU1 have?

The FS-Curtis FRB30SU1 has a 120-gallon horizontal tank.

Is the FS-Curtis FRB30SU1 single-stage or two-stage?

The FS-Curtis FRB30SU1 is a single-stage compressor.

What voltage does the FS-Curtis FRB30SU1 require?

The FS-Curtis FRB30SU1 runs on 230/3.

Is the FS-Curtis FRB30SU1 oil-free or oil-lubricated?

The FS-Curtis FRB30SU1 is oil-flooded.

What is the FS-Curtis FRB30SU1 best for?

The FS-Curtis FRB30SU1 is best suited for Continuous-duty industrial compressed-air supply with on-board storage.

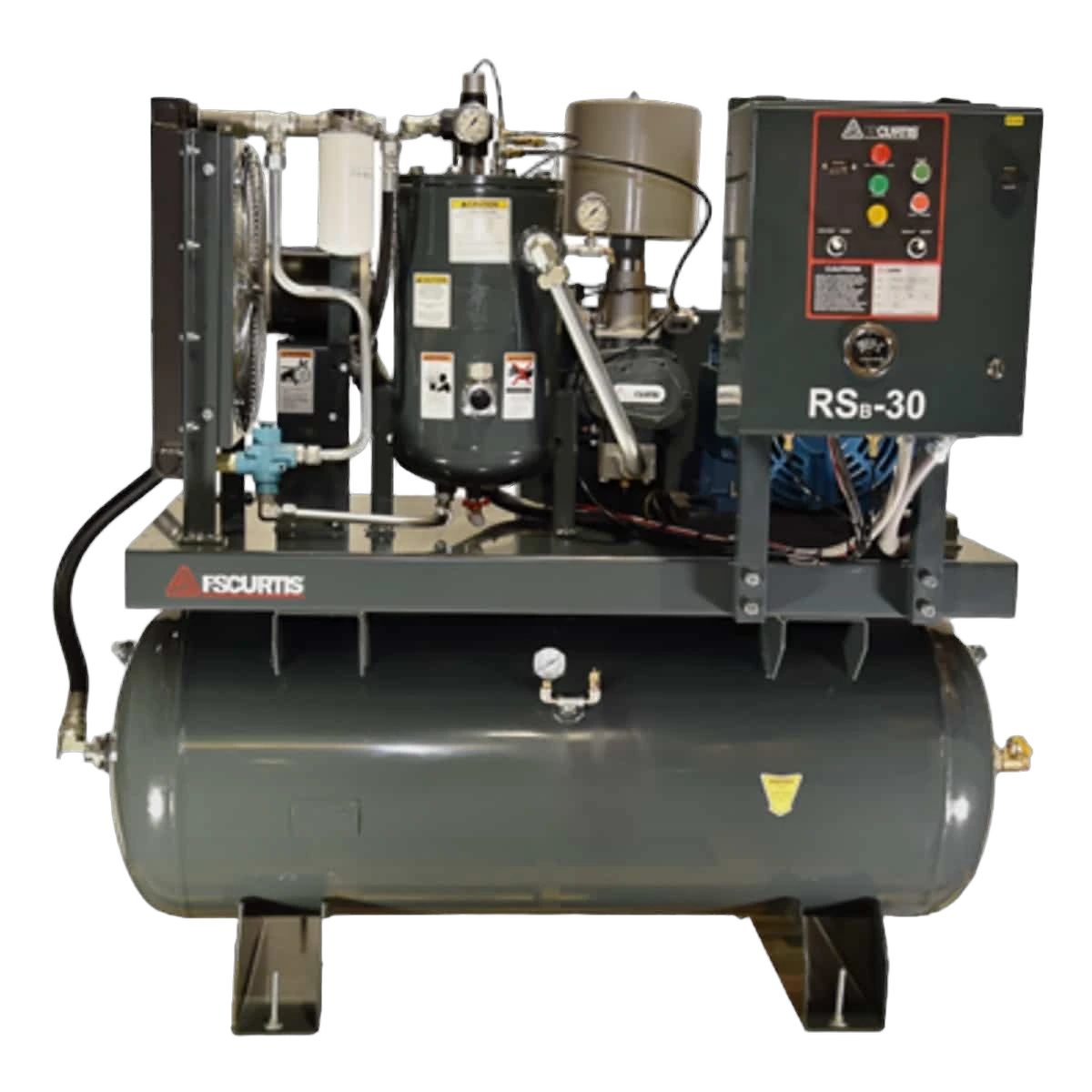

FS-Curtis FRB30SU1 – 30 HP 120-Gallon Screw Air Compressor

The FS-Curtis FRB30SU1 is an RSB-Series 30 HP belt-drive rotary screw air compressor on a 120-gallon open tank-mounted frame. It delivers 94 SCFM at 175 PSI (134 SCFM at 100 PSI), runs 3-phase power, and carries the FS-Curtis 5-year / 10-year airend NxGEN warranty.

CFM

94 @ 175 PSI

Duty

— continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.13CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$276$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM94 @ 175 PSI

CFM / HP3.13

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

ELECTRICAL & FORM

Serviceelectric

Voltage230/3

Amps—

Motor—

Motor RPM—

Controlfixed speed

Starter—

Weight1420 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 35 · 30 HP

Sizing & pricevs. 35 in class

SCFM @ 30 HP94cfm
94median 120141
-21.7% vs. median
Average price$25,903
$16,139median $24,529$35k
+5.6% vs. median

Efficiency vs. peersvs. 35 in class

CFM per HP3.13cfm/hp
3.13median 44.7
-21.7% vs. median
Price per CFM$276$/scfm
$120median $196$298
+39.9% vs. median

Where this is sold

Compressors Now
Verified 2 months ago
$25,903
Lowest

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Compressors Now
