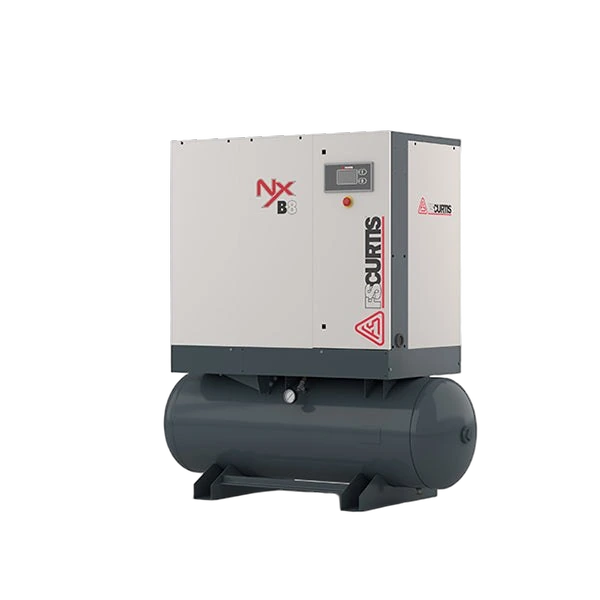

FS-Curtis FNV15B8U4HXPC is a 20 HP variable-speed rotary screw air compressor delivering 80 SCFM at 125 PSI on a 240-gallon horizontal tank, wired 230V single-phase, oil-flooded, rated for 100% duty cycle. Part of FS-Curtis’s FNV/NXV15 Ultra Pack series, the U4H configuration integrates additional accessories for a complete compressed-air system. Variable-speed drive (VSD) modulates motor speed to reduce energy consumption. List price verified at $23,699 (Compressed Air Advisors, 2026-05-21). Ultra Pack (U) adds approximately $2,145 over the standard B8X4 configuration (FNV15B8X4HXPC).
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 42 · 20 HP
- SCFM @ 20 HP80cfm20median 7892+2.6% vs. median
- Average price$23,699$10,318median $17,526$25k+35.2% vs. median
- CFM per HP4cfm/hp1median 3.94.6+2.6% vs. median
- Price per CFM$296$/scfm$170median $226$1,262+30.9% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
