What horsepower is the FS-Curtis FNV11B8U4HXPC air compressor?

The FS-Curtis FNV11B8U4HXPC is rated at 15 HP.

How much air does the FS-Curtis FNV11B8U4HXPC produce?

The FS-Curtis FNV11B8U4HXPC delivers 60 SCFM at 125 PSI.

What size tank does the FS-Curtis FNV11B8U4HXPC have?

The FS-Curtis FNV11B8U4HXPC has a 120-gallon horizontal tank.

Is the FS-Curtis FNV11B8U4HXPC single-stage or two-stage?

The FS-Curtis FNV11B8U4HXPC is a single-stage compressor.

What voltage does the FS-Curtis FNV11B8U4HXPC require?

The FS-Curtis FNV11B8U4HXPC runs on 230/1.

Is the FS-Curtis FNV11B8U4HXPC oil-free or oil-lubricated?

The FS-Curtis FNV11B8U4HXPC is oil-flooded.

What is the duty cycle of the FS-Curtis FNV11B8U4HXPC?

The FS-Curtis FNV11B8U4HXPC has a 100% duty cycle.

What is the FS-Curtis FNV11B8U4HXPC best for?

The FS-Curtis FNV11B8U4HXPC is best suited for FS-Curtis FNV11B8U4HXPC screw air compressor for industrial use.

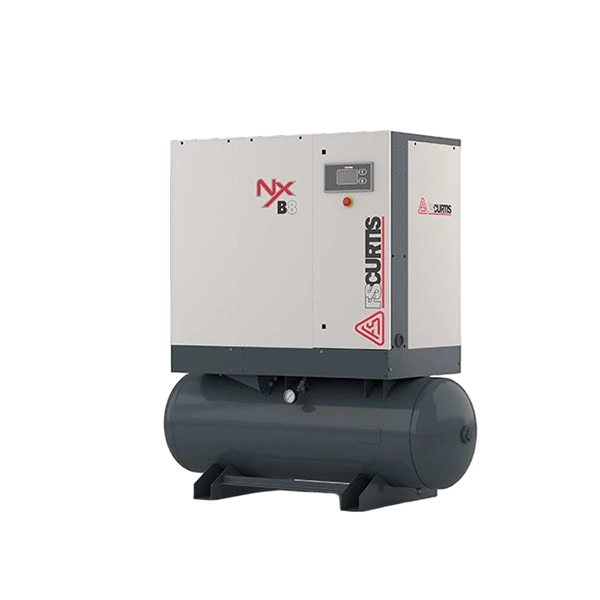

FS-Curtis FNV11B8U4HXPC – 15 HP 120-Gal Screw Air Compressor

FS-Curtis FNV11B8U4HXPC is a 15 HP variable-speed rotary screw air compressor delivering 60 SCFM at 125 PSI on a 120-gallon horizontal tank, wired for 230V single-phase. Oil-flooded lubrication and single-stage compression support continuous-duty operation in manufacturing cells, woodworking shops, and sustained plant-air applications where reciprocating compressors fall short on duty cycle. The NxV11 Ultra Pack configuration integrates the compressor and tank in a single unit priced at approximately $18,049 (Compressed Air Advisors, May 2021). Known gaps: weight, noise level (dB), and primary-source OEM datasheet URL not confirmed for this exact MPN.

CFM

60 @ 125 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

4CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$301$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM60 @ 125 PSI

CFM / HP4

Cut-in / out—

Tank fill—

Est. draw13.2 kW

COST & MAINTENANCE

Electric · yearlyEst. $4,727

Maintenance · yearlyEst. $375

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1017 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 44 · 15 HP

Sizing & pricevs. 44 in class

SCFM @ 15 HP60cfm
20median 55.571
+8.2% vs. median
Average price$18,049
$9,196median $14,432$25k
+25.1% vs. median

Efficiency vs. peersvs. 44 in class

CFM per HP4cfm/hp
1.33median 3.734.73
+7.3% vs. median
Price per CFM$301$/scfm
$153median $251$905
+19.7% vs. median
