What horsepower is the FS-Curtis FNB22CXD air compressor?

The FS-Curtis FNB22CXD is rated at 30 HP.

How much air does the FS-Curtis FNB22CXD produce?

The FS-Curtis FNB22CXD delivers 116.1 SCFM at 125 PSI.

What is the maximum pressure of the FS-Curtis FNB22CXD?

The FS-Curtis FNB22CXD has a maximum operating pressure of 175 PSI.

What size tank does the FS-Curtis FNB22CXD have?

The FS-Curtis FNB22CXD has a 0-gallon horizontal tank.

Is the FS-Curtis FNB22CXD single-stage or two-stage?

The FS-Curtis FNB22CXD is a single-stage compressor.

What voltage does the FS-Curtis FNB22CXD require?

The FS-Curtis FNB22CXD runs on 230/460-3.

Is the FS-Curtis FNB22CXD oil-free or oil-lubricated?

The FS-Curtis FNB22CXD is oil-flooded.

What is the duty cycle of the FS-Curtis FNB22CXD?

The FS-Curtis FNB22CXD has a 100% duty cycle.

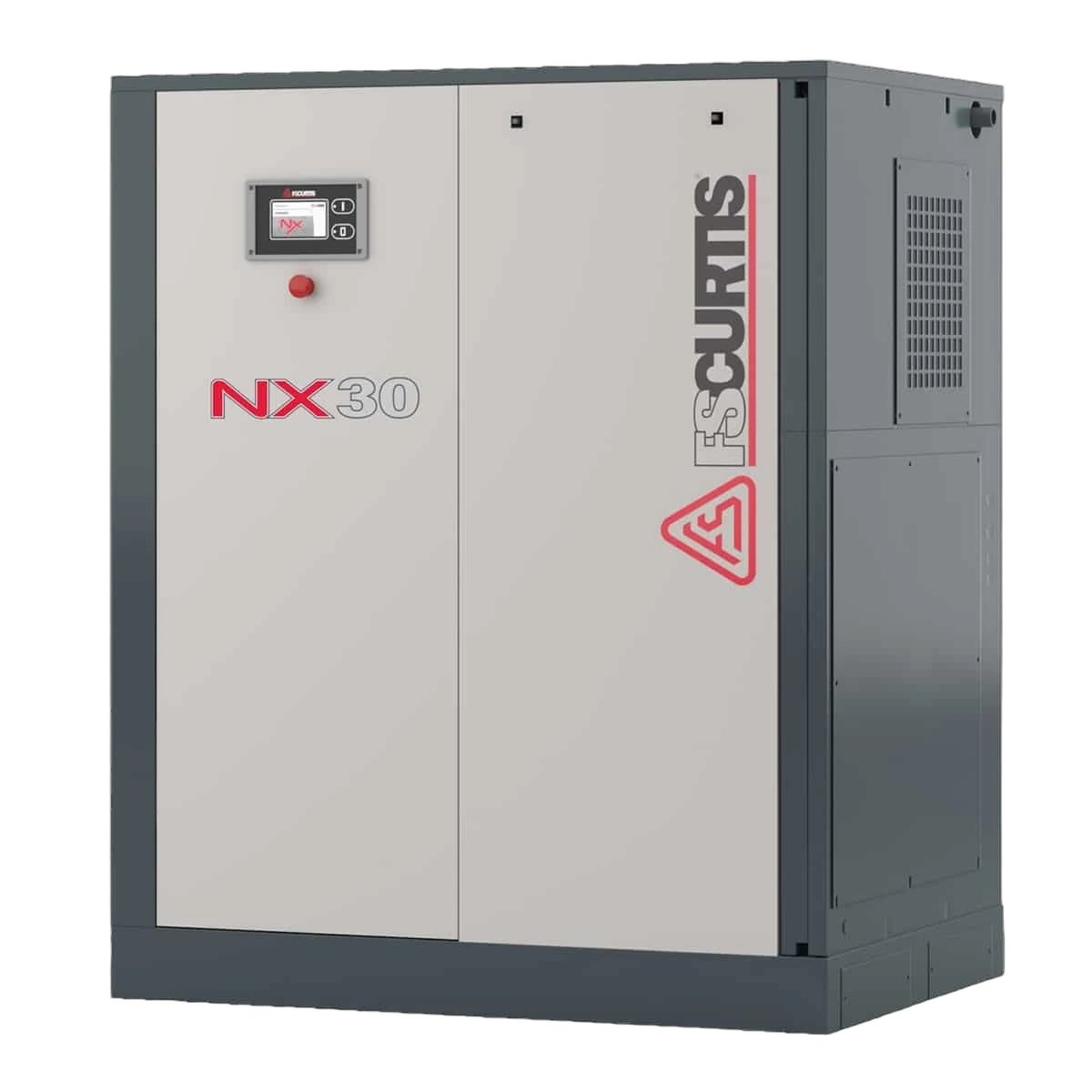

FS-Curtis FNB22CXD

The FS-Curtis FNB22CXD (NxB22) is a 30-HP single-stage oil-injected rotary screw air compressor delivering 116.1 CFM at 125 PSI (up to 175 PSI max), in a base-mounted (tankless) configuration with integrated refrigerated dryer. It uses a belt-driven airend with air cooling on a 3-phase motor. Rated for 100% continuous duty. Backed by the NXGEN 5-year / 10-year airend warranty.

CFM

116.1 @ 125 PSI

Duty

100% continuous

Tank size

— gal

Air output per horsepowerAirflow per motor HP

3.87CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 1-stage rotary screw

75%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$236$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages1-stage screw

Cylinder—

Pump RPM—

Lubricationoil-flooded

Oilcompressor oil (oil-injected)

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM116.1 @ 125 PSI

CFM / HP3.87

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

ELECTRICAL & FORM

Serviceelectric

Voltage230/460-3

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1592 lb

FormHorizontal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise72 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 35 · 30 HP

Sizing & pricevs. 35 in class

SCFM @ 30 HP116.1cfm
94median 120141
-3.3% vs. median
Average price$27,381
$16,139median $24,529$35k
+11.6% vs. median

Efficiency vs. peersvs. 35 in class

CFM per HP3.87cfm/hp
3.13median 44.7
-3.3% vs. median
Price per CFM$236$/scfm
$120median $195$298
+20.4% vs. median

Where this is sold

Compressors Now
Verified 2 months ago
$27,381
Lowest
