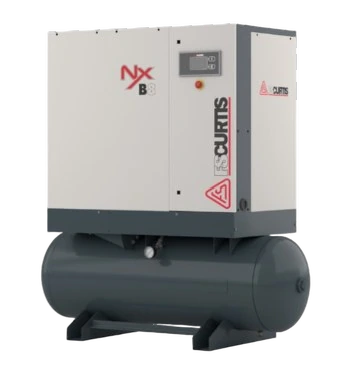

The FS-Curtis FNB22C1X3HXXX-B is a 30 HP fixed-speed oil-flooded rotary screw air compressor (NxB22 Series) base-mounted on a 120-gallon horizontal receiver, delivering 134 SCFM at 100 PSI maximum on 208–230V single-phase. Single-stage direct-drive screw element; 100% continuous duty cycle; oil-flooded lubrication. The NxB Series is FS-Curtis’s mid-range industrial fixed-speed screw line. Priced at $24,529 (Compressed Air Advisors, verified 2026-05-19). Dealer quote typically required for final pricing and NxGen warranty enrollment. No OEM product detail page was located on fscurtis.com at time of cataloging; specifications sourced from authorized distributor Compressed Air Advisors and the manufacturer’s NxB22 title seed. Gaps: motor RPM, full-load amperage, and sound level (dBA) not confirmed. The unit is rated for 100% duty cycle operation. The 120.0-gallon receiver tank is None-mounted. Motor: 30 HP, 208–230V 1-phase.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1708 units
- Peer class
- 35 · 30 HP
- SCFM @ 30 HP134cfm94median 120141+11.7% vs. median
- Average price$24,529$15,452median $24,529$35k0% vs. median
- CFM per HP4.47cfm/hp3.13median 44.7+11.7% vs. median
- Price per CFM$183$/scfm$120median $193$298-5.3% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
