What horsepower is the FS-Curtis FML30C98D4U air compressor?

The FS-Curtis FML30C98D4U is rated at 30 HP.

How much air does the FS-Curtis FML30C98D4U produce?

The FS-Curtis FML30C98D4U delivers 97 SCFM at 175 PSI.

What size tank does the FS-Curtis FML30C98D4U have?

The FS-Curtis FML30C98D4U has a 240-gallon horizontal tank.

Is the FS-Curtis FML30C98D4U single-stage or two-stage?

The FS-Curtis FML30C98D4U is a two-stage compressor.

What voltage does the FS-Curtis FML30C98D4U require?

The FS-Curtis FML30C98D4U runs on 230/1.

What is the duty cycle of the FS-Curtis FML30C98D4U?

The FS-Curtis FML30C98D4U has a 100% duty cycle.

What is the FS-Curtis FML30C98D4U best for?

The FS-Curtis FML30C98D4U is best suited for FS-Curtis FML30C98D4U reciprocating-industrial air compressor for industrial use.

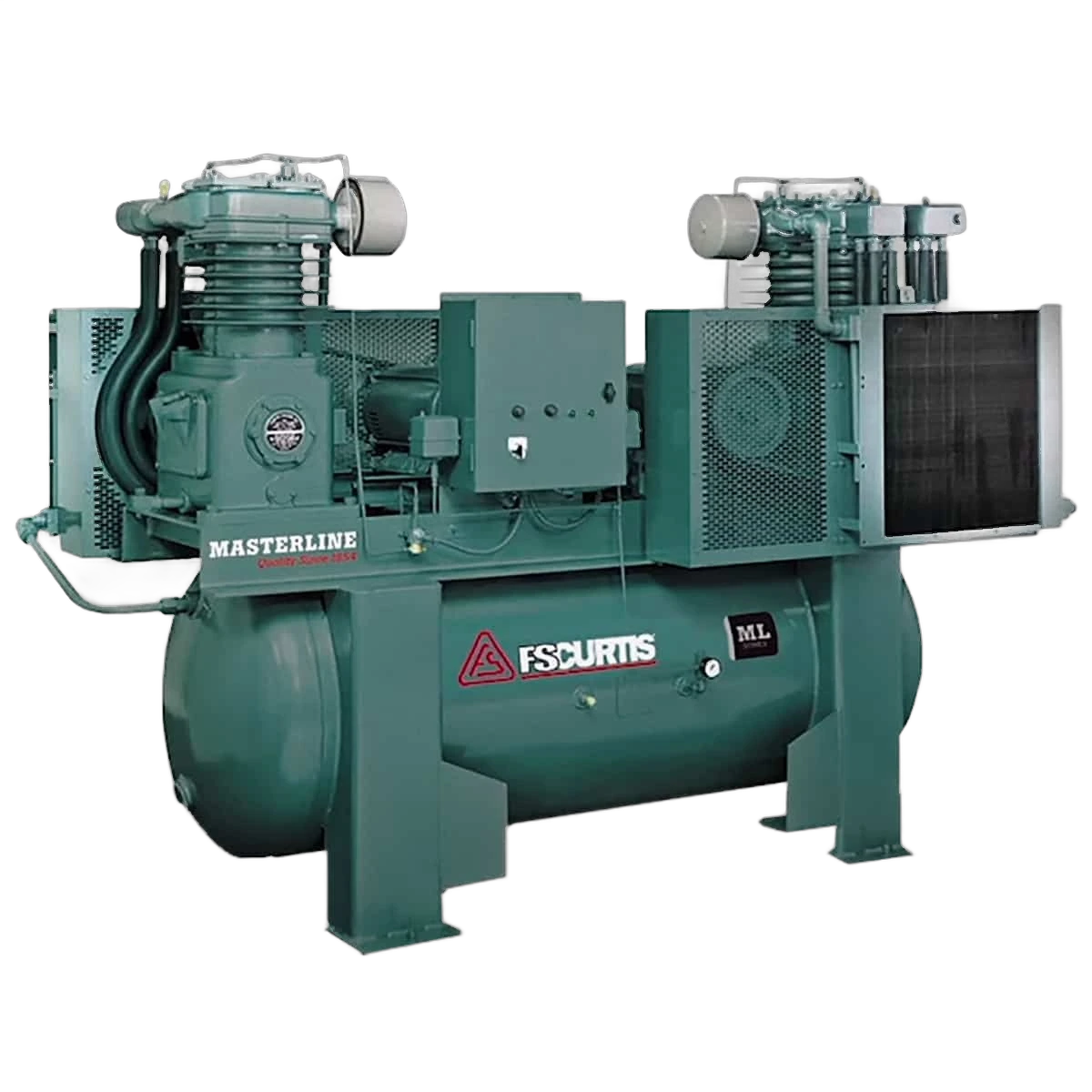

FS-Curtis FML30C98D4U – 30 HP 240-Gallon Air Compressor

FS-Curtis FML30C98D4U is a 30 HP two-stage duplex reciprocating industrial air compressor delivering 97 SCFM at 175 PSI on a 240-gallon horizontal tank, wired for 230V single-phase, pressure-lubricated. The D4U suffix designates a duplex configuration with two pump-motor assemblies on a shared receiver, enabling lead-lag operation, redundancy, and higher combined capacity than a single-pump unit. The 240-gallon horizontal tank provides substantial reserve volume for high-demand industrial applications. Pressure lubrication extends bearing and cylinder life for sustained intermittent-duty production service. 230V single-phase wiring accommodates shops without three-phase service. Key gaps: combined duplex SCFM output, duty cycle percentage, and OEM datasheet URL not confirmed in current record.

CFM

97 @ 175 PSI

Duty

100% continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

3.23CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$460$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM940 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM97 @ 175 PSI

CFM / HP3.23

Cut-in / out—

Tank fill—

Est. draw26.3 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $9,453

Maintenance · yearlyEst. $750

Savings with Compressor Controller · yearlyEst. $2,174–$3,970

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight4075 lb

FormHorizontal · 240 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 24 · 30 HP

Sizing & pricevs. 24 in class

SCFM @ 30 HP97cfm
77median 99.1203
-2.1% vs. median
Average price$44,649
$11,317median $20,778$45k
+114.9% vs. median

Efficiency vs. peersvs. 24 in class

CFM per HP3.23cfm/hp
2.58median 3.376.79
-4.1% vs. median
Price per CFM$460$/scfm
$116median $187$460
+145% vs. median
