What horsepower is the FS-Curtis FML25C98D4S air compressor?

The FS-Curtis FML25C98D4S is rated at 25 HP.

How much air does the FS-Curtis FML25C98D4S produce?

The FS-Curtis FML25C98D4S delivers 84 SCFM at 175 PSI.

What size tank does the FS-Curtis FML25C98D4S have?

The FS-Curtis FML25C98D4S has a 240-gallon horizontal tank.

Is the FS-Curtis FML25C98D4S single-stage or two-stage?

The FS-Curtis FML25C98D4S is a two-stage compressor.

What voltage does the FS-Curtis FML25C98D4S require?

The FS-Curtis FML25C98D4S runs on 230/1.

What is the duty cycle of the FS-Curtis FML25C98D4S?

The FS-Curtis FML25C98D4S has a 100% duty cycle.

What is the FS-Curtis FML25C98D4S best for?

The FS-Curtis FML25C98D4S is best suited for FS-Curtis FML25C98D4S reciprocating-industrial air compressor for industrial use.

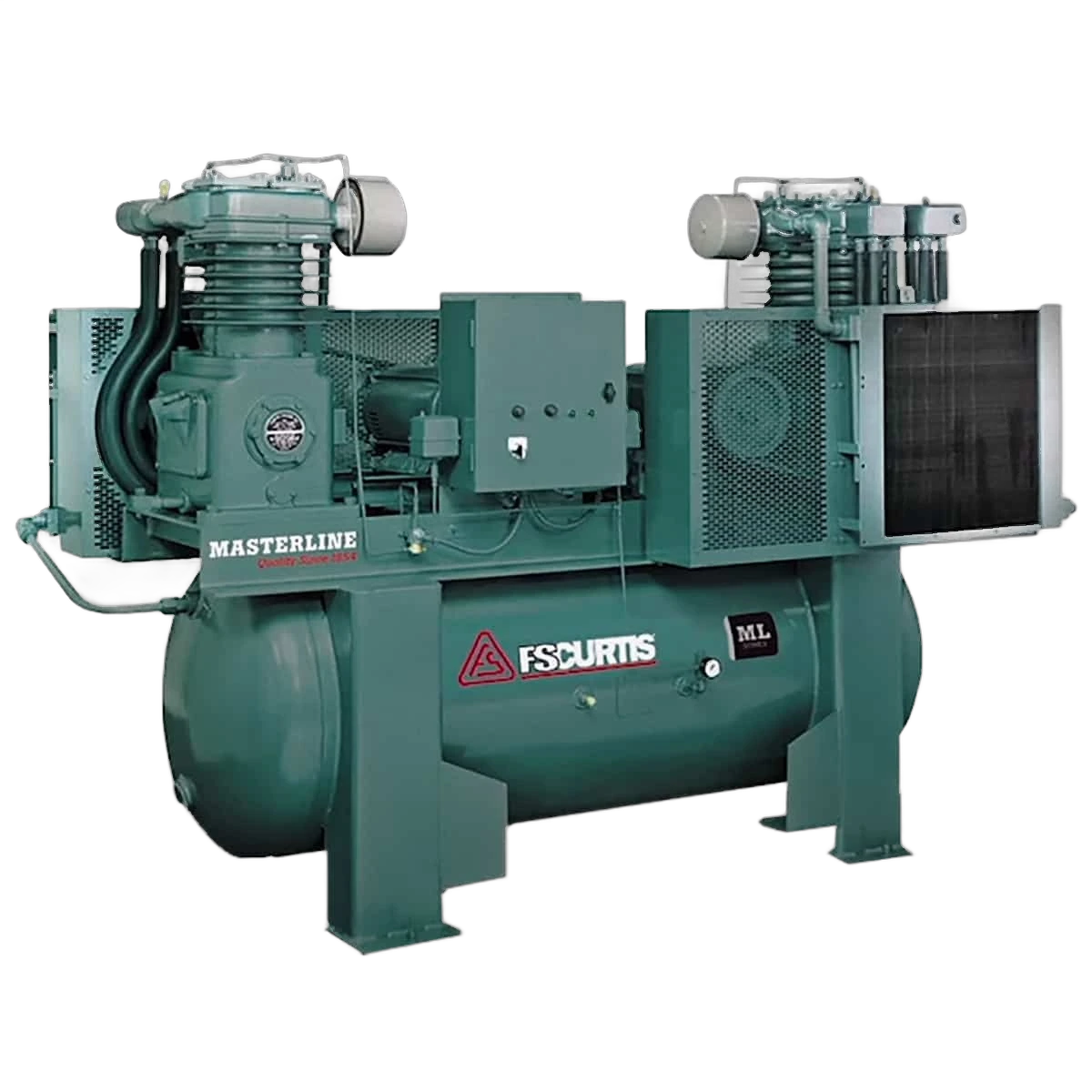

FS-Curtis FML25C98D4S – 25 HP 240-Gal 2-Stage Air Compressor

The FS-Curtis FML25C98D4S is a 25 HP duplex Masterline ML25 reciprocating compressor delivering a combined 164.8 SCFM @ 175 PSI from two C98 pumps on a 240-gallon horizontal ASME tank. Standard (non-UltraPack) package; Centro-Ring pressure lubrication; ~3,750 lbs; 98 x 52 x 74 in. 5-year warranty; Made in USA.

CFM

84 @ 175 PSI

Duty

100% continuous

Tank size

240 gal

Air output per horsepowerAirflow per motor HP

3.36CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$432$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM935 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM84 @ 175 PSI

CFM / HP3.36

Cut-in / out—

Tank fill—

Est. draw21.9 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $7,878

Maintenance · yearlyEst. $625

Savings with Compressor Controller · yearlyEst. $1,812–$3,309

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight3750 lb

FormHorizontal · 240 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise89 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 23 · 25 HP

Sizing & pricevs. 23 in class

SCFM @ 25 HP84cfm
82median 88192
-4.5% vs. median
Average price$36,300
$8,889median $17,207$50k
+111% vs. median

Efficiency vs. peersvs. 23 in class

CFM per HP3.36cfm/hp
3.3median 3.567.68
-5.6% vs. median
Price per CFM$432$/scfm
$99median $208$474
+107% vs. median
