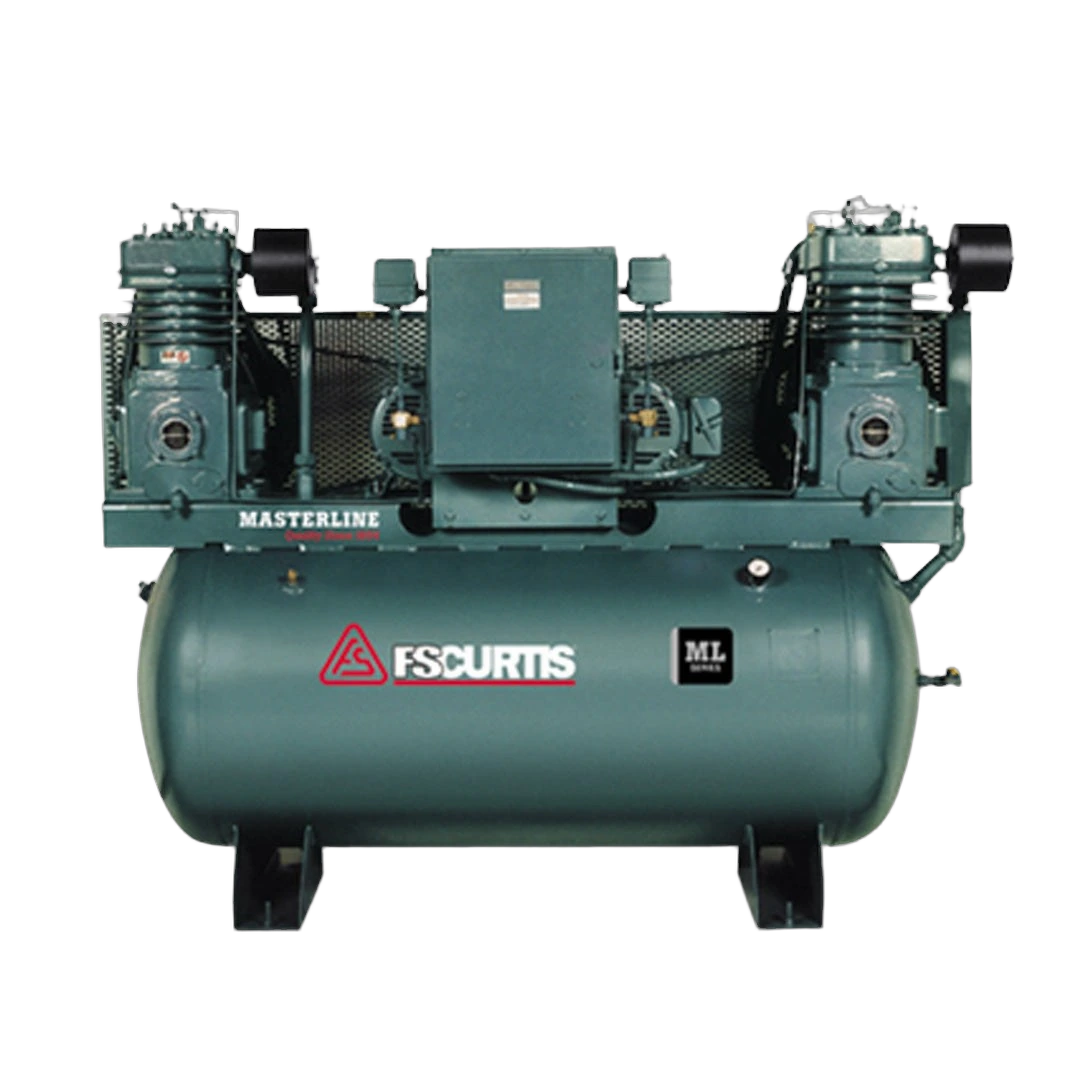

FS-Curtis FML25C98D4S-A9L1XX is a 25 HP two-stage reciprocating industrial air compressor delivering 84.0 SCFM @ 175 PSI on a 240-gallon horizontal tank, wired for 230V/1-phase, pressure-lubricated. Part of the FS-Curtis FML series, the C98 pump and D4S drive suffix indicate a high-output duplex or four-cylinder arrangement; A9L1XX encodes the 240-gallon frame/tank/voltage option. The 240-gallon receiver supports high peak demand and load-leveling in production environments. Key specifications: 25 HP motor, 84.0 SCFM at 175 PSI, 240-gallon horizontal receiver, 230V single-phase, two-stage, pressure-lubricated. Pricing at approximately $18,536. This configuration suits large fabrication shops and industrial plants with sustained high-flow demand at 175 PSI on single-phase power. Gaps: duty cycle, weight, RPM, D4S configuration details, and OEM datasheet URL not confirmed.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 23 · 25 HP
- SCFM @ 25 HP84cfm82median 88192-4.5% vs. median
- Average price$34,485$8,889median $17,207$50k+100.4% vs. median
- CFM per HP3.36cfm/hp3.3median 3.567.68-5.6% vs. median
- Price per CFM$411$/scfm$99median $208$474+96.7% vs. median
