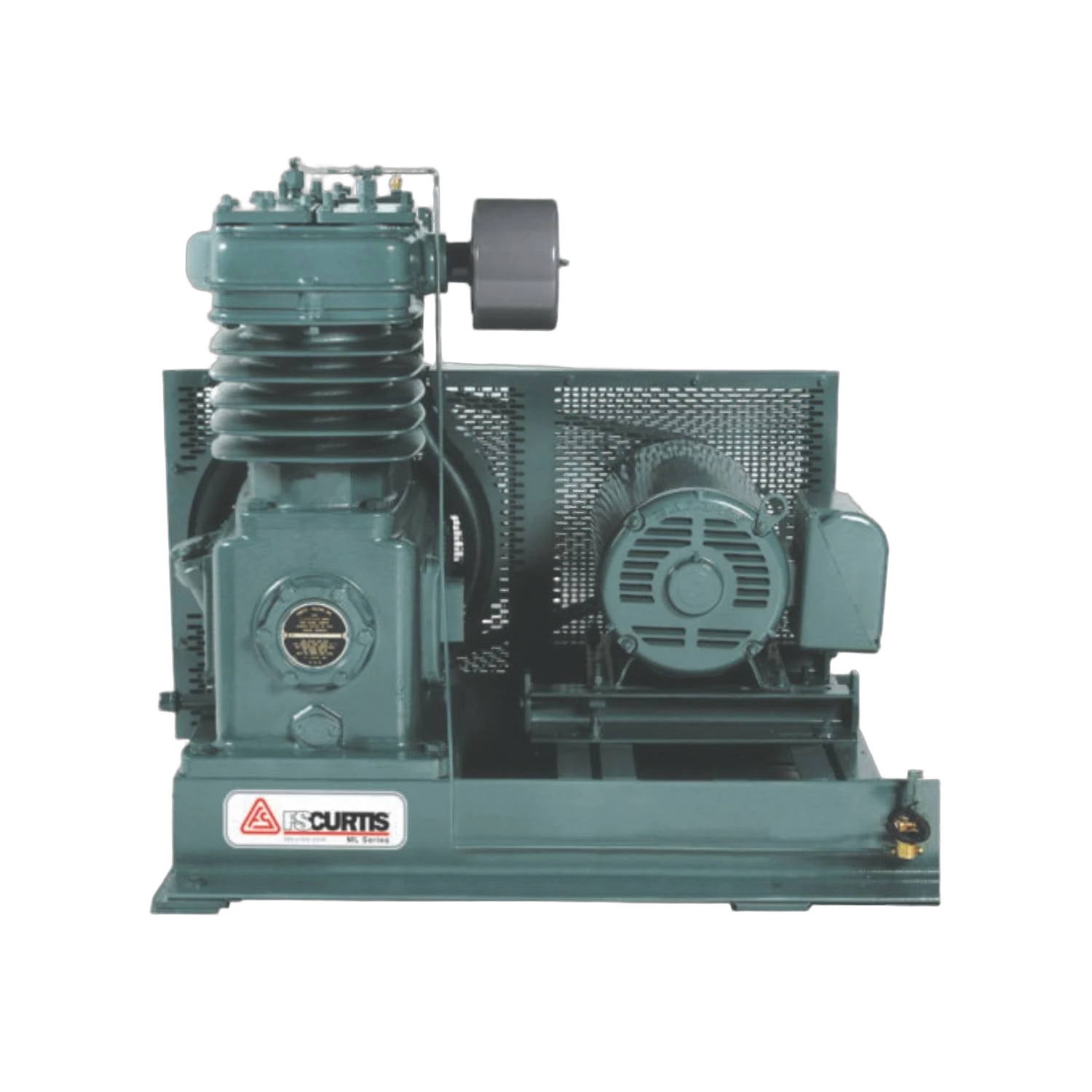

The FS-Curtis FML25C98BXS-A9L1XX is a 25 HP two-stage pressure-lubricated reciprocating (ML-Series C98 cast-iron pump) air compressor delivering 84 SCFM @ 175 PSI as a base-mounted air system: the BXS configuration ships on a baseplate with NO integrated receiver tank, to be paired with a separate ASME receiver on site. The 100% cast-iron pump with Centro-Ring pressure lubrication is rated for continuous industrial duty. Key specs: 25 HP, 84 SCFM @ 175 PSI, base-mount (no tank), two-stage pressure lubrication, approx 1,200 lb. Gaps: voltage/phase (distributors list 200/208 V 3-phase vs 230 V in legacy data), full-load amps, and noise level (dB) not confirmed from a primary FS-Curtis source.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1708 units
- Peer class
- 23 · 25 HP
- SCFM @ 25 HP84cfm82median 88192-4.5% vs. median
- Average price$16,545$8,397median $17,200$50k-3.8% vs. median
- CFM per HP3.36cfm/hp3.3median 3.567.68-5.6% vs. median
- Price per CFM$197$/scfm$94median $196$474-0% vs. median
