What horsepower is the FS-Curtis FML10D97BXS air compressor?

The FS-Curtis FML10D97BXS is rated at 10 HP.

How much air does the FS-Curtis FML10D97BXS produce?

The FS-Curtis FML10D97BXS delivers 39.8 SCFM at 175 PSI.

What size tank does the FS-Curtis FML10D97BXS have?

The FS-Curtis FML10D97BXS has a 120-gallon horizontal tank.

Is the FS-Curtis FML10D97BXS single-stage or two-stage?

The FS-Curtis FML10D97BXS is a two-stage compressor.

What voltage does the FS-Curtis FML10D97BXS require?

The FS-Curtis FML10D97BXS runs on 230/1.

What is the duty cycle of the FS-Curtis FML10D97BXS?

The FS-Curtis FML10D97BXS has a 100% duty cycle.

What is the FS-Curtis FML10D97BXS best for?

The FS-Curtis FML10D97BXS is best suited for Compressed air supply for heavy-duty plant and manufacturing operations.

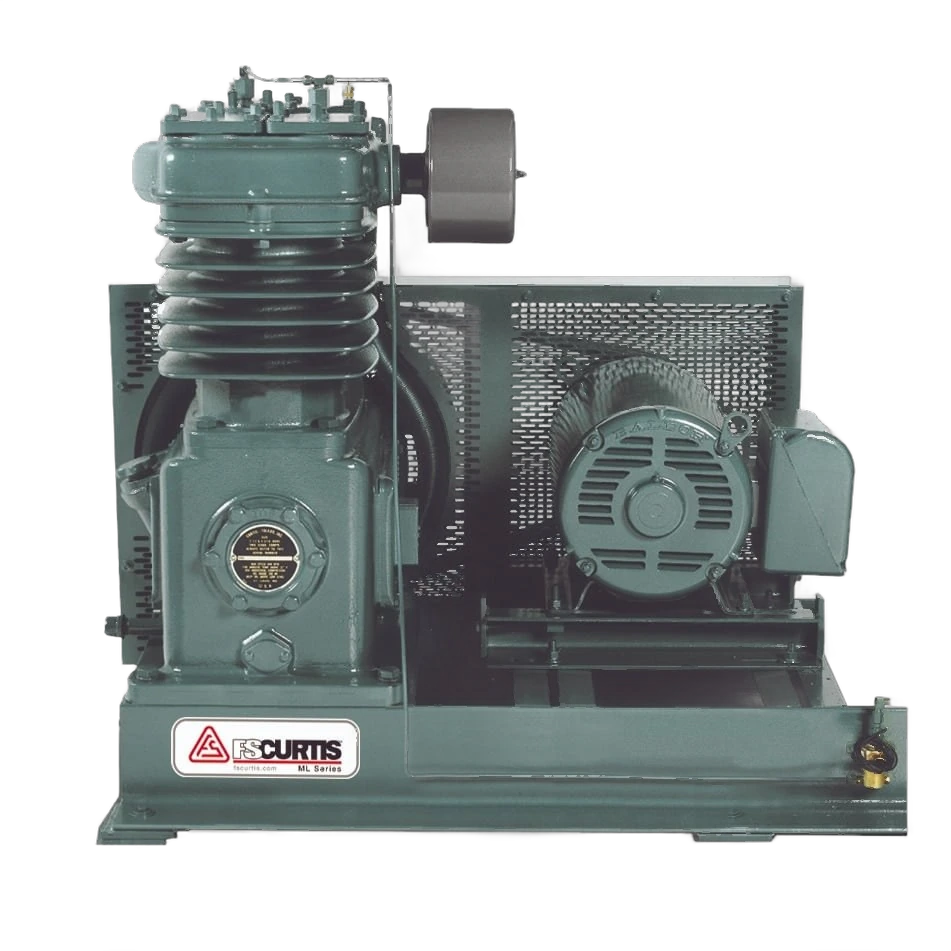

FS-Curtis FML10D97BXS – 10 HP 120-Gal 2-Stage Air Compressor

The FS-Curtis FML10D97BXS is a 10 HP two-stage pressure-lubricated reciprocating air compressor in the FS-Curtis Master Line (ML) Series. It delivers 39.8 SCFM at 175 PSI from a 2-cylinder D97 pump and a 120-gallon horizontal ASME-certified receiver tank.

CFM

39.8 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.98CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$217$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM710 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM39.8 @ 175 PSI

CFM / HP3.98

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight675 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP39.8cfm
17median 34.279
+16.4% vs. median
Average price$8,622
$3,400median $7,494$27k
+15.1% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP3.98cfm/hp
1.72median 3.427.96
+16.4% vs. median
Price per CFM$217$/scfm
$99median $210$517
+2.8% vs. median
