What horsepower is the FS-Curtis FML07C79H8S-A2L1XX air compressor?

The FS-Curtis FML07C79H8S-A2L1XX is rated at 7.5 HP.

How much air does the FS-Curtis FML07C79H8S-A2L1XX produce?

The FS-Curtis FML07C79H8S-A2L1XX delivers 28.7 SCFM at 175 PSI.

What size tank does the FS-Curtis FML07C79H8S-A2L1XX have?

The FS-Curtis FML07C79H8S-A2L1XX has a 80-gallon horizontal tank.

Is the FS-Curtis FML07C79H8S-A2L1XX single-stage or two-stage?

The FS-Curtis FML07C79H8S-A2L1XX is a two-stage compressor.

What voltage does the FS-Curtis FML07C79H8S-A2L1XX require?

The FS-Curtis FML07C79H8S-A2L1XX runs on 230/1.

What is the duty cycle of the FS-Curtis FML07C79H8S-A2L1XX?

The FS-Curtis FML07C79H8S-A2L1XX has a 100% duty cycle.

What is the FS-Curtis FML07C79H8S-A2L1XX best for?

The FS-Curtis FML07C79H8S-A2L1XX is best suited for FS-Curtis FML07C79H8S-A2L1XX reciprocating-industrial air compressor for industrial use.

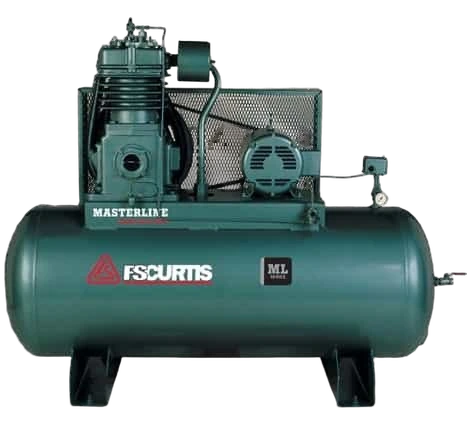

FS-Curtis FML07C79H8S-A2L1XX – 7.5 HP 80-Gal Air Compressor

FS-Curtis FML07C79H8S-A2L1XX is a 7.50-HP two-stage pressure reciprocating compressor (FML series) delivering 28.70 SCFM at 175 PSI on a 80.0-gallon horizontal simplex tank, wired for 230/1. Rated at 100% duty cycle. List price approximately $7,698.80. Compact simplex unit for light-to-medium shop air, maintenance bays, and intermittent industrial or contractor applications.

7.50

CFM

28.7 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.83CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$268$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM28.7 @ 175 PSI

CFM / HP3.83

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight650 lb

FormHorizontal · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 181 · 7.5 HP

Sizing & pricevs. 181 in class

SCFM @ 7.5 HP28.7cfm
20median 2457
+19.6% vs. median
Average price$7,699
$1,698median $5,117$19k
+50.5% vs. median

Efficiency vs. peersvs. 181 in class

CFM per HP3.83cfm/hp
2.67median 3.27.65
+19.6% vs. median
Price per CFM$268$/scfm
$73median $208$632
+28.4% vs. median
