What horsepower is the FS-Curtis FML05D96V8U air compressor?

The FS-Curtis FML05D96V8U is rated at 5 HP.

How much air does the FS-Curtis FML05D96V8U produce?

The FS-Curtis FML05D96V8U delivers 19.1 SCFM at 175 PSI.

What size tank does the FS-Curtis FML05D96V8U have?

The FS-Curtis FML05D96V8U has a 80-gallon vertical tank.

Is the FS-Curtis FML05D96V8U single-stage or two-stage?

The FS-Curtis FML05D96V8U is a two-stage compressor.

What voltage does the FS-Curtis FML05D96V8U require?

The FS-Curtis FML05D96V8U runs on 230/1.

What is the duty cycle of the FS-Curtis FML05D96V8U?

The FS-Curtis FML05D96V8U has a 100% duty cycle.

What is the FS-Curtis FML05D96V8U best for?

The FS-Curtis FML05D96V8U is best suited for FS-Curtis FML05D96V8U reciprocating-industrial air compressor for industrial use.

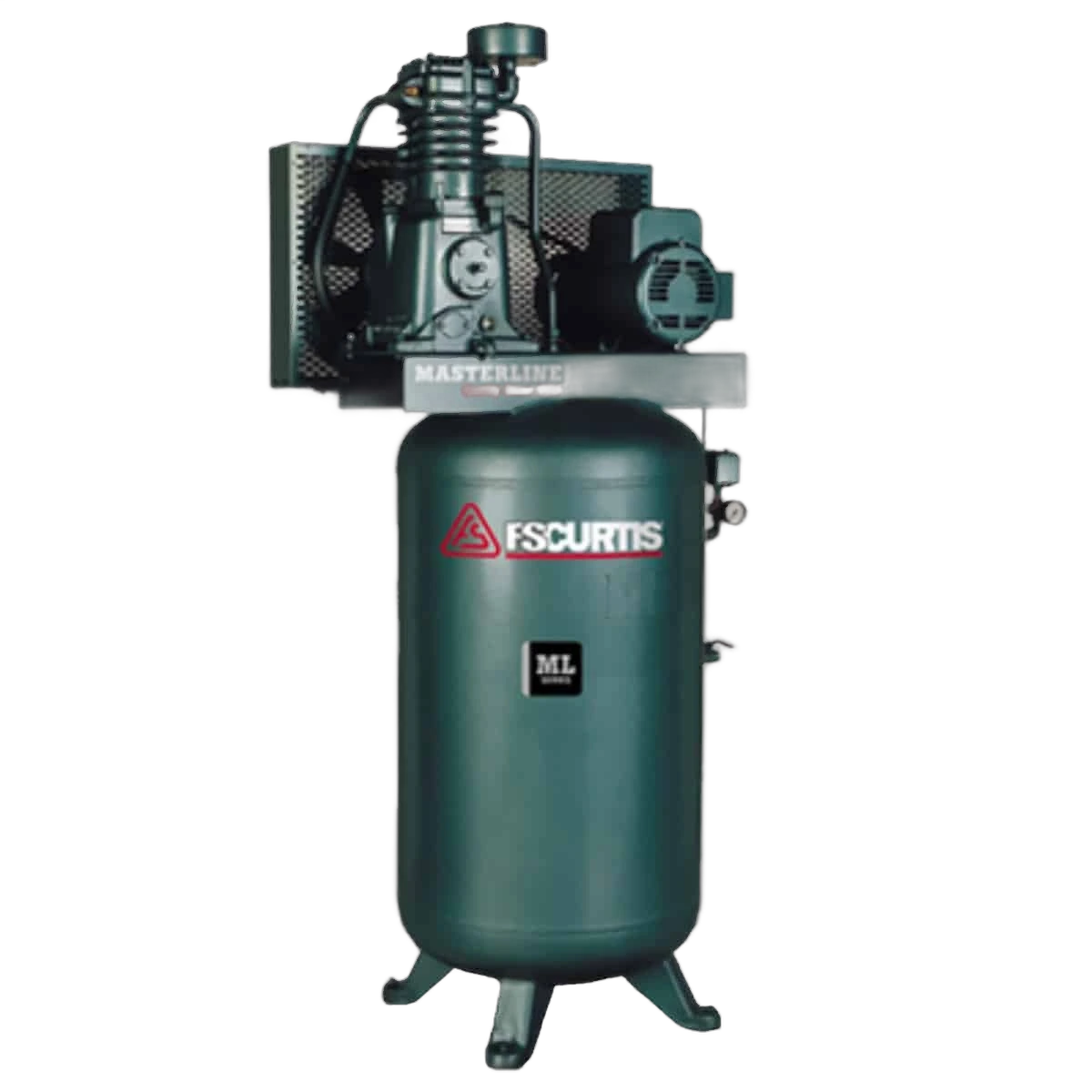

FS-Curtis FML05D96V8U – 5 HP 80-Gal 2-Stage Air Compressor

The FS-Curtis FML05D96V8U is a 5 HP simplex Masterline reciprocating compressor delivering 19.1 SCFM @ 175 PSI on an 80-gallon vertical ASME tank. D96 two-stage pump at 620 RPM; 78 dBA; 625 lbs; 39 x 32 x 78 in. UltraPack; 5-year UltraShield warranty; Made in USA.

CFM

19.1 @ 175 PSI

Duty

100% continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.82CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$350$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM620 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM19.1 @ 175 PSI

CFM / HP3.82

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight650 lb

FormVertical · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise78 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 157 · 5 HP

Sizing & pricevs. 157 in class

SCFM @ 5 HP19.1cfm
10median 17.238
+11% vs. median
Average price$6,688
$962median $4,187$17k
+59.7% vs. median

Efficiency vs. peersvs. 157 in class

CFM per HP3.82cfm/hp
2.08median 3.447.64
+11% vs. median
Price per CFM$397$/scfm
$77median $230$864
+72.4% vs. median
