What horsepower is the FS-Curtis FML05D96D1U air compressor?

The FS-Curtis FML05D96D1U is rated at 5 HP.

How much air does the FS-Curtis FML05D96D1U produce?

The FS-Curtis FML05D96D1U delivers 19.1 SCFM at 175 PSI.

What size tank does the FS-Curtis FML05D96D1U have?

The FS-Curtis FML05D96D1U has a 120-gallon horizontal tank.

Is the FS-Curtis FML05D96D1U single-stage or two-stage?

The FS-Curtis FML05D96D1U is a two-stage compressor.

What voltage does the FS-Curtis FML05D96D1U require?

The FS-Curtis FML05D96D1U runs on 230/1.

What is the duty cycle of the FS-Curtis FML05D96D1U?

The FS-Curtis FML05D96D1U has a 100% duty cycle.

What is the FS-Curtis FML05D96D1U best for?

The FS-Curtis FML05D96D1U is best suited for FS-Curtis FML05D96D1U reciprocating-industrial air compressor for industrial use.

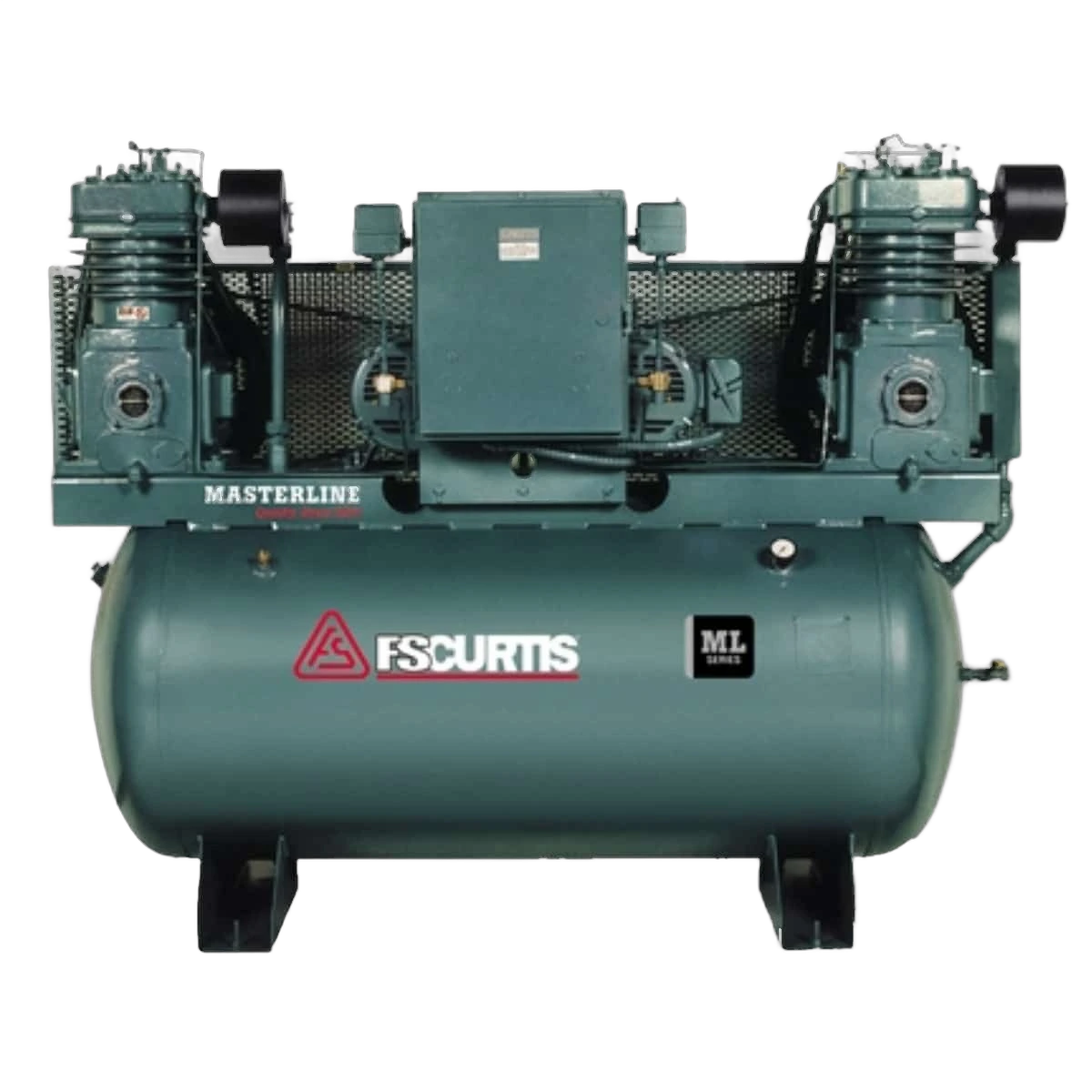

FS-Curtis FML05D96D1U – 5 HP 120-Gal 2-Stage Air Compressor

The FS-Curtis FML05D96D1U is a 5 HP duplex Masterline reciprocating compressor with two D96 pumps delivering 38.2 SCFM @ 175 PSI on a 120-gallon ASME tank (83 x 31 x 57 in, ~1,095 lbs). UltraPack includes alternator panel, aftercooler, auto drain, low-oil shutdown. 5-year UltraShield warranty; Made in USA.

CFM

19.1 @ 175 PSI

Duty

100% continuous

Tank size

120 gal

Air output per horsepowerAirflow per motor HP

3.82CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$865$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM755 rpm

Lubricationpressure

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM19.1 @ 175 PSI

CFM / HP3.82

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

Savings with Compressor Controller · yearlyEst. $362–$662

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight1095 lb

FormHorizontal · 120 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise78 dBA

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 157 · 5 HP

Sizing & pricevs. 157 in class

SCFM @ 5 HP19.1cfm
10median 17.238
+11% vs. median
Average price$19,854
$962median $4,178$17k
+375.1% vs. median

Efficiency vs. peersvs. 157 in class

CFM per HP3.82cfm/hp
2.08median 3.447.64
+11% vs. median
Price per CFM$865$/scfm
$77median $228$864
+279% vs. median
