What horsepower is the FS-Curtis FES04A6X_R air compressor?

The FS-Curtis FES04A6X_R is rated at 5 HP.

How much air does the FS-Curtis FES04A6X_R produce?

The FS-Curtis FES04A6X_R delivers 12.2 SCFM at 145 PSI.

What size tank does the FS-Curtis FES04A6X_R have?

The FS-Curtis FES04A6X_R has a 60-gallon horizontal tank.

Is the FS-Curtis FES04A6X_R single-stage or two-stage?

The FS-Curtis FES04A6X_R is a two-stage compressor.

What voltage does the FS-Curtis FES04A6X_R require?

The FS-Curtis FES04A6X_R runs on 230/1.

Is the FS-Curtis FES04A6X_R oil-free or oil-lubricated?

The FS-Curtis FES04A6X_R is oil-free.

What is the duty cycle of the FS-Curtis FES04A6X_R?

The FS-Curtis FES04A6X_R has a 100% duty cycle.

What is the FS-Curtis FES04A6X_R best for?

The FS-Curtis FES04A6X_R is best suited for Clean-air point-of-use supply requiring oil-free air (lab, dental, food, electronics).

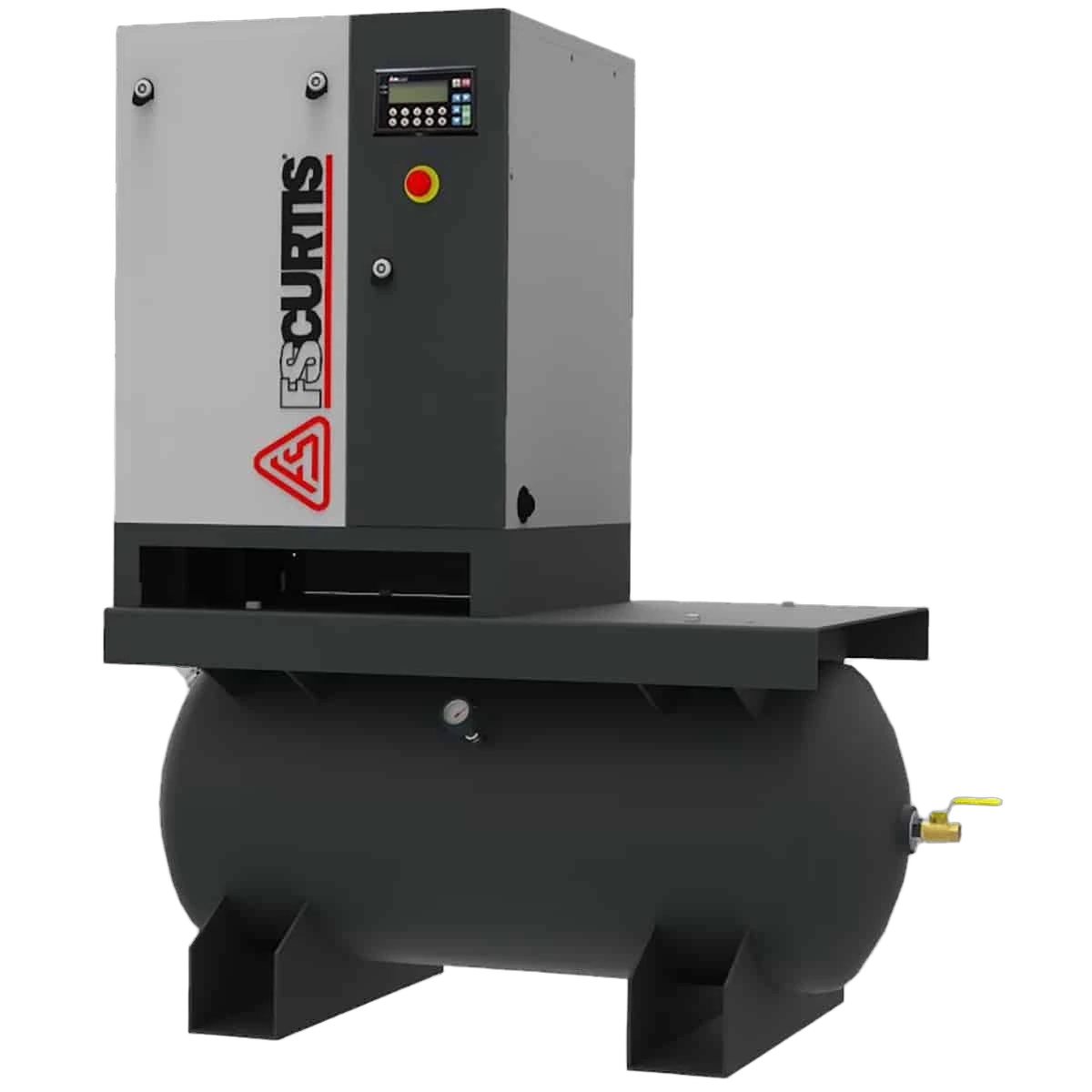

FS-Curtis FES04A6X_R – 5 HP 60-Gallon Scroll Air Compressor

The FS-Curtis FES04A6X_R is an ES04 Eco-Scroll oil-free scroll air compressor rated 5 HP (4 kW). It delivers 12.2 SCFM at 145 PSI (145 PSI max) on a 60-gallon ASME tank, runs 230V 3-phase, and produces ISO 8573-1 Class 0 oil-free air at 57 dBA.

CFM

12.2 @ 145 PSI

Duty

100% continuous

Tank size

60 gal

Air output per horsepowerAirflow per motor HP

2.44CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage scroll

70%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$941$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage scroll

Cylinder—

Pump RPM—

Lubricationoil-free

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM12.2 @ 145 PSI

CFM / HP2.44

Cut-in / out—

Tank fill—

Est. draw4.4 kW

COST & MAINTENANCE

Electric · yearlyEst. $1,576

Maintenance · yearlyEst. $125

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight708 lb

FormHorizontal · 60 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 12 · 5 HP

Sizing & pricevs. 12 in class

SCFM @ 5 HP12.2cfm
12median 14.515
-15.9% vs. median
Average price$11,486
$5,557median $11,484$13k
0% vs. median

Efficiency vs. peersvs. 12 in class

CFM per HP2.44cfm/hp
2.44median 2.93.04
-15.9% vs. median
Price per CFM$941$/scfm
$365median $792$1,043
+18.9% vs. median
