What horsepower is the FS-Curtis FCT75 air compressor?

The FS-Curtis FCT75 is rated at 7.5 HP.

How much air does the FS-Curtis FCT75 produce?

The FS-Curtis FCT75 delivers 29 SCFM at 175 PSI.

What size tank does the FS-Curtis FCT75 have?

The FS-Curtis FCT75 has a 80-gallon horizontal tank.

Is the FS-Curtis FCT75 single-stage or two-stage?

The FS-Curtis FCT75 is a two-stage compressor.

What voltage does the FS-Curtis FCT75 require?

The FS-Curtis FCT75 runs on 230/1.

What is the FS-Curtis FCT75 best for?

The FS-Curtis FCT75 is best suited for FS-Curtis FCT75 reciprocating-industrial air compressor for industrial use.

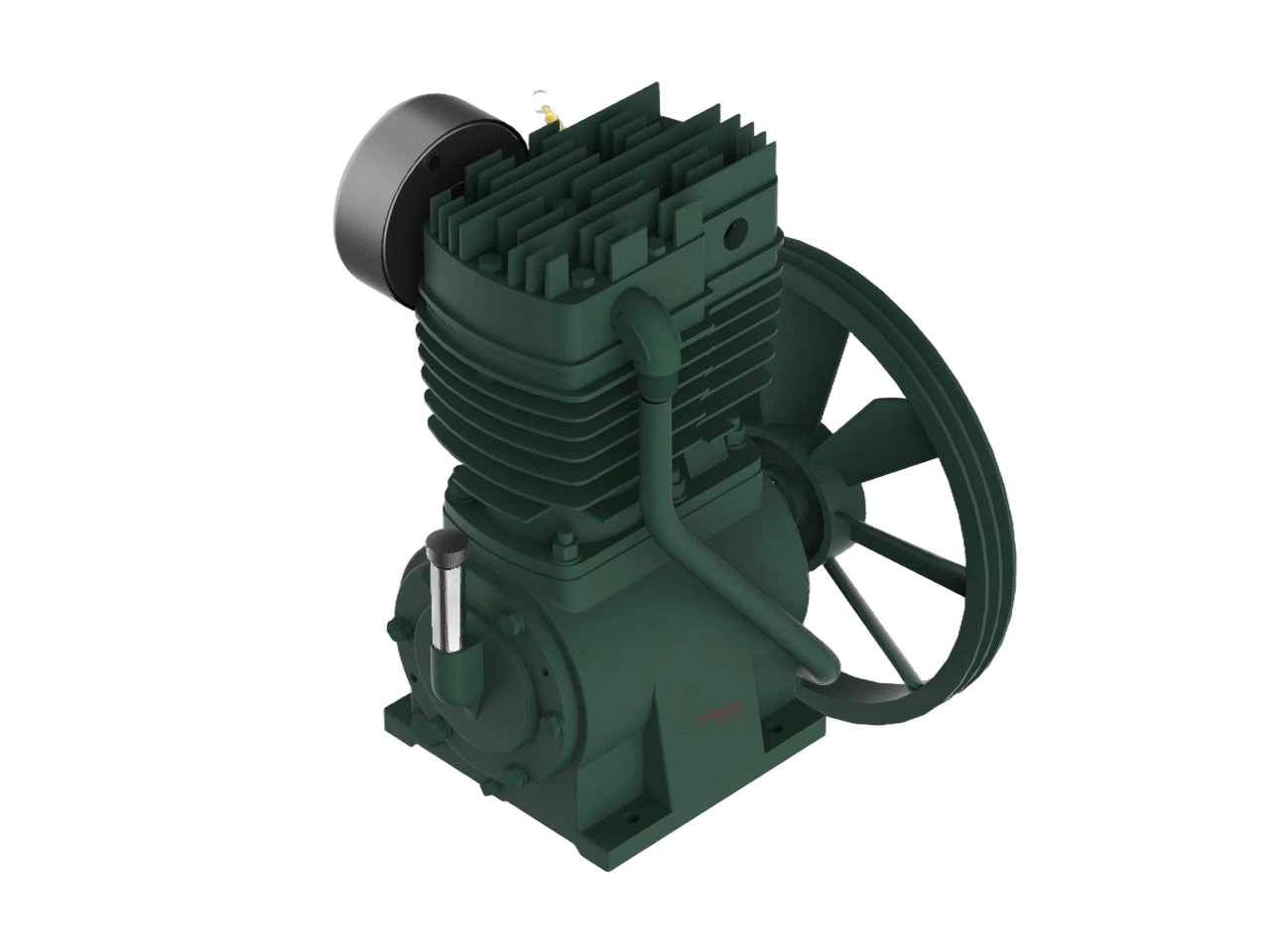

FS-Curtis FCT75 – 7.5 HP 80-Gallon 2-Stage Air Compressor

The FS-Curtis FCT75 is a bare replacement reciprocating compressor pump from the CT Series. Rated for 5 to 7.5 HP drivers, it delivers up to 29.0 CFM at 175 PSI. It features a rugged 100% cast-iron construction and reliable splash lubrication for professional shop rebuilds or custom compressor systems.

7.50

CFM

29 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

3.87CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$69$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM29 @ 175 PSI

CFM / HP3.87

Cut-in / out—

Tank fill—

Est. draw6.6 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $2,363

Maintenance · yearlyEst. $188

Savings with Compressor Controller · yearlyEst. $544–$993

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight143 lb

FormHorizontal · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1708 units
Peer class: 182 · 7.5 HP

Sizing & pricevs. 182 in class

SCFM @ 7.5 HP29cfm
20median 2457
+20.8% vs. median
Average price$2,110
$1,698median $5,117$19k
-58.8% vs. median

Efficiency vs. peersvs. 182 in class

CFM per HP3.87cfm/hp
2.67median 3.27.65
+20.8% vs. median
Price per CFM$69$/scfm
$69median $211$632
-67.3% vs. median

Where this is sold

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Alamo Equipment

compressorsnow.com

Compressed Air Advisors
