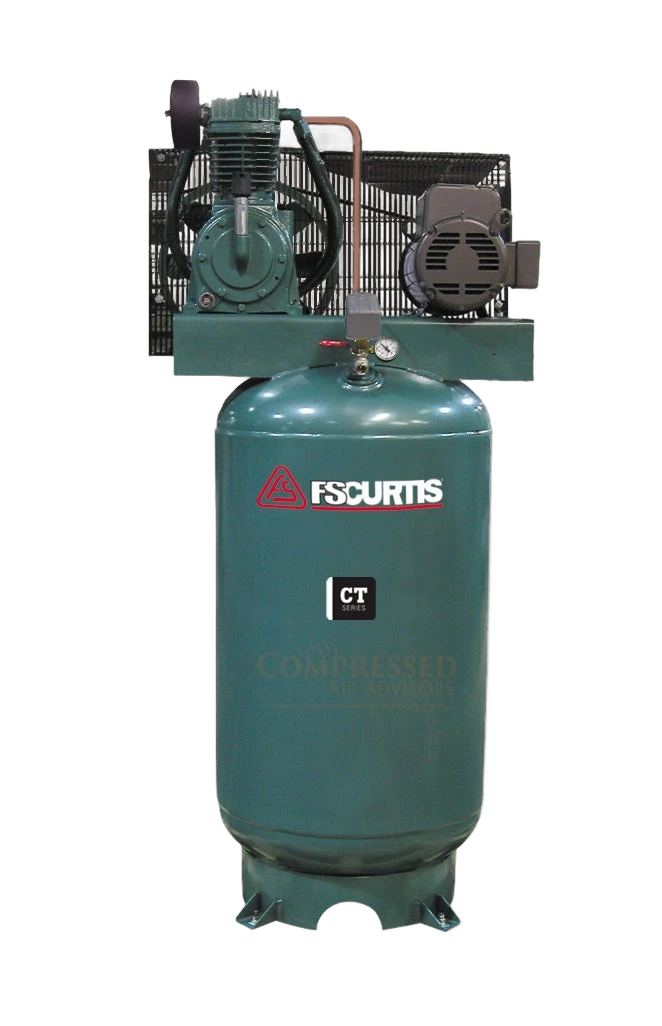

FS-Curtis FCT05C55V6X-A2L1XX is a 5 HP two-stage vertical reciprocating air compressor from the CT Series, delivering 15.9 SCFM at 175 PSI on a 60-gallon vertical ASME tank, wired for 230V single-phase. The simplex cast-iron pump is splash-lubricated and includes built-in thermal overload protection — no magnetic starter required. At 475 lbs, it fits a compact shop footprint. Suited for automotive service bays, fabrication shops, and production lines requiring reliable continuous two-stage piston air. The CT Series is FS-Curtis’s commercial-grade reciprocating line. Cut-in/cut-out: standard 135/175 PSI. Confirm final SCFM rating against the FS-Curtis CT Series datasheet.
Where this sits in the catalog
Histograms below: highlighted bar marks this unit’s bucket.
- Catalog
- 1655 units
- Peer class
- 157 · 5 HP
- SCFM @ 5 HP15.9cfm10median 17.238-7.6% vs. median
- Average price$2,613$962median $4,178$17k-37.5% vs. median
- CFM per HP3.18cfm/hp2.08median 3.447.64-7.6% vs. median
- Price per CFM$208$/scfm$77median $228$864-8.9% vs. median
Price history
Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.
