What horsepower is the FS-Curtis FCC05S50H8S-A4F1XX air compressor?

The FS-Curtis FCC05S50H8S-A4F1XX is rated at 10 HP.

How much air does the FS-Curtis FCC05S50H8S-A4F1XX produce?

The FS-Curtis FCC05S50H8S-A4F1XX delivers 17.3 SCFM at 175 PSI.

What size tank does the FS-Curtis FCC05S50H8S-A4F1XX have?

The FS-Curtis FCC05S50H8S-A4F1XX has a 80-gallon horizontal tank.

Is the FS-Curtis FCC05S50H8S-A4F1XX single-stage or two-stage?

The FS-Curtis FCC05S50H8S-A4F1XX is a two-stage compressor.

What voltage does the FS-Curtis FCC05S50H8S-A4F1XX require?

The FS-Curtis FCC05S50H8S-A4F1XX runs on 230/1.

What is the FS-Curtis FCC05S50H8S-A4F1XX best for?

The FS-Curtis FCC05S50H8S-A4F1XX is best suited for FS-Curtis FCC05S50H8S-A4F1XX reciprocating-industrial air compressor for industrial use.

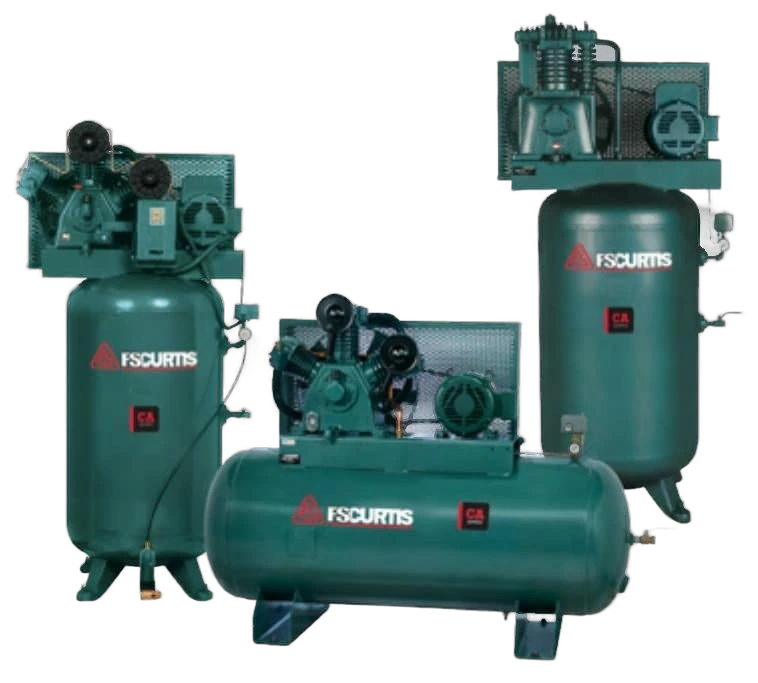

FS-Curtis FCC05S50H8S-A4F1XX – 10 HP 80-Gal Air Compressor

FS-Curtis FCC05S50H8S-A4F1XX is a 10 HP 17.3 CFM at 175 PSI 2-stage reciprocating compressor with a 80-gallon receiver tank, operating at 230/1. Shipping weight is 485 lb. This unit belongs to the FS-Curtis FCC series. Key specifications: Output: 17.3 SCFM @ 175 PSI; Motor: 5 HP, 230V/1-phase; Tank: 80-gallon horizontal. Suitable for auto shop, body shop, or light manufacturing.

CFM

17.3 @ 175 PSI

Duty

— continuous

Tank size

80 gal

Air output per horsepowerAirflow per motor HP

1.73CFM/HP

Poor 2.8Typical 3.15Good 3.5

Isentropic efficiencyClass median · 2-stage piston

67%

Poor <50Good 70Best 92

Price per cubic foot · minuteVerified retailer price

$459$/SCFM

Good $180Typical $211High $260

PUMP & DRIVE

Stages2-stage recip

Cylinder—

Pump RPM—

Lubricationsplash

Oil—

Sump—

Pump life—

Pump material—

Head material—

Intercooler—

PERFORMANCE

Catalog CFM17.3 @ 175 PSI

CFM / HP1.73

Cut-in / out—

Tank fill—

Est. draw8.8 kW

COST & MAINTENANCE

Compressor Controller ROI calc · $0.14/kWh · 1920 hr/yr · 70% motor efficiency · HP×1.10 sizing · savings 23–42% of electric

Electric · yearlyEst. $3,151

Maintenance · yearlyEst. $250

Savings with Compressor Controller · yearlyEst. $725–$1,323

ELECTRICAL & FORM

Serviceelectric

Voltage230/1

Amps—

Motor—

Motor RPM—

Control—

Starter—

Weight485 lb

FormHorizontal · 80 gal

BUILD & ENVIRONMENT

Air outlet—

Drain—

Drain outlet—

ASME tank—

Made in USA—

Noise—

Op. temp—

Dimensions—

Ship weight—

Warranty—

Where this sits in the catalog

Histograms below: highlighted bar marks this unit’s bucket.

Catalog: 1655 units
Peer class: 127 · 10 HP

Sizing & pricevs. 127 in class

SCFM @ 10 HP17.3cfm
17median 34.279
-49.4% vs. median
Average price$7,946
$3,555median $7,494$27k
+6% vs. median

Efficiency vs. peersvs. 127 in class

CFM per HP1.73cfm/hp
1.72median 3.427.96
-49.4% vs. median
Price per CFM$459$/scfm
$103median $210$517
+117.9% vs. median

Where this is sold

Compressors Now
Verified 2 months ago
$7,946
Lowest

Find an installer / dealer near youAuthorized FS-Curtis dealers · search by ZIP

Price history

Showing the current verified price for each retailer. As the price-tracking worker collects new readings, dots will appear along each line.

Compressors Now
